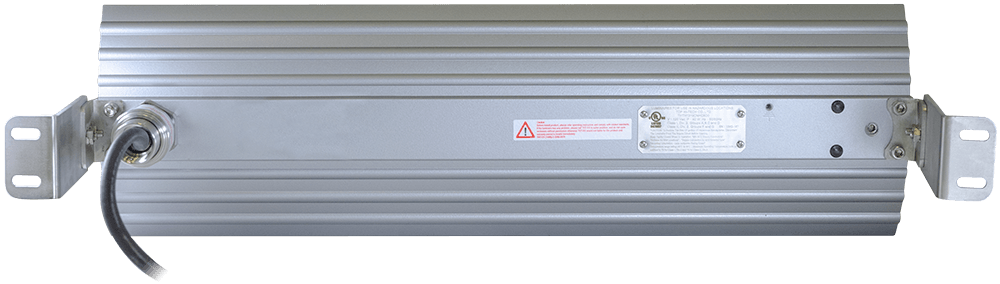

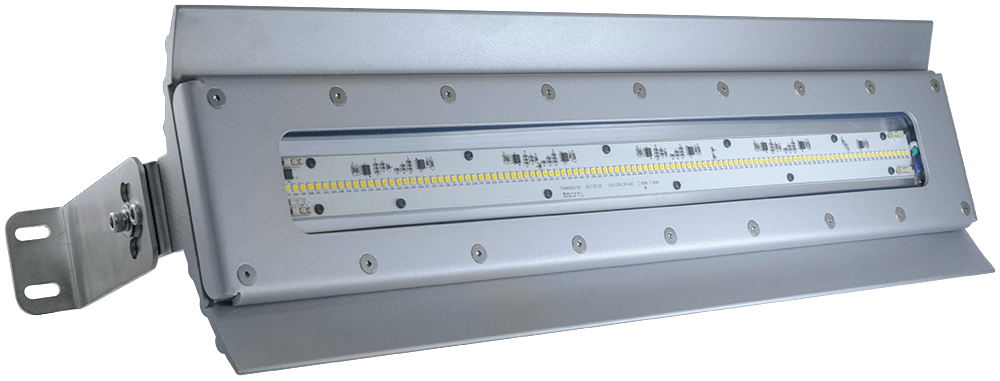

L1319 (SMD) Explosion-Proof LED Linear Light

Brand: Top Hi-Tech Inc.
Specifications:
  • Volt.: 110 V / 120 V / 220 V / 277 V AC
  • Watt.: 40 W / 60 W
  • Amps: 40 W (0.14 ~ 0.36 A) / 60 W (0.22 ~ 0.55 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature:
  • -40° C ~ +55° C, T6
  • CID1: -40° C ~ +55° C, T6 / CIID2: +55° C, T6 (UL Certification)
Degree of Protection - IP68 / NEMA 6P
IECEx Certification
  • Ex db IIC T6 Gb
  • Ex tb IIIC T85˚C Db
ATEX Certification
  • II 2 G Ex db IIC T6 Gb
  • II 2 D Ex tb IIIC T85˚C Db
 UL Certification
  • UL844 - Class I, Division 1 (Group B, C and D) / Class II, Division 2 (Group F and G) / Class III
  • UL1598
CML Certification
  • Ex d IIC T6 Gb
  • Ex tb IIIC T85˚C Db
TS Certification
  • Ex d IIC T6 Gb
  • Ex tb IIIC T85˚C Db
Features
  • Die Cast aluminum fixture for LED heat dissipation and thermal control.
  • Suitable for tunnel installation
  • Heat Resistance 85° C to 100° C
 Applicable Location:
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 1 (Group B, C and D)
  • Class II, Division 2 (Group F and G)
  • Class III
show more
Images are representations only.
Specifications:
  • Volt.: 110 V / 120 V / 220 V / 277 V AC
  • Watt.: 40 W / 60 W
  • Amps: 40 W (0.14 ~ 0.36 A) / 60 W (0.22 ~ 0.55 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature:
  • -40° C ~ +55° C, T6
  • CID1: -40° C ~ +55° C, T6 / CIID2: +55° C, T6 (UL Certification)
Degree of Protection - IP68 / NEMA 6P
IECEx Certification
  • Ex db IIC T6 Gb
  • Ex tb IIIC T85˚C Db
ATEX Certification
  • II 2 G Ex db IIC T6 Gb
  • II 2 D Ex tb IIIC T85˚C Db
 UL Certification
  • UL844 - Class I, Division 1 (Group B, C and D) / Class II, Division 2 (Group F and G) / Class III
  • UL1598
CML Certification
  • Ex d IIC T6 Gb
  • Ex tb IIIC T85˚C Db
TS Certification
  • Ex d IIC T6 Gb
  • Ex tb IIIC T85˚C Db
Features
  • Die Cast aluminum fixture for LED heat dissipation and thermal control.
  • Suitable for tunnel installation
  • Heat Resistance 85° C to 100° C
 Applicable Location:
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 1 (Group B, C and D)
  • Class II, Division 2 (Group F and G)
  • Class III

Specifications

Approvals & Certifications

  • ATEX Ex
  • cULus
  • IECEx
  • TS

Beam

  • Beam Angle ≥ 110°

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP67
  • IP68
  • NEMA 6
  • NEMA 6P

Frequency

  • 50/60 Hz

Lens

  • Tempered Glass - IEC Standards Impact-Resistant > 4 Joule

Lumens

  • Lum/Watt: ≥ 100 (Cool White), ≥ 90 (Warm White)

Operating Temperature

  • -20° to 55° C (-4° to 131° F)

Screw Material

  • Stainless Steel

Voltage

  • 120 V / 277 V / 480 V AC

Wattage

  • 40 W (0.14 to 0.36 A)/60 W (0.22 to 0.55 A)
