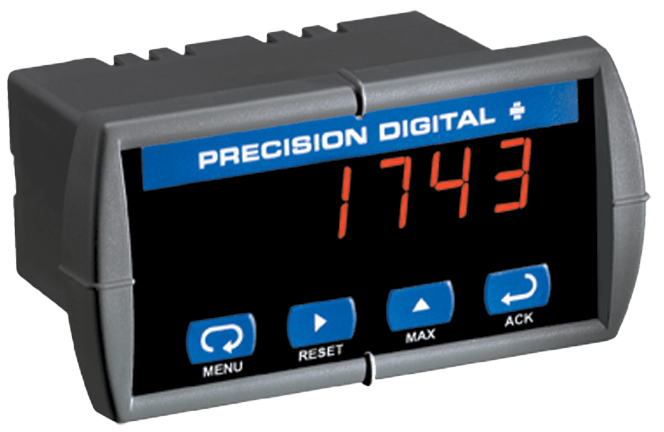

PD743 Temperature Meter

Brand: Precision Digital Corporation
The Sabre T PD743 temperature meter combines operational simplicity with high end features to deliver the perfect low-cost digital panel meter for display only applications.

The PD743’s menu structure is easy to navigate because the only selections are for input and temperature units; there are no other menu choices to add confusion during the setup process.

Despite being a low-cost meter, the PD743 is still packed with many features typically found only on more expensive meters, such as a NEMA 4X front, universal power supply, display to 2300 °F for type K thermocouple, UL listing, and CE marking.
Features
  • J, K, T, E Thermocouple & 100 Ω Pt RTD
  • Pre-Calibrated for All Input Types
  • NEMA 4X, IP65 Front
  • Shallow Depth 1/8 DIN Case 3.2" Behind Panel
  • 4 Digit Display, 0.56" (14 mm) High, Red LEDs
  • Easy Front Panel Programming
  • Maximum/Minimum Display
  • Universal Power Supply 85-265 VAC
  • 12-36 VDC/12-24 VAC Power Option
show more
The Sabre T PD743 temperature meter combines operational simplicity with high end features to deliver the perfect low-cost digital panel meter for display only applications.

The PD743’s menu structure is easy to navigate because the only selections are for input and temperature units; there are no other menu choices to add confusion during the setup process.

Despite being a low-cost meter, the PD743 is still packed with many features typically found only on more expensive meters, such as a NEMA 4X front, universal power supply, display to 2300 °F for type K thermocouple, UL listing, and CE marking.
Features
  • J, K, T, E Thermocouple & 100 Ω Pt RTD
  • Pre-Calibrated for All Input Types
  • NEMA 4X, IP65 Front
  • Shallow Depth 1/8 DIN Case 3.2" Behind Panel
  • 4 Digit Display, 0.56" (14 mm) High, Red LEDs
  • Easy Front Panel Programming
  • Maximum/Minimum Display
  • Universal Power Supply 85-265 VAC
  • 12-36 VDC/12-24 VAC Power Option

Specifications

Accuracy

  • ± 0.1° C (± 0.18° F)

Approvals & Certifications

  • CE
  • cUL

Display

  • 0.56" Red LED
  • 4-Digit LED

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Humidity

  • 0 to 90% Non-Condensing

Input

  • 4-20 mA

Input Impedance

  • > 100 KiloOhms

Isolation

  • 4 kV Input/Output-to-Power-Line

Mounting

  • 1/8" DIN

Operating Temperature

  • 0° to 65° C (32° to 150­° F)

Operating Voltages

  • 50/60 Hz

Power

  • 20 W

Power Supply

  • 85-265 Vac
  • 90-265 Vdc

Resolution

  • 0.1°

Storage Temperature

  • -40° to 85° C (-40° to 185° F)
