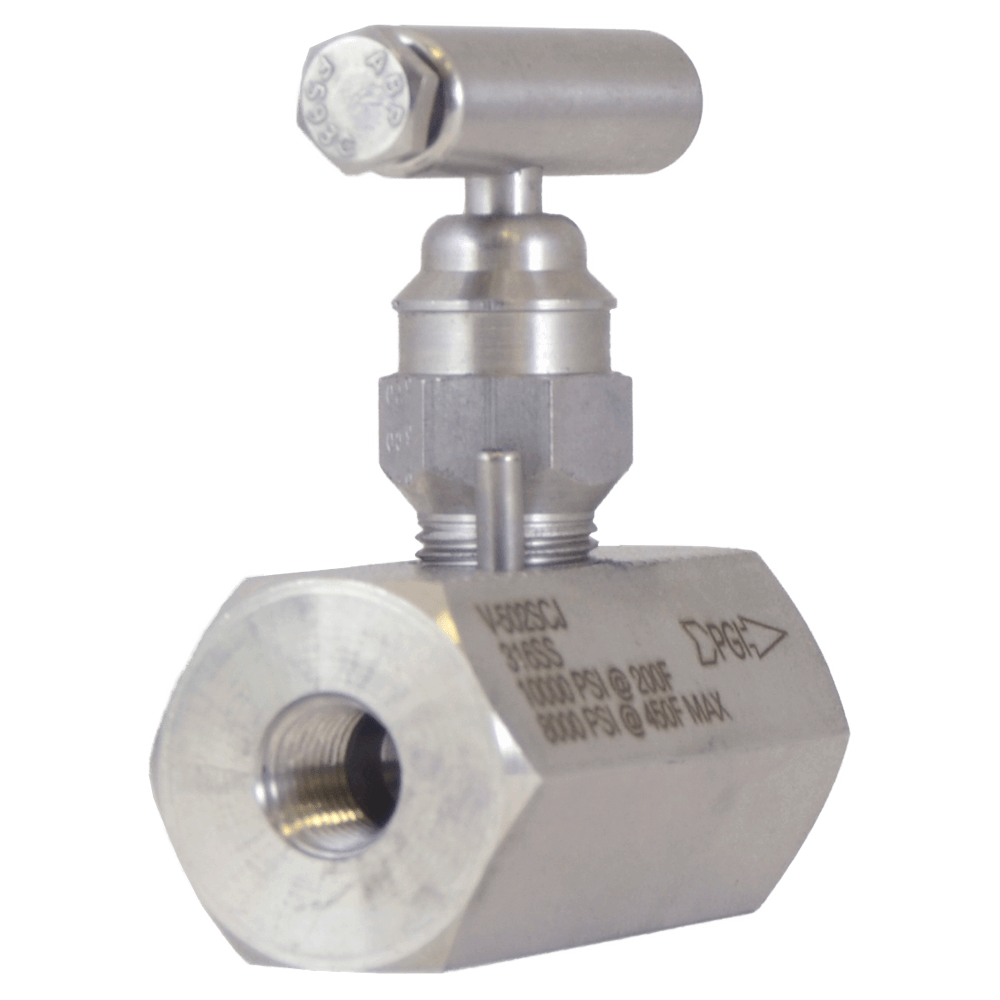

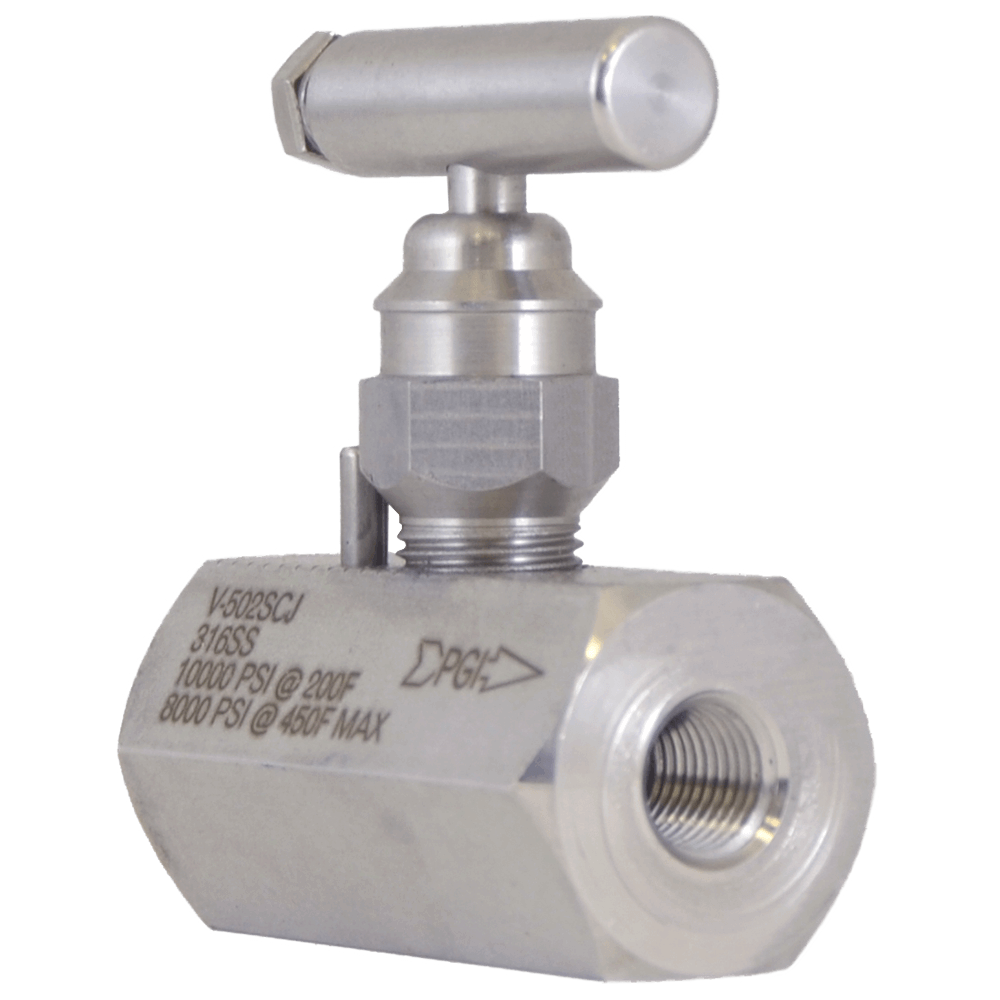

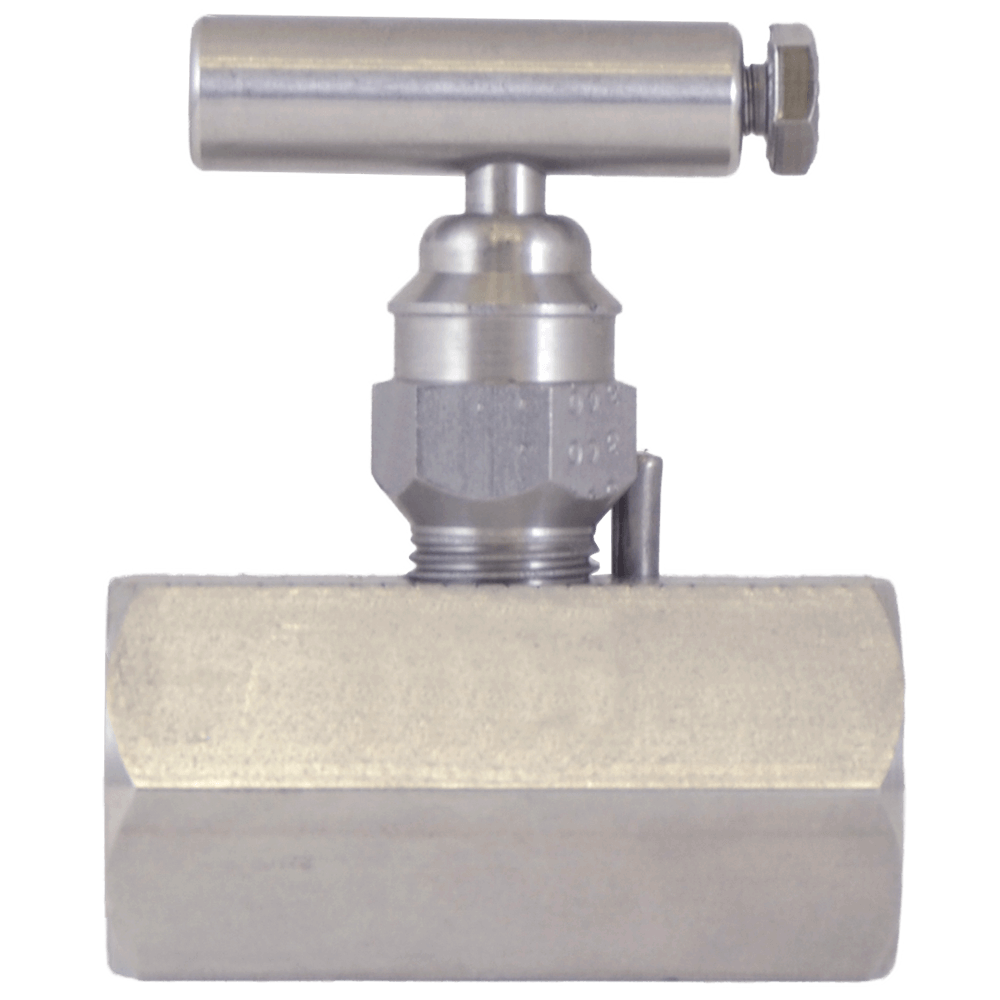

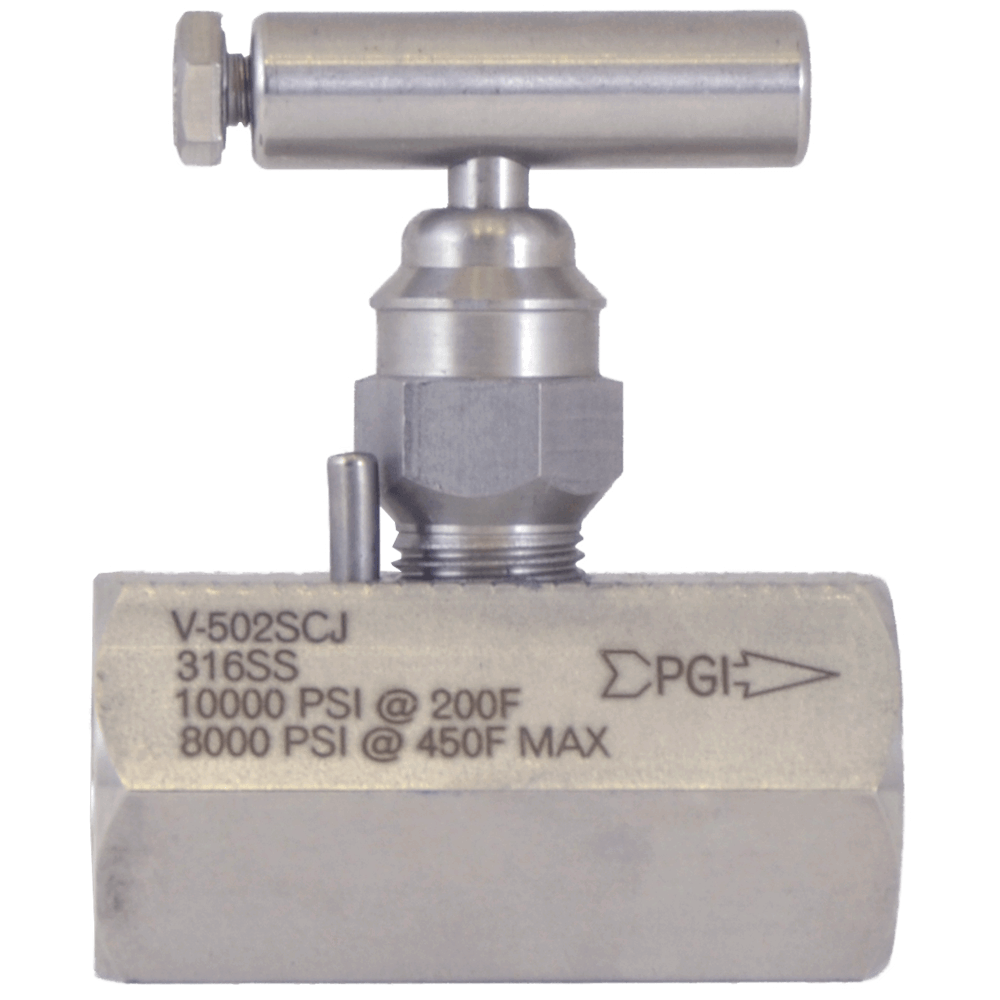

V-502 Instrument Hand Valve

Brand: PGI International
  • Design: Hard Seat Instrument Hand Valve
  • Inlet (Process) Connection: 1/4" NPT Female
  • Outlet (Instrument) Connection: 1/4" NPT Female
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless or Carbon Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
show more
Images are representations only.
  • Design: Hard Seat Instrument Hand Valve
  • Inlet (Process) Connection: 1/4" NPT Female
  • Outlet (Instrument) Connection: 1/4" NPT Female
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless or Carbon Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
V-502-SCJ
PGI Block-Valve, 1/4" x 1/4" FNPT, SST, NACE
14 In Stock
$101.62USD
$8.25 Shipping

V-502

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material
