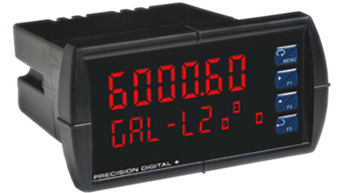

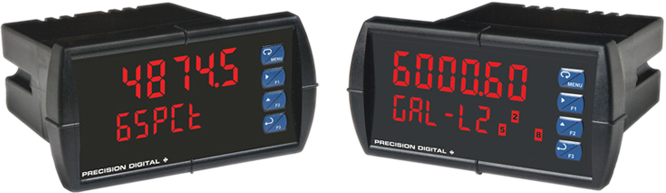

PD6000 ProVu Process Meter

Brand: Precision Digital Corporation

Favorite

The PROVU meter boasts specifications and functionality that clearly make it one of the most advanced process meters available. Its dual-line 6-digit display (999,999), advanced signal input conditioning, function keys, Modbus RTU serial communications, and optional expansion modules are only a few of the features found on the PROVU PD6000.

Features

1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Field Selectable Inputs
Dual-Line 6-Digit Display, 0.6" & 0.46"
Isolated 24 VDC @ 200 mA Transmitter Power Supply
2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options
No Assembly Required
Free PC-Based MeterView Pro USB Programming Software
Optional SunBright Display Models for Outdoor Applications
Operating Temperature Range: -40 to 65°C (-40 to 150°F)
UL & C-UL Listed. E160849; 508 Industrial Control Equipment
Input Power Options: 85-265 VAC or 12-24 VDC
Display Input in Two Different Scales - Great for Level Applications
Multi-Pump Alternation Control
Round Horizontal Tank Formula; Just Enter Diameter & Length
32-Point, Square Root, or Exponential Linearization
Programmable Display, Function Keys & Digital Input
External 4-Relay & Digital I/O Expansion Modules
RS-232 & RS-485 Serial Communication Options with Modbus RTU
Light / Horn & Reset Button Accessory
Control Station Accessory For Remote Operation of ProVu

Images are representations only.

Description

Features

1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Field Selectable Inputs
Dual-Line 6-Digit Display, 0.6" & 0.46"
Isolated 24 VDC @ 200 mA Transmitter Power Supply
2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options
No Assembly Required
Free PC-Based MeterView Pro USB Programming Software
Optional SunBright Display Models for Outdoor Applications
Operating Temperature Range: -40 to 65°C (-40 to 150°F)
UL & C-UL Listed. E160849; 508 Industrial Control Equipment
Input Power Options: 85-265 VAC or 12-24 VDC
Display Input in Two Different Scales - Great for Level Applications
Multi-Pump Alternation Control
Round Horizontal Tank Formula; Just Enter Diameter & Length
32-Point, Square Root, or Exponential Linearization
Programmable Display, Function Keys & Digital Input
External 4-Relay & Digital I/O Expansion Modules
RS-232 & RS-485 Serial Communication Options with Modbus RTU
Light / Horn & Reset Button Accessory
Control Station Accessory For Remote Operation of ProVu

Inventory

Specifications

Brand

Precision Digital Corporation

Alarm

Unused Alarm LEDs & Relays May Be Disabled
User May Program Any Alarm for High or Low Trip Point

Approvals & Certifications

CE
c-UL

Calibration

+10 Volts: Minimum Span Input 1 & 2: 0.10 Volts
4-20 mA: Minimum Span Input 1 & Input 2: 0.15 mA

Communication

Serial Communication Adapters

Deadband

0 to 100% of Span
User Programmable

Display

Red LEDs
Upper: 0.60" High, Lower: 0.46" High

Electrical Connectors

Digital I/O
Removable Terminal Block Accepts 12 to 22 AWG Wire
RJ45 for External Relays

Environmental Protection

IP65
IP66
NEMA 4X

Humidity

0 to 90% Non-Condensing

Isolation

4 kV Input/Output-to-Power-Line
500 V Input to Output or Output to P+ Supply

Mounting

1/8" DIN Panel Cut-out Required. Two Panel Mounting Brackets Included.

Operating Temperature

-40° to 65° C (-40° to 150° F)

Output

4-20 mA

Programming

Cloning Using Copy Function
Digital Inputs
Four Front Panel Buttons
Modbus Registers
PC & MeterView Pro Software

Rating

2 or 4 SPDT Internal and/or 4 SPST External Relays

Relay Operation

Automatic (Non-Latching)
Latching (Requires Manual Acknowledge)
Off (Disable Unused Relays & Enable Interlock Feature, Manual On/Off Control Mode)
Pump Alternation Control (2 to 8 Relays)
Sampling (Based on Time)
