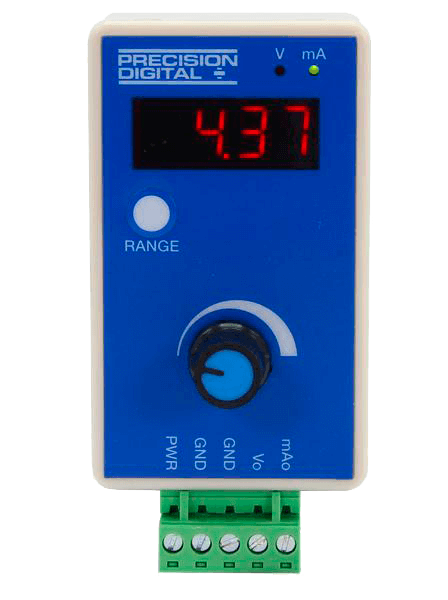

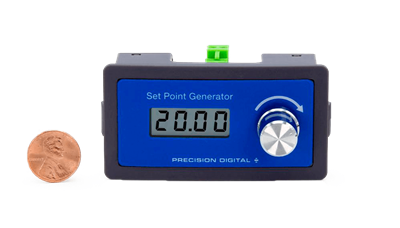

PD9502 Low-Cost Signal Generator

Brand: Precision Digital Corporation
Request Information
Favorite
The PD9502 is a low-cost, compact, simple to use 4-20 mA or 0-10 VDC signal generator.

It can easily be set for 0-20 mA, 4-20 mA, 0-10 V or 2-10 V ranges.

Signal adjustment is made with a one-turn knob. A 15-27 VDC wall plug is provided with the instrument.

Optional USB power bank is available.
Features
  • 0-20 / 4-20 mA or 0-10 / 2-10 VDC Ranges
  • Low-Cost
  • Simple to Use
  • Compact Size
  • 4-Digit LED Display
  • One-Turn Adjustment Knob
  • +/- 0.5% +/- 1 Count Accuracy
  • Power 15-27 VDC or USB Power Bank
