604T Series Temperature Switch

Brand: Custom Control Sensors
Request Information
Favorite

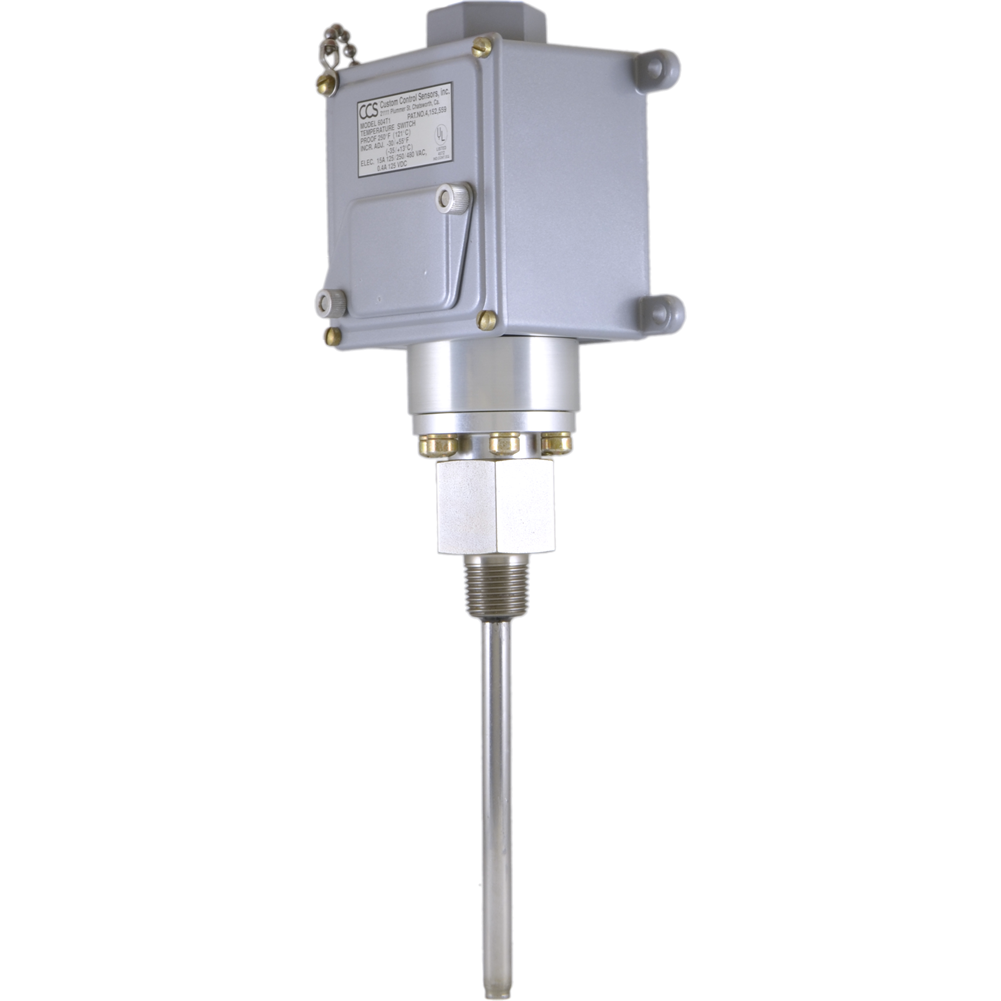

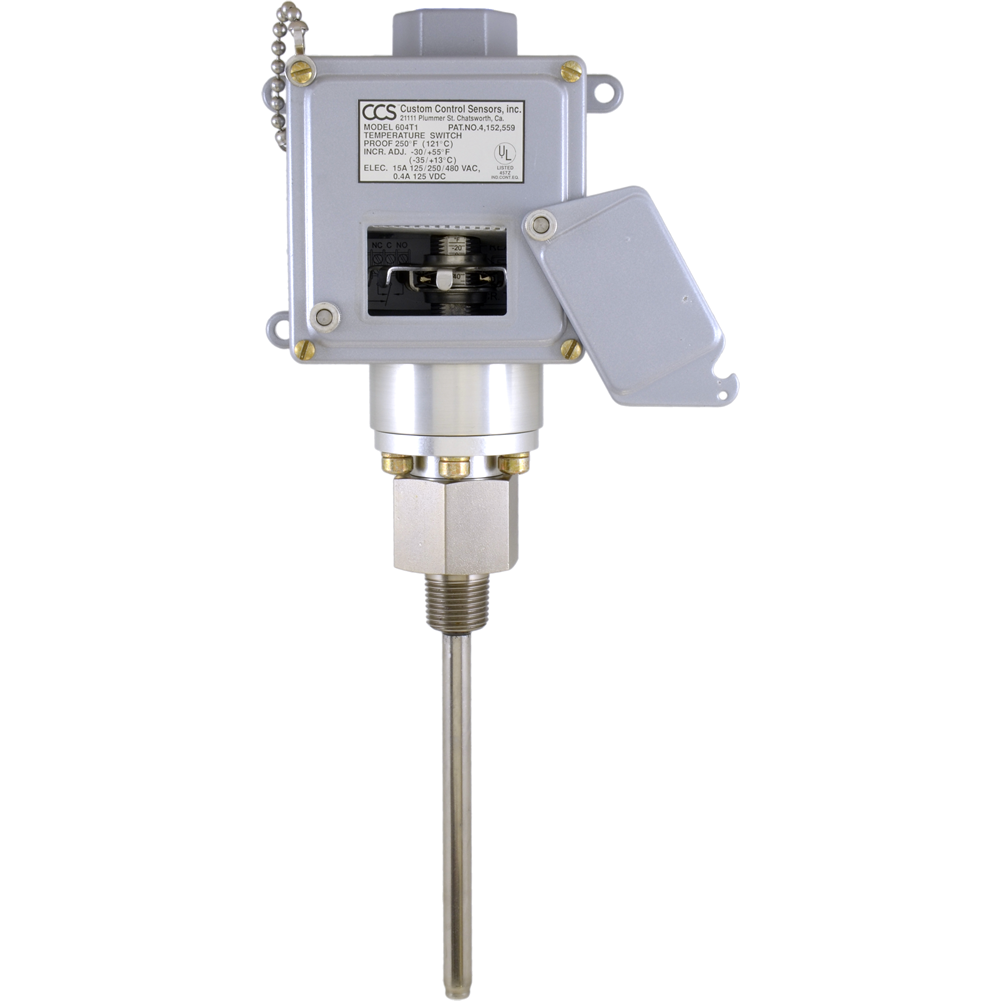

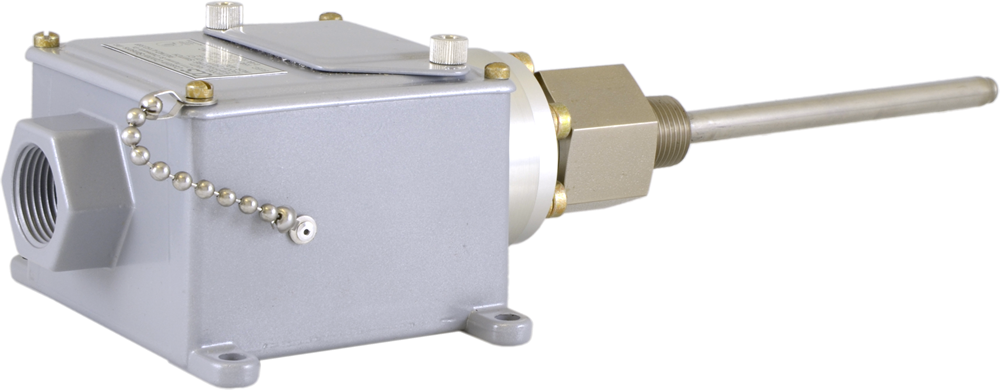

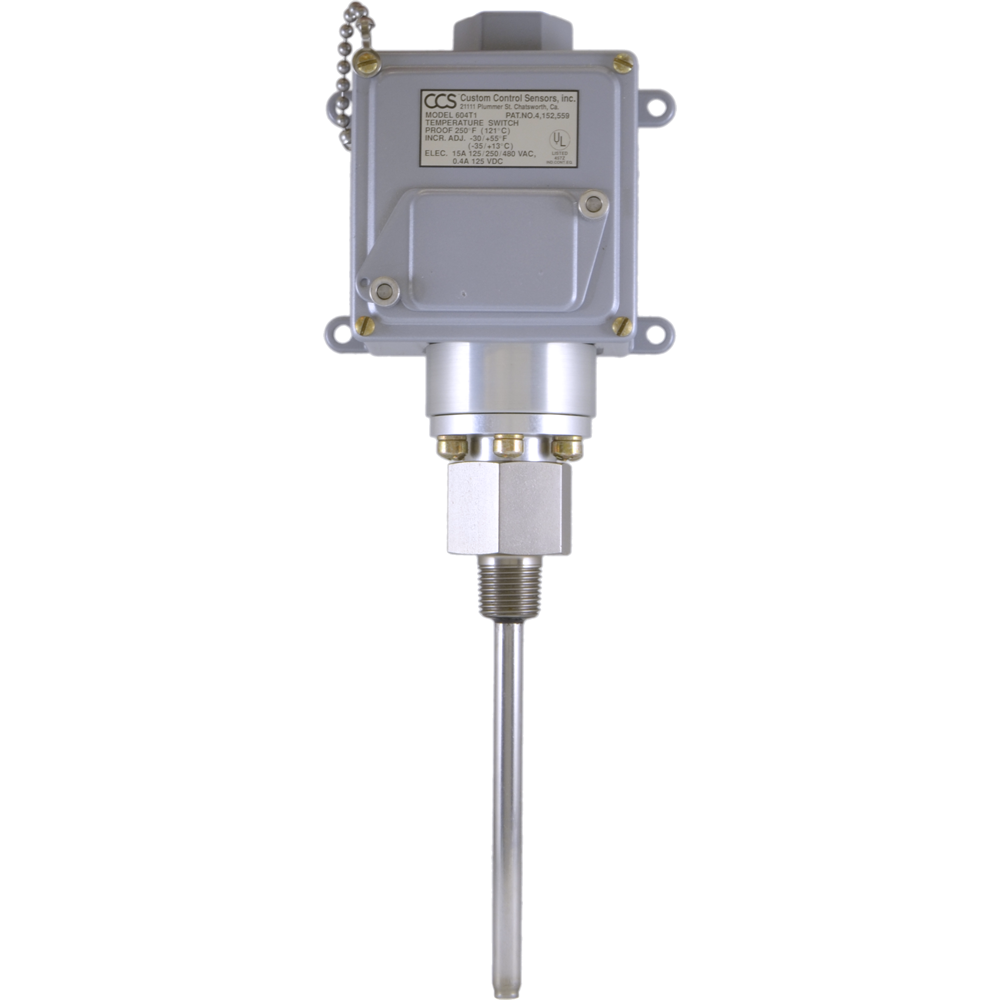

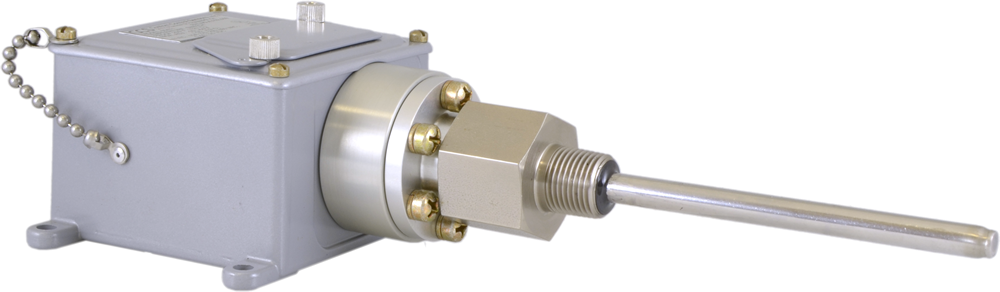

The 604TM Series is a general purpose temperature switch, DPDT with a stainless steel temperature probe and port fitting.

It is constructed with an integral terminal box and switch design and easy set point adjustment. It is also easily mounted to bulkheads and UL certified with NEMA 4 and IP65 rating.

It has high vibration and shock resistance utilizing Dual Snap® disc spring technology.
Features
  • Adjustable Set Point Range:
    • Increasing: -30°F to +420°F, -34°C to +216°C
    • Decreasing: -39°F to +414°F, -39°C to +212°C
  • Deadband: Approximately
    • At Bottom of Range: +9°F to +19°F, +5°C to +12°C
    • At Top of Range: +3°F to +6°F, +2°C to +8°C
  • Probe Temperature (Maximum): +250°F to +500°F, +121°C to +260°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CE Mark, General Purpose
show more
The 604TM Series is a general purpose temperature switch, DPDT with a stainless steel temperature probe and port fitting.

It is constructed with an integral terminal box and switch design and easy set point adjustment. It is also easily mounted to bulkheads and UL certified with NEMA 4 and IP65 rating.

It has high vibration and shock resistance utilizing Dual Snap® disc spring technology.
Features
  • Adjustable Set Point Range:
    • Increasing: -30°F to +420°F, -34°C to +216°C
    • Decreasing: -39°F to +414°F, -39°C to +212°C
  • Deadband: Approximately
    • At Bottom of Range: +9°F to +19°F, +5°C to +12°C
    • At Top of Range: +3°F to +6°F, +2°C to +8°C
  • Probe Temperature (Maximum): +250°F to +500°F, +121°C to +260°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CE Mark, General Purpose
Close

Displaying prices & availability for United States in USD. Change location or currency

7 models matching criteria
604T2
CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST Direct Mt. Probe View More
  • Adjustable Set Point Range:

    • Increasing: +35°F to +140°F, +2°C to +60°C
    • Decreasing: +21°F to +135°F, -6°C to +57°C

  • Deadband: Approximately
    • At Bottom of Range: 5°F, 3°C
    • At Top of Range: 14°F, 4°C

  • Probe Temperature (Maximum): +300°F, 149°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
    • O-Ring: Buna N

  • Relay: SPDT
  • UL, CE Mark, NACE, General Purpose
5 - 7 weeks
$1,037.59USD
Does not ship to US
604T3
CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST Direct Mt. Probe View More
  • Adjustable Set Point Range:

    • Increasing: +90°F to +210°F, +32°C to +99°C
    • Decreasing: +75°F to +205°F, +24°C to +96°C

  • Deadband: Approximately
    • At Bottom of Range: 15°F, 8°C
    • At Top of Range: 5°F, 3°C

  • Probe Temperature (Maximum): +300°F, 149°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
    • O-Ring: Buna N

  • Relay: SPDT
  • UL, CE Mark, NACE, General Purpose
5 - 7 weeks
$1,077.41USD
Does not ship to US
604T1
CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST Direct Mt. Probe, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: -30°F to +55°F, -34°C to +13 °C
    • Decreasing: -39°F to +52°F, -39°C to +11 °C


    • Deadband: Approximately
      • At Bottom of Range: 9°F, 5°C
      • At Top of Range: 3°F, 2°C

    • Probe Temperature (Maximum): +250°F, 121°C
    • Wetted Materials:
      • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
      • O-Ring: Buna N

    • Relay: SPDT
    • UL, CE Mark, NACE, General Purpose
    5 - 7 weeks
    $2,508.80USD
    Does not ship to US
    604TJ2
    CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST Direct Mt. Probe, CSA View More
    • Adjustable Set Point Range:

      • Increasing: +35°F to +140°F, +2°C to +60°C
      • Decreasing: +21°F to +135°F, -6°C to +57°C

    • Deadband: Approximately
      • At Bottom of Range: 5°F, 3°C
      • At Top of Range: 14°F, 4°C

    • Probe Temperature (Maximum): +300°F, 149°C
    • Wetted Materials:
      • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
      • O-Ring: Buna N

    • Relay: SPDT
    • CSA, UL, CE Mark, NACE, General Purpose
    5 - 7 weeks
    604TJ3
    CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST Direct Mt. Probe, CSA View More
    • Adjustable Set Point Range:
      • Increasing: +90°F to +210°F, +32°C to +99°C
      • Decreasing: +75°F to +205°F, +24°C to +96°C

    • Deadband: Approximately
      • At Bottom of Range: 5°F, 8°C
      • At Top of Range: 15°F, 5°C

    • Probe Temperature (Maximum): +300°F, 149°C
    • Wetted Materials:
      • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
      • O-Ring: Buna N

    • Relay: SPDT
    • CSA, UL, CE Mark, NACE, General Purpose
    5 - 7 weeks
    604TJ4
    CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST Direct Mt. Probe, CSA View More
    • Adjustable Set Point Range:

      • Increasing: +175°F to +310°F, +80°C to +154°C
      • Decreasing: +159°F to +305°F, +71°C to +152°C

    • Deadband: Approximately
      • At Bottom of Range: 16°F, 9°C
      • At Top of Range: 5°F, 2°C

    • Probe Temperature (Maximum): +500°F, 260°C
    • Wetted Materials:
      • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
      • O-Ring: Buna N

    • Relay: SPDT
    • CSA, UL, CE Mark, NACE, General Purpose
    Contact For Inventory
    604TJ5
    CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST Direct Mt. Probe, CSA View More
    • Adjustable Set Point Range:
      • Increasing: +275°F to +420°F, +135°C to +216 °C
      • Decreasing: +256°F to +414°F, +123°C to +212 °C
    • Deadband: Approximately
      • At Bottom of Range: 19°F, 12°C
      • At Top of Range: 6°F, 4°C
    • Probe Temperature (Maximum): +500°F, 260°C
    • Wetted Materials:
      • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
      • O-Ring: Buna N
    • Relay: SPDT
    • CSA, UL, CE Mark, NACE, General Purpose
    5 - 7 weeks
    Close
    Close

    Specifications

    Brand

    Adjustment Type

    • Field Adjustable

    Approvals & Certifications

    • CE
    • CRN
    • CRN - Alberta
    • CRN - British Columbia
    • CRN - Manitoba
    • CRN - N.W. Territories
    • CRN - Saskatchewan
    • CSA
    • cUL
    • EMC
    • LVD
    • PED
    • RoHS
    • UL

    Deadband, Approximate - Bottom of Range

    • -13° to -7° C (9° to 19° F)
    • 5° to 12° C (41° to 54° F)

    Deadband, Approximate - Top of Range

    • -16° to -14° C (3° to 6° F)
    • 2° to 8° C (36° to 46° F)

    Electrical Connectors

    • Terminal Strip - Internal

    Electrical Contacts

    • Gold
    • Silver

    Electrical Rating

    • 1 A at 125 Vac, 50/60 Hz
    • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc
    • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

    Enclosure, Body Material

    • Aluminum

    Environmental Protection

    • IP65
    • IP66
    • NEMA 13
    • NEMA 4, 13 / IP65, 66

    Maximum Sensor, Probe Temperature

    • 121° to 260° C (250° to 500° F)

    NACE & NIST

    • NACE MR-0175: 2003

    NPT Connection

    • 1/2” NPT Male

    Operating Temperature

    • -40° to 86° C (-40° to 187° F)

    O-Ring Material

    • Buna-N (Ranges 1, 2, 3)
    • Silicone Rubber (Ranges 4, 5)

    Proof Pressure

    • bar: 103.4
    • kPa: 10,342
    • psig: 1,500

    Sensor, Probe Material

    • Stainless Steel with Nickel-Plated Steel

    Set Point - Decreasing

    • -39° to 212° C
    • -39° to 212° C (-38° to 414° F)

    Set Point - Increasing

    • -34° to 216° C
    • -34° to 216° C (-30° to 420° F)

    Standard Features

    • Internal Case Ground
    • Weatherproof

    Switch Type

    • DPDT
    • SPDT

    System Pressure

    • bar: 86
    • kPa: 8,618
    • psig: 1,250
    Close

    Typical Applications

    • Power Generation
    • Rail Car
    • Fluid Management
    • Manufacturing Process
    • Utilities, Water Treatment and Waste
    • Chemical Refining and Processing
    • Heavy Vehicles
    • Safety Systems
