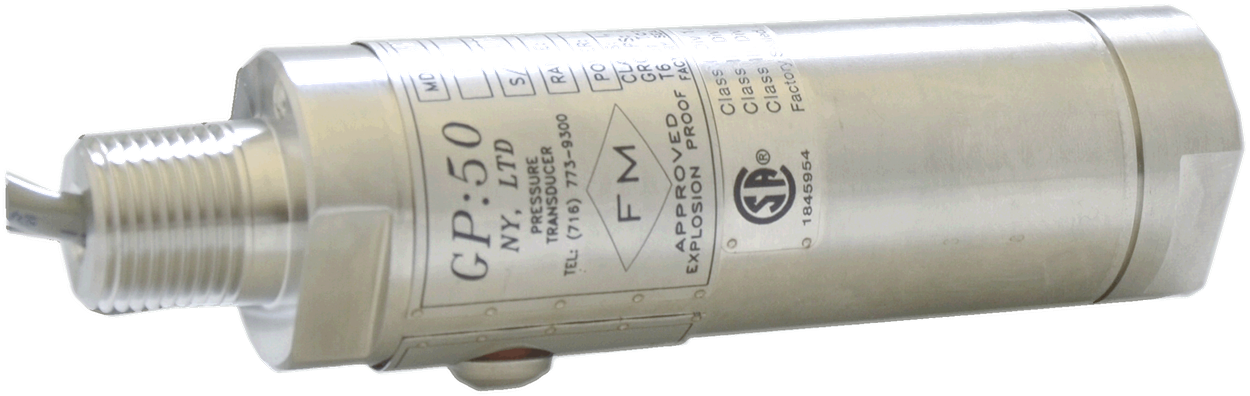

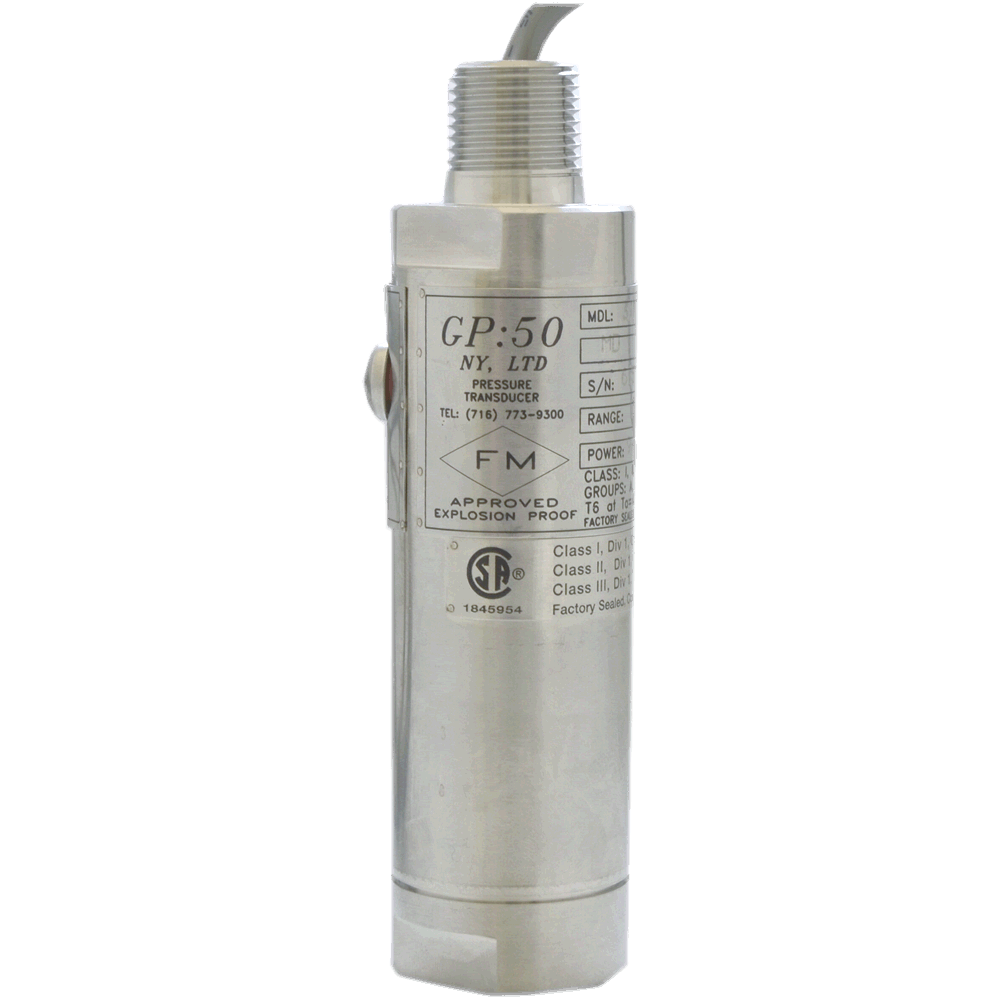

Model 211 Explosion-Proof Pressure Transmitter

Brand: GP:50 New York Ltd.
  • GP:50’s Model 11 series provides a rugged solution in hazardous approved areas. The all welded, stainless steel design provides years of reliable service in some of the harshest applications.
  • Signal: 0-5 Vdc, 0-10 Vdc
  • Input Impedence: 8 mA nominal
  • Pressure Range: 0 to 75,000 psi (0 to 5,171 bar, 0 to 517,107 kPa)
  • Burst Pressure: 5 times FSO or 22,500 psi (1,551 bar, 155,132 kPa) whichever is less
  • Proof Pressure: 2 times FSO or 22,500 psi (1,551 bar, 155,132 kPa) whichever is less
  • Electrical Connections: 1/2" Male NPT conduit, 6 feet 18 AWG multi-conductor cable
  • Process Connection: 1/4" Female NPT
  • Agency Approvals: FM, CSA, ATEX, and IEC
  • Temperature Range:
    • Operating: -40° to 80° C (-40° to 176° F)
    • Storage: -53° to 121° C (-65° to 250° F)
    • Compensated: -17.7° to 82° C (0° to 180° F
    • Effect on Zero/Span: ±2.0% FSO at 100 °F
  • Static Accuracy: Standard: ±0.5% FSO / Improved: ±0.2%; and ±0.1% FSO
  • Materials of Construction:
    • Housing: 316 Stainless Steel
    • Wetted Parts: 17-4 PH Stainless Steel
Features
  • 0 to 5 PSI thru 0 to 75K PSI (75 MBAR to 1,034 BAR)
  • FM, CSA, ATEX & IEC approvals
  • Welded, rugged construction
  • Optional high overpressure protection
  • Available in NACE MR-01-75 compliant wetted parts
show more
Images are representations only.
  • GP:50’s Model 11 series provides a rugged solution in hazardous approved areas. The all welded, stainless steel design provides years of reliable service in some of the harshest applications.
  • Signal: 0-5 Vdc, 0-10 Vdc
  • Input Impedence: 8 mA nominal
  • Pressure Range: 0 to 75,000 psi (0 to 5,171 bar, 0 to 517,107 kPa)
  • Burst Pressure: 5 times FSO or 22,500 psi (1,551 bar, 155,132 kPa) whichever is less
  • Proof Pressure: 2 times FSO or 22,500 psi (1,551 bar, 155,132 kPa) whichever is less
  • Electrical Connections: 1/2" Male NPT conduit, 6 feet 18 AWG multi-conductor cable
  • Process Connection: 1/4" Female NPT
  • Agency Approvals: FM, CSA, ATEX, and IEC
  • Temperature Range:
    • Operating: -40° to 80° C (-40° to 176° F)
    • Storage: -53° to 121° C (-65° to 250° F)
    • Compensated: -17.7° to 82° C (0° to 180° F
    • Effect on Zero/Span: ±2.0% FSO at 100 °F
  • Static Accuracy: Standard: ±0.5% FSO / Improved: ±0.2%; and ±0.1% FSO
  • Materials of Construction:
    • Housing: 316 Stainless Steel
    • Wetted Parts: 17-4 PH Stainless Steel
Features
  • 0 to 5 PSI thru 0 to 75K PSI (75 MBAR to 1,034 BAR)
  • FM, CSA, ATEX & IEC approvals
  • Welded, rugged construction
  • Optional high overpressure protection
  • Available in NACE MR-01-75 compliant wetted parts
14 models matching criteria
211X-D-RR-6/LF/MA/CZ
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.1%, 2000 PSI, Absolute, 1/2" FNPT, 1-5 Vdc FSO
4 In Stock
$264.56 USD $105.00USD
$9.99 Shipping
211P-B-PV-3
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.5%, 50 psi, Absolute
1 In Stock
$174.00USD
$9.99 Shipping
211P-D-RR-6/LF/MA/CZ
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.1%, 2000 PSI, Sealed Gauge, 1/2" NPT, 1-5VDC
1 In Stock
$185.00USD
$9.99 Shipping
211X-D-RM-6/LF/MA
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.1%, 1000 psi, Absolute, 1/2" FNPT, 1-5 Vdc FSO
Out of Stock
$114.00USD
$9.99 Shipping
211X-B-RM-6-GB/MD
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.5%, 1000 psi, Absolute, Alternate, Zero & Span
Out of Stock
$362.00USD
$9.99 Shipping
211P-B-RM-6-MA
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.5%, 1000 psi, Sealed Gauge, 1-5 Vdc FSO
4 - 6 weeks
$589.00USD
$9.99 Shipping
available on backorder
211P-B-RH-6-GB
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.5%, 500 psi, Sealed Gauge, Alternate
4 - 6 weeks
$599.00USD
$9.99 Shipping
available on backorder
211P-B-RM-6-GB
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.5%, 1000 psi, Sealed Gauge, Alternate
4 - 6 weeks
$599.00USD
$9.99 Shipping
available on backorder
211X-B-RM-6-GB
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.5%, 1000 psi, Absolute, Alternate
4 - 6 weeks
$599.00USD
$9.99 Shipping
available on backorder
211P-B-RH-6-MA
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.5%, 500 psi, Sealed Gauge, 1-5 Vdc FSO
4 - 6 weeks
$655.00USD
$9.99 Shipping
available on backorder
211P-B-PZ-3/FL/GB
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.5%, 100 psi, Absolute, 1/8" MNPT, Alternate
4 - 6 weeks
$664.00USD
$9.99 Shipping
available on backorder
211X-B-RH-6-GB/MD
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.5%, 500 psi, Sealed , Alternate, Zero & Span
4 - 6 weeks
$689.00USD
$9.99 Shipping
available on backorder
211X-D-RR-6-LF/MA
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.1%, 2000 PSI, Absolute, 1/2" FNPT, 1-5 Vdc FSO
4 - 6 weeks
$731.00USD
$9.99 Shipping
available on backorder
211X-D-RM-6/LF/MA/CZ
GP:50 Model 211 Pressure Transducer, Intrinsically Safe, 0.1%, 1000 psi, Absolute, 1/2" FNPT, 1-5 Vdc FSO
4 - 6 weeks

Specifications

Accuracy

  • ± 0.1% of Full Scale Output
  • ± 0.2% of Full Scale Output
  • ± 0.5% of Full Scale Output

Approvals & Certifications

  • ATEX
  • CSA
  • IEC

Burst Pressure

  • 2.5 times Full Scale Output

Compensated Temperature

  • -17° to 82° C (0° to 180° F)

Electrical Connectors

  • 1/2" NPT Male Conduit with 6 feet of 18 AWG Multiconductor Cable

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • IP67

Excitation Voltage

  • 10.5 to 32 Vdc

Input Signal

  • 8 mA Nominal

Insulation Resistance

  • > 10 MegaOhms at 50 Vdc & 21° C (70° F)

Load Impedance

  • 50 ohms Maximum

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 80° C (-40° to 176° F)

Output

  • 0-10 Vdc
  • 0-5 Vdc

Pressure Range

  • bar: 0 to 5,171
  • kPa: 0 to 517,107
  • psi: 0 to 75,000

Pressure Type

  • Absolute
  • Gauge
  • Sealed Gauge
  • Vacuum

Proof Pressure

  • 1.5 times Full Scale Output

Response Time

  • < 5 milliseconds 10% to 90%

Span & Zero Effect

  • <± 2.0% of Full Scale Output at 38° C (100° F)

Storage Temperature

  • -53° to 121° C (-65° to 250° F)

Wetted Materials

  • 630 Stainless Steel

Zero Balance

  • ± 1% of Full Scale Output at 21.1° C (70° F)

Typical Applications

  • Rig safety systems
  • Well head control
  • Gas pipeline
  • Control panels
  • On-board transmission & engine monitoring
