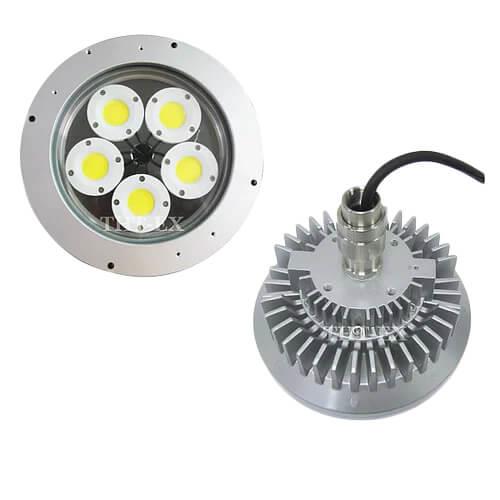

L1102 (COB) Explosion-Proof LED Light

Brand: Top Hi-Tech Inc.
Up to 100℃ Heat Resistant

Standards & Protections:
  • cULus Approved for Canada & US
  • CSA C22.2 (No.137-M1981),(No. 250.0)
  • UL844, UL1598, UL8750
  • Class I, Division 2, Group A, B, C, D
  • Class I, Division 1, Group B, C, D.
  • Class II, Division 1, Group E, F, G
  • Class III
  • IP rating IP67 (NEMA 6)
Features
  • Long Lifespan
  • High efficacy
  • Model No.:L1102 (COB)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • Small volume and light weight
  • Easy installation and maintenance
  • Applicable to high temperature environment
  • Retrofit to conventional explosion-proof light
  • Light Color: Cool White / Warm White
show more
Up to 100℃ Heat Resistant

Standards & Protections:
  • cULus Approved for Canada & US
  • CSA C22.2 (No.137-M1981),(No. 250.0)
  • UL844, UL1598, UL8750
  • Class I, Division 2, Group A, B, C, D
  • Class I, Division 1, Group B, C, D.
  • Class II, Division 1, Group E, F, G
  • Class III
  • IP rating IP67 (NEMA 6)
Features
  • Long Lifespan
  • High efficacy
  • Model No.:L1102 (COB)
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • Small volume and light weight
  • Easy installation and maintenance
  • Applicable to high temperature environment
  • Retrofit to conventional explosion-proof light
  • Light Color: Cool White / Warm White

Specifications

Frequency

  • 50/60 Hz

Rated Voltage (±10%)

  • COB: 120V / 208V / 277V / 347V / 480V AC
  • SMD: 120V / 220V / 277V AC

Watts (±10%)

  • COB: 60W / 80W / 100W
  • SMD: 65W / 75W / 95W

Amps

  • 95W 120V: 0.79A, 220V: 0.43A, 277V: 0.34A
  • 75W 120V: 0.63A, 220V: 0.34A, 277V: 0.27A
  • 65W 120V: 0.54A, 220V: 0.30A, 277V: 0.23A
  • 100W 120V: 0.83A, 208V: 0.48A, 277V: 0.36A, 347V: 0.29A, 480V: 0.21A
  • 80W 120V: 0.67A, 208V: 0.38A, 277V: 0.29A, 347V: 0.23A, 480V: 0.17A
  • 60W 120V: 0.50A, 208V: 0.29A, 277V: 0.22A, 347V: 0.17A, 480V: 0.13A

Color of LED Light

  • 5000K (Cool White)
  • 3000K (Warm White)

Ambient Temperature

  • Class I Division 1 : -40°C ~ +40°C, T5 / CIID1: +40°C, T5
  • Class I Division 2 : -40°C ~ +40°C, T4 / -40°C ~ +40°C, T3A (208V)

Power Factor

  • cos≧0.87(480V)
  • cos≧0.9

CRI

  • Cool White≧70 / Warm White≧80

Lumen (± 10%)

  • SMD 5000K: 65W 6500lm, 75W: 7500lm, 95W: 9500lm
  • SMD 3000K: 65W: 6175lm, 75W: 7215lm, 95W: 8550lm
  • COB 5000K: 60W: 6000lm, 80W: 8000lm, 100W: 10000lm
  • COB 3000K: 60W: 5700lm, 80W: 7600lm, 100W: 9000lm

Beam Angle

  • X-110° / Y-110°

Degree of Protection

  • IP67 / NEMA 6

Material

  • Glass: Tempered Glass
  • Enclosure: Aluminum Alloy

LED Service Life

  • 60,000 hrs

Entrance Thread

  • 1 × NPT 3/4”
