Images are representations only.

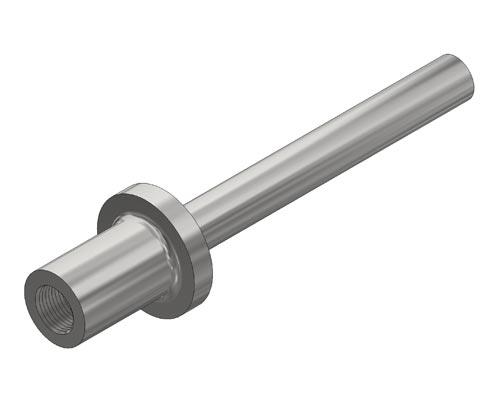

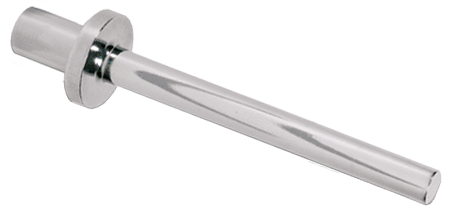

VS22/VS32 Thermowell

Brand: Aircom Instrumentation Ltd.
Request Information
Favorite
Straight 0.260” Bore:
  • Flange size: 3/4, 1, 1-1/4, 1-1/2
  • Flange rating: 150, 300, 600, 1,500, 2,500
  • Well material: 304L stainless steel, 316L stainless steel
Straight 0.385” Bore:
  • Flange size: 3/4, 1, 1-1/4, 1-1/2
  • Flange rating: 150, 300, 600, 1,500, 2,500
  • Well material: 304L stainless steel, 316L stainless steel
show more
Straight 0.260” Bore:
  • Flange size: 3/4, 1, 1-1/4, 1-1/2
  • Flange rating: 150, 300, 600, 1,500, 2,500
  • Well material: 304L stainless steel, 316L stainless steel
Straight 0.385” Bore:
  • Flange size: 3/4, 1, 1-1/4, 1-1/2
  • Flange rating: 150, 300, 600, 1,500, 2,500
  • Well material: 304L stainless steel, 316L stainless steel
Close
Close

Specifications

Brand

Bore Size

  • 0.385" (9.78 mm)

Flange Size - 1" (DN25)

  • 1" (DN25) - Class 150
  • 1" (DN25) - Class 1500
  • 1" (DN25) - Class 2500
  • 1" (DN25) - Class 300
  • 1" (DN25) - Class 600

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - Class 150
  • 1-1/2" (DN40) - Class 1500
  • 1-1/2" (DN40) - Class 2500
  • 1-1/2" (DN40) - Class 300
  • 1-1/2" (DN40) - Class 600

Flange Size - 1-1/4" (DN32)

  • 1-1/4" (DN32) - Class 150
  • 1-1/4" (DN32) - Class 1500
  • 1-1/4" (DN32) - Class 2500
  • 1-1/4" (DN32) - Class 300
  • 1-1/4" (DN32) - Class 600

Flange Size - 3/4" (DN20)

  • 3/4" (DN20) - Class 150
  • 3/4" (DN20) - Class 1500
  • 3/4" (DN20) - Class 2500
  • 3/4" (DN20) - Class 300
  • 3/4" (DN20) - Class 600

Materials of Construction

  • 304L Stainless Steel - Well
  • 316L Stainless Steel - Well

NPT Connection

  • 1/2" NPT Female
