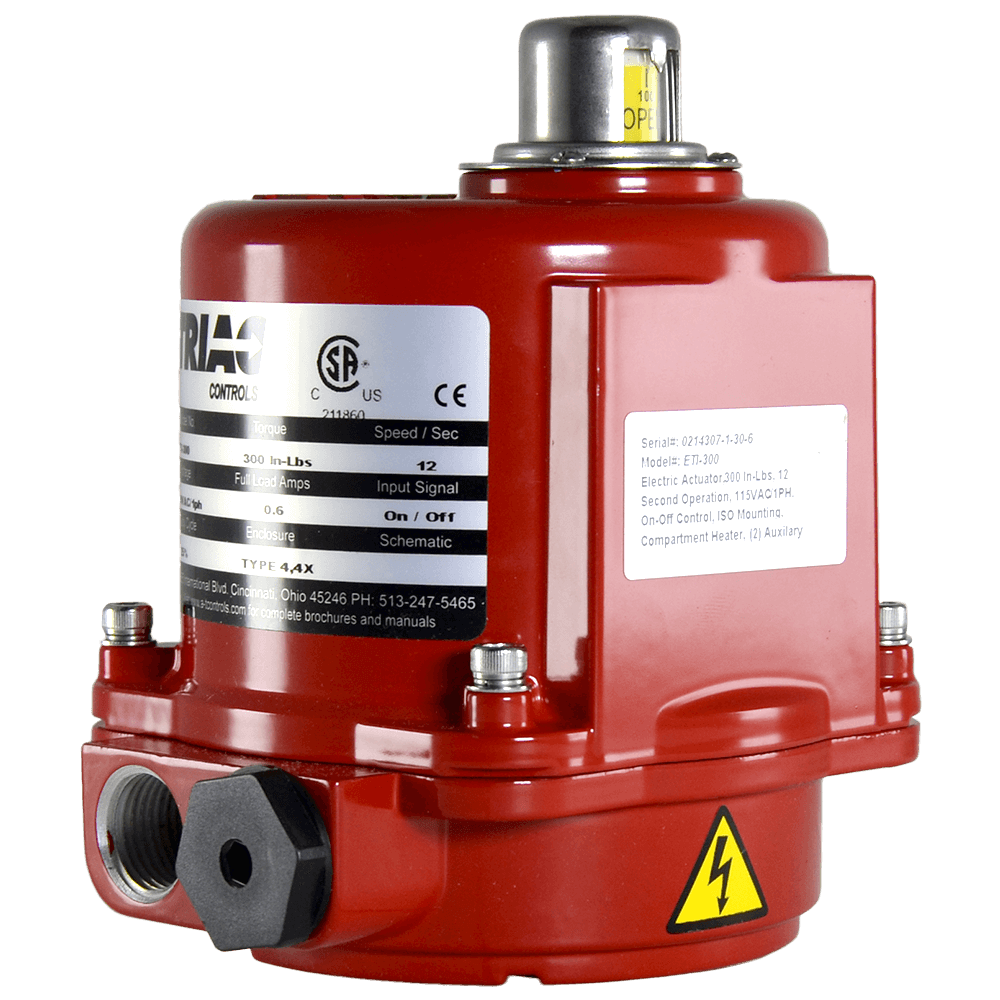

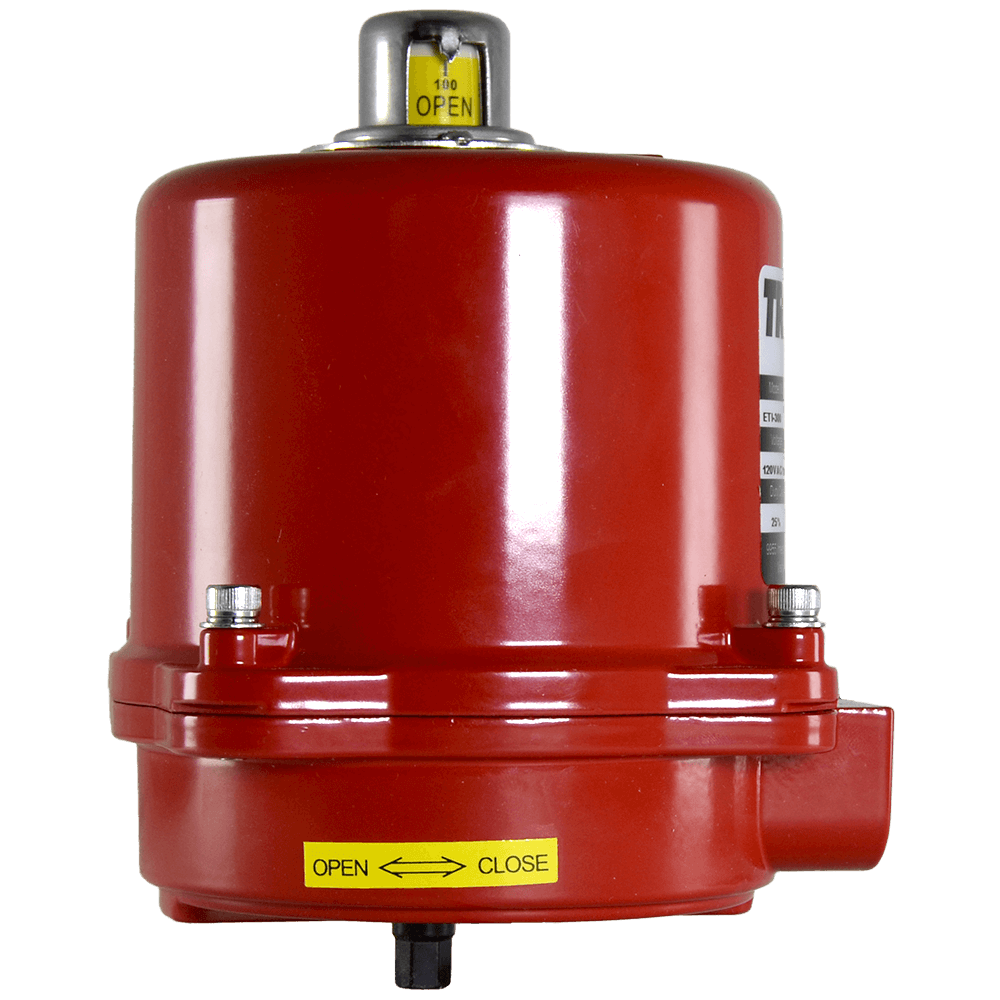

E Series Electric Actuator

Brand: A-T Controls, Inc.
Request Information
Favorite
The original product line of TRIAC electric actuators, E Series electric actuators offer torques from 300 to 30,000 in. lbs. and numerous features including manual overrides, auxiliary switches, 4-20mA modulating control, several voltage options including 1-phase 24/120V/220V - 12 and 24VDC, 3-phase 220v, 380v, and 440v - view voltage chart.

The units feature EP-CYCLICAL gear trains and a unique manual override with handwheel.

All actuators are Type 4x and are designed for maximum cycle life due to our rugged motors and gear trains.

As with all TRIAC actuators, our E Series electrics are available with mounting kits on most ball, butterfly and plug valves.

The actuators are ideal for use on butterfly and louver dampers with the increased benefit of self-locking EP-CYCLICAL gears, eliminating the need for unreliable solenoid brakes.
Features
  • CSA and CE Approved
  • Corrosion Resistant Type 4, 4X Construction
  • Self-locking EPI-CYCLICAL Gear Train
  • Standard Manual Override with Handwheel
  • Visual Position Indicator
  • Standard Two Auxiliary Limit Switches - 10amp at 120VAC
  • Torque Swtiches - 2 Standard on Models ETI-8600 and Larger
  • Optional Servo Card for Modulating Service

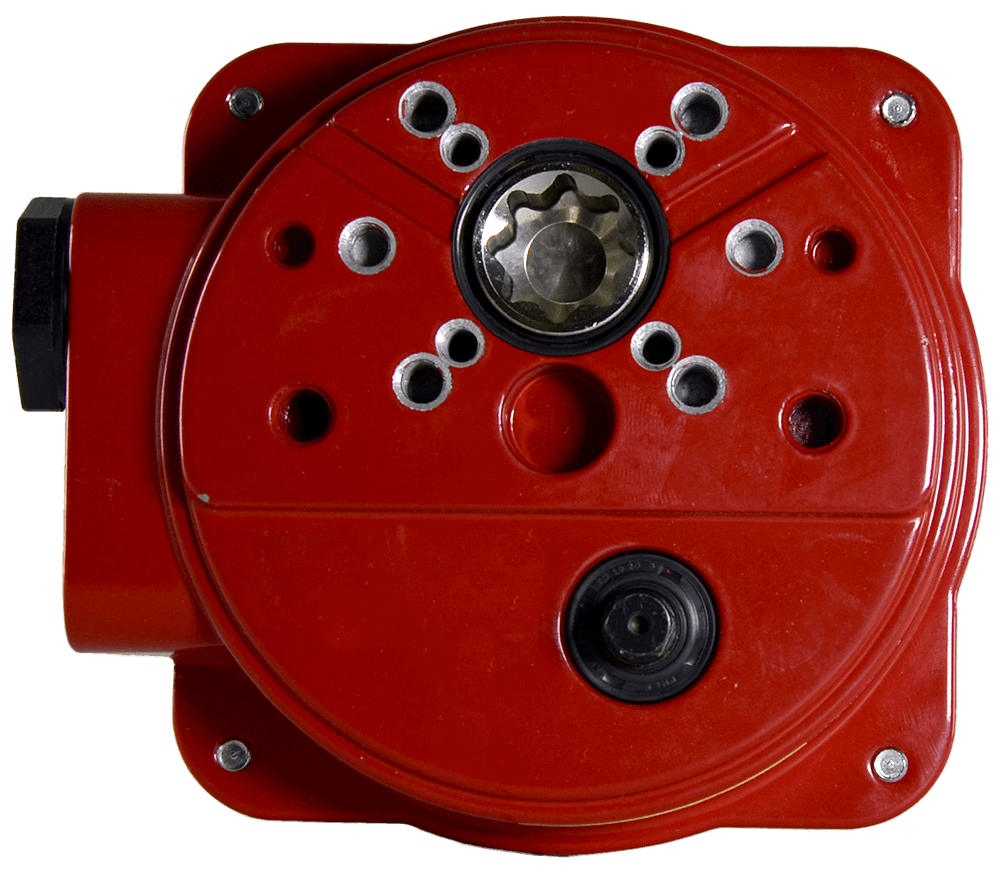

  • ISO5211 Mounting Patterns
  • 14º-160ºF Working Temperature
show more
The original product line of TRIAC electric actuators, E Series electric actuators offer torques from 300 to 30,000 in. lbs. and numerous features including manual overrides, auxiliary switches, 4-20mA modulating control, several voltage options including 1-phase 24/120V/220V - 12 and 24VDC, 3-phase 220v, 380v, and 440v - view voltage chart.

The units feature EP-CYCLICAL gear trains and a unique manual override with handwheel.

All actuators are Type 4x and are designed for maximum cycle life due to our rugged motors and gear trains.

As with all TRIAC actuators, our E Series electrics are available with mounting kits on most ball, butterfly and plug valves.

The actuators are ideal for use on butterfly and louver dampers with the increased benefit of self-locking EP-CYCLICAL gears, eliminating the need for unreliable solenoid brakes.
Features
  • CSA and CE Approved
  • Corrosion Resistant Type 4, 4X Construction
  • Self-locking EPI-CYCLICAL Gear Train
  • Standard Manual Override with Handwheel
  • Visual Position Indicator
  • Standard Two Auxiliary Limit Switches - 10amp at 120VAC
  • Torque Swtiches - 2 Standard on Models ETI-8600 and Larger
  • Optional Servo Card for Modulating Service
  • ISO5211 Mounting Patterns
  • 14º-160ºF Working Temperature
Close

Displaying prices & availability for United States in USD. Change location or currency

10 models matching criteria
ETI-300
A-T CONTROLS, E-Series Electric Actuators, 115VAC, CSA View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 300 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
5 In Stock
$521.79USD
$19.16 Shipping
ETI-1300
A-T CONTROLS, Electric Actuators, 1300in-Lbs View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 1300 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
1 - 2 weeks
$1,321.44USD
$19.16 Shipping
KE-440
A-T CONTROLS Electric Actuator KE Series, Weather-Proof,IP67, 440 in-lbs, 110VAC/1PH, On/Off Control View More
  • KE: Weather-proof, IP67 Electric Actuator
  • 440: 440 in-lbs Torque Output

15 Second Cycle Speed

110VAC/1PH

1.2 Rated Amps

On/Off Two Position Control

(2) Auxiliary Limit Switches

Heater & Thermostat

Diecast Aluminum Powder Coated Construction

Manual Override with Wrench

(2) 1/2" NPT Conduit Entries

F05/F07 Mounting Pad

0.551 (14mm) Star Output Drive

Color: Red
1 - 2 weeks
$309.54USD
$19.16 Shipping
ETI-300-24VDC
A-T CONTROLS, Electric Actuators, 4", 24 VDC View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 300 In-Lbs.
  • Motor Voltages: 24 VAC/24 VDC
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
2 - 4 weeks
$432.62USD
$19.16 Shipping
ETI-400
A-T CONTROLS, Electric Actuators, 4" View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 400 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
2 - 4 weeks
$589.60USD
$19.16 Shipping
ETI-400LT
A-T CONTROLS, Electric Actuators, 4", Low Temperature View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 400 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
  • Adders: Low Temperature
2 - 4 weeks
$1,000.11USD
$19.16 Shipping
ETI-700
A-T CONTROLS, Electric Actuators, 700in-Lbs View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 700 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
2 - 4 weeks
$1,268.37USD
$19.16 Shipping
EMI-700 Discontinued - See WEM-690
A-T CONTROLS, Electric Actuators, 700in-Lbs, Modulating View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: Modulating with 4-20mA Output
  • Actuator Size: 700 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
Out of Stock
EMI-1300 Discontinued - See WEM-1350
A-T CONTROLS, Electric Actuator, 1300in-Lbs, Modulating View More
  • EMI: Modulating with 4-20mA Output Electric Valve Actuator
  • 1300: Actuator Size: 1300 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Manual Wormgear Overrride
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
Out of Stock
EMI-300 Discontinued - See WEM-350
A-T CONTROLS, Electric Actuators, 300in-Lbs, Modulating View More
  • EMI: Modulating Control Electric Actuator with 4-20mA Output
  • 300: 300 in-lbs.
  • 115VAC/1PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
Out of Stock
Close
Close

Specifications

Brand

Actuator Type

  • Modulating
  • On-Off

Approvals & Certifications

  • CE
  • CSA

Motor Voltages

  • 115 Vac / 1-Phase / 50/60 Hz
  • 220 Vac / 1-Phase / 50/60 Hz
  • 220 Vac / 3-Phase / 50/60 Hz
  • 24 Vac / 1-Phase
  • 24 Vdc

Mounting

  • ISO /DIN Mounting Configuration
  • ISO 5211 Mounting Patterns

Resistance

  • 0 to 1,000 ohms

Standard Features

  • Visual Position Indicator
