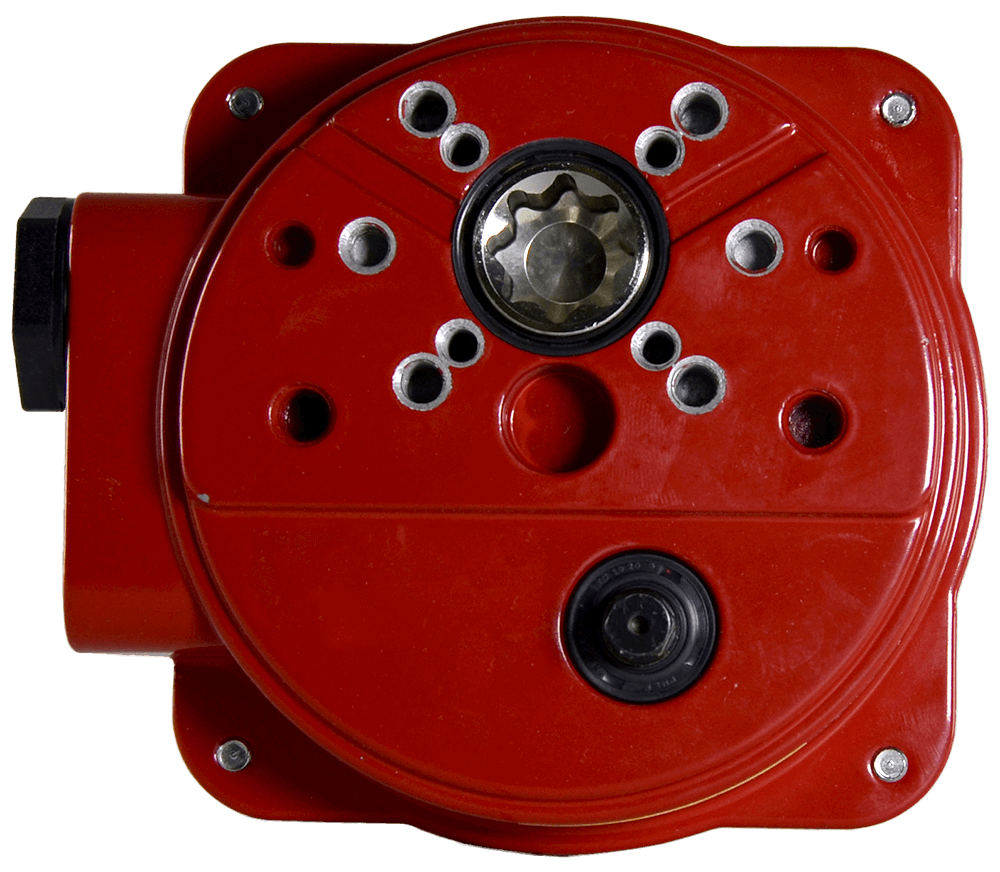

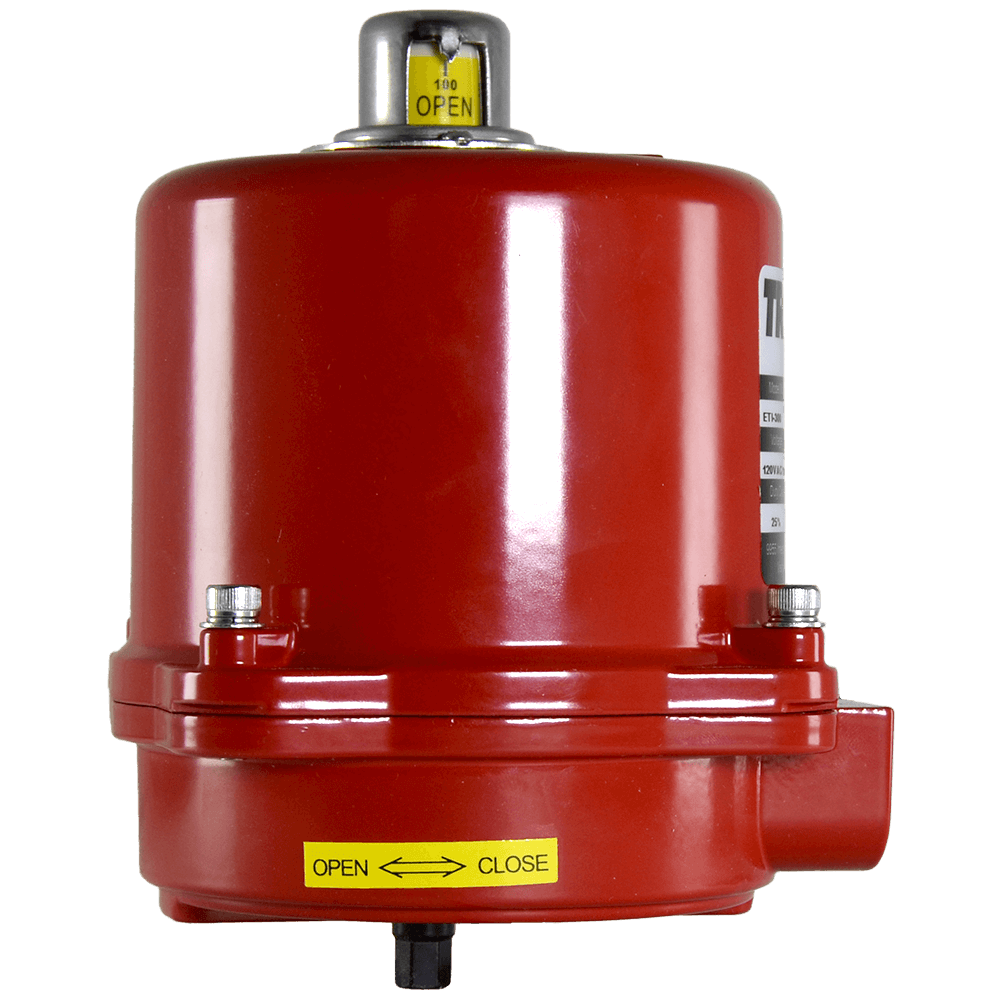

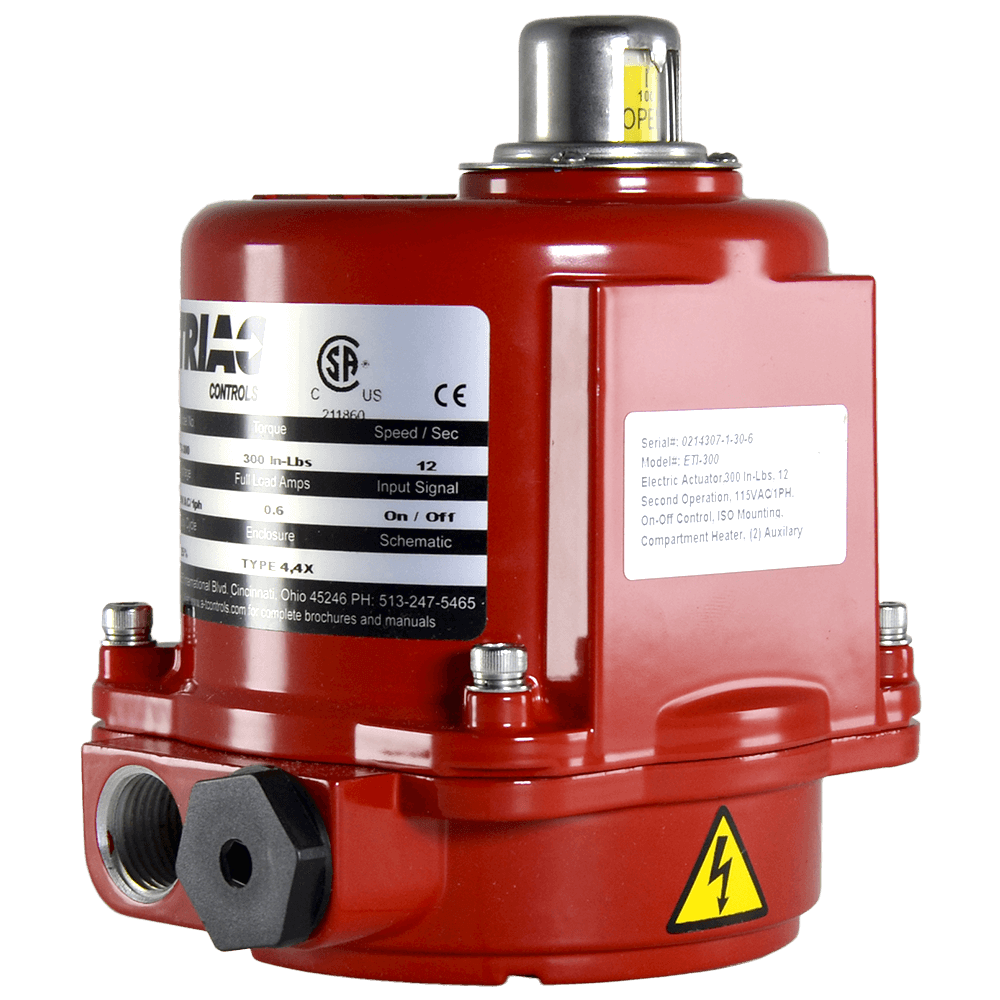

E Series Electric Actuator

Brand: A-T Controls, Inc.
Triac Controls line of electric actuators offers a broad range of torques from 300 to 30,000 in.lbs. and numerous features including manual overrides, auxiliary switches, 4-20 mA modulating control, several voltage options including 1-phase 24/120 V/220 V – 12 and 24 VDC, 3-phase 220 V, 380 V, and 440 V.

The units feature EPI-CYCLICAL gear trains and a unique manual override with handwheel.

All actuators are NEMA 4X and are designed for maximum cycle life due to our rugged motors and gear trains.

As with all Triac actuators, our E Series electrics are available with mounting kits on most ball, butterfly and plug valves.

The actuators are ideal for use on butterfly and louver dampers with the increased benefit of self-locking EPI-CYCLICAL gears, eliminating the need for unreliable solenoid brakes
Features
  • Design: Electric Actuator, E-Series NEMA 4, 4X
  • Actuator Sizes: 300 - 30000 In-Lbs.
  • Models:
  • 115 Vac (220 Vac)
  • 24 Vac (24 Vdc)
  • Adders:
  • 2-Wire Relay
  • Torque Switches
  • 1k/5k Potentiometres
show more
Triac Controls line of electric actuators offers a broad range of torques from 300 to 30,000 in.lbs. and numerous features including manual overrides, auxiliary switches, 4-20 mA modulating control, several voltage options including 1-phase 24/120 V/220 V – 12 and 24 VDC, 3-phase 220 V, 380 V, and 440 V.

The units feature EPI-CYCLICAL gear trains and a unique manual override with handwheel.

All actuators are NEMA 4X and are designed for maximum cycle life due to our rugged motors and gear trains.

As with all Triac actuators, our E Series electrics are available with mounting kits on most ball, butterfly and plug valves.

The actuators are ideal for use on butterfly and louver dampers with the increased benefit of self-locking EPI-CYCLICAL gears, eliminating the need for unreliable solenoid brakes
Features
  • Design: Electric Actuator, E-Series NEMA 4, 4X
  • Actuator Sizes: 300 - 30000 In-Lbs.
  • Models:
  • 115 Vac (220 Vac)
  • 24 Vac (24 Vdc)
  • Adders:
  • 2-Wire Relay
  • Torque Switches
  • 1k/5k Potentiometres
9 models matching criteria

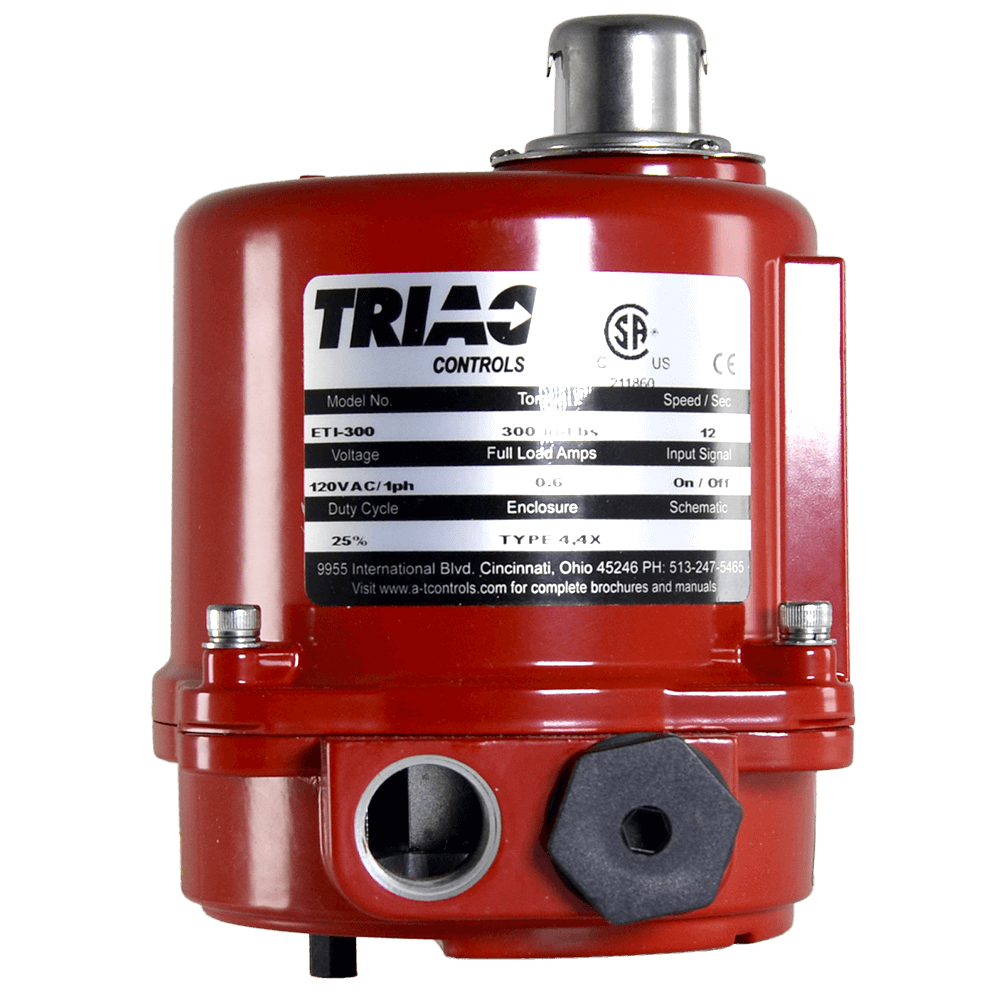

ETI-300
A-T CONTROLS, E-Series Electric Actuators, 115VAC, CSA View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 300 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
4 In Stock
$530.19USD
$14.84 Shipping
KE-440
A-T CONTROLS Electric Actuator KE Series, Weather-Proof,IP67, 440 in-lbs, 110VAC/1PH, On/Off Control View More
  • KE: Weather-proof, IP67 Electric Actuator
  • 440: 440 in-lbs Torque Output

15 Second Cycle Speed

110VAC/1PH

1.2 Rated Amps

On/Off Two Position Control

(2) Auxiliary Limit Switches

Heater & Thermostat

Diecast Aluminum Powder Coated Construction

Manual Override with Wrench

(2) 1/2" NPT Conduit Entries

F05/F07 Mounting Pad

0.551 (14mm) Star Output Drive

Color: Red
1 - 2 weeks
$297.02USD
$14.84 Shipping
ETI-300-24VDC
A-T CONTROLS, Electric Actuators, 4", 24 VDC View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 300 In-Lbs.
  • Motor Voltages: 24 VAC/24 VDC
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
2 - 4 weeks
$435.88USD
$14.84 Shipping
ETI-400
A-T CONTROLS, Electric Actuators, 4" View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 400 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
2 - 4 weeks
$594.05USD
$14.84 Shipping
ETI-400LT
A-T CONTROLS, Electric Actuators, 4", Low Temperature View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 400 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
  • Adders: Low Temperature
2 - 4 weeks
$1,007.65USD
$14.84 Shipping
ETI-700
A-T CONTROLS, Electric Actuators, 700in-Lbs View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 700 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
2 - 4 weeks
$1,277.94USD
$14.84 Shipping
ETI-1300
A-T CONTROLS, Electric Actuators, 1300in-Lbs View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: 2 Position (On/Off) Aluminum Housing
  • Actuator Size: 1300 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
2 - 4 weeks
$1,307.65USD
$14.84 Shipping
EMI-700
A-T CONTROLS, Electric Actuators, 700in-Lbs, Modulating View More
  • Design: Electric Valve Actuator
  • Enclosure & Control: Modulating with 4-20mA Output
  • Actuator Size: 700 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
2 - 4 weeks
$2,076.19USD
$14.84 Shipping
EMI-1300
A-T CONTROLS, Electric Actuator, 1300in-Lbs, Modulating View More
  • EMI: Modulating with 4-20mA Output Electric Valve Actuator
  • 1300: Actuator Size: 1300 In-Lbs.
  • Motor Voltages: 115 VAC, 1 PH, 50-60 HZ
  • Switch Options: Two Auxiliary Limit Switches
  • Manual Wormgear Overrride
  • Temperature Range: -10°F to +160°F (-23°C to +70°C)
2 - 4 weeks
$2,242.53USD
$14.84 Shipping

Specifications

Actuator Type

  • Modulating
  • On-Off

Approvals & Certifications

  • CE
  • CSA

Motor Voltages

  • 115 Vac / 1-Phase / 50/60 Hz
  • 220 Vac / 1-Phase / 50/60 Hz
  • 220 Vac / 3-Phase / 50/60 Hz
  • 24 Vac / 1-Phase
  • 24 Vdc

Mounting

  • ISO /DIN Mounting Configuration
  • ISO 5211 Mounting Patterns

Resistance

  • 0 to 1,000 ohms

Standard Features

  • Visual Position Indicator
