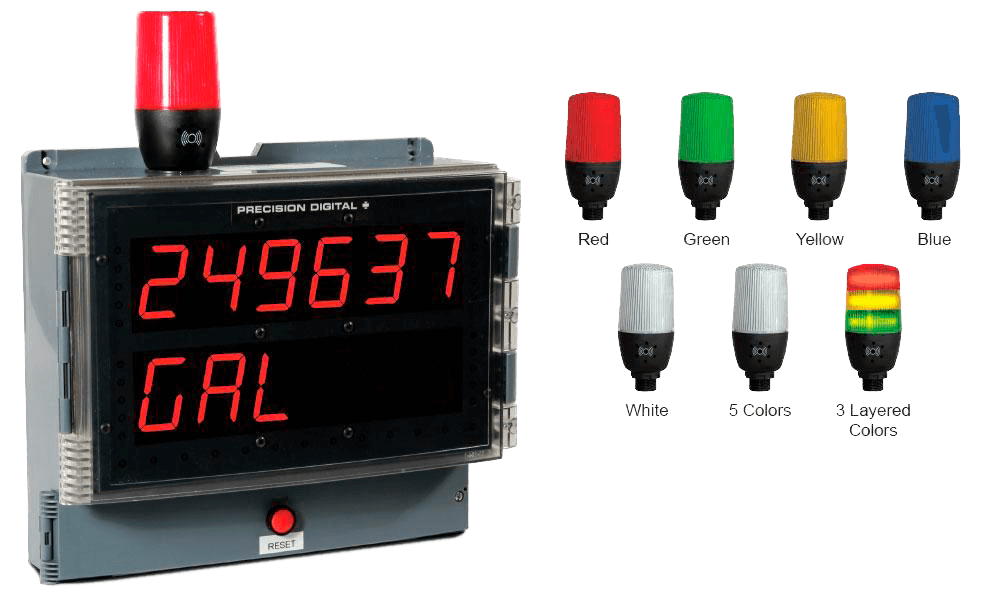

PD2-6400 Helios High Voltage & Current Meter

Brand: Precision Digital Corporation
The Helios large display high voltage and current meter boasts specifications, features and functionality that make it the only large display high voltage and current meter you will ever need.

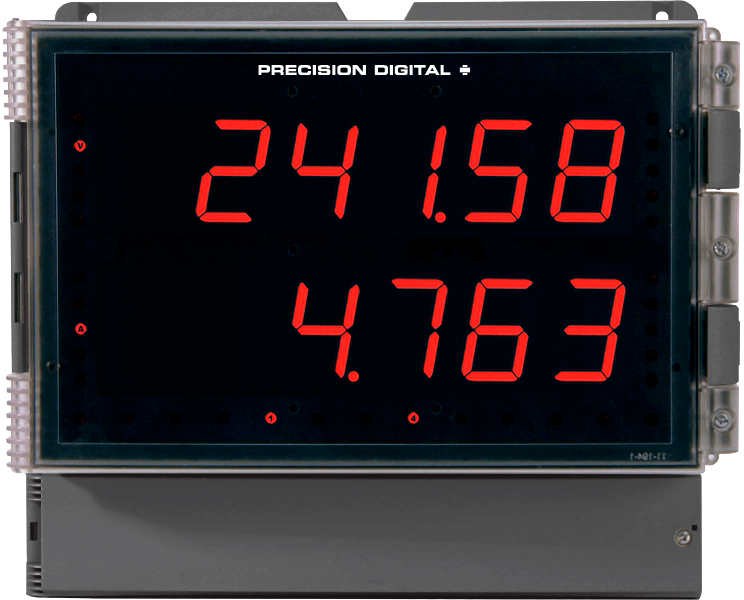

The big, bright 6-digit dual-line LED display that can be seen from 100 feet even in bright sunlight is the first thing you will notice about the Helios.

The dual-line display can be used to display voltage in the range of 0-300 VAC or VDC on one line and 0-5 AAC or ADC on the other line. In addition, a math channel P calculates apparent power as the product of the voltage and current inputs.
Features
  • Large 1.80" Digits
  • Dual-Line 6-digit display
  • Readable from up to 100 feet (30 Meters) away
  • Superluminous sunlight readable display
  • NEMA 4X, IP65 rated field enclosure
  • Operating temperature range of -40° to 65° C (-40° to 150° F)
  • One (1) high voltage and one (1) high current input
  • Multiplication for apparent power calculation
  • 0 to 300 Vac or Vdc voltage input
  • 0 to 5 AAC or ADC current input
  • 85 to 265 Vac, or 12 to 24 Vdc input power models
  • Programmable display & function keys
  • 2 or 4 relays + isolated 4-20 mA output options
  • Onboard USB & RS-485 serial communication options
  • Modbus RTU communication protocol standard
  • Program the meter from a PC with onboard USB and meterView Pro
show more
Images are representations only.
The Helios large display high voltage and current meter boasts specifications, features and functionality that make it the only large display high voltage and current meter you will ever need.

The big, bright 6-digit dual-line LED display that can be seen from 100 feet even in bright sunlight is the first thing you will notice about the Helios.

The dual-line display can be used to display voltage in the range of 0-300 VAC or VDC on one line and 0-5 AAC or ADC on the other line. In addition, a math channel P calculates apparent power as the product of the voltage and current inputs.
Features
  • Large 1.80" Digits
  • Dual-Line 6-digit display
  • Readable from up to 100 feet (30 Meters) away
  • Superluminous sunlight readable display
  • NEMA 4X, IP65 rated field enclosure
  • Operating temperature range of -40° to 65° C (-40° to 150° F)
  • One (1) high voltage and one (1) high current input
  • Multiplication for apparent power calculation
  • 0 to 300 Vac or Vdc voltage input
  • 0 to 5 AAC or ADC current input
  • 85 to 265 Vac, or 12 to 24 Vdc input power models
  • Programmable display & function keys
  • 2 or 4 relays + isolated 4-20 mA output options
  • Onboard USB & RS-485 serial communication options
  • Modbus RTU communication protocol standard
  • Program the meter from a PC with onboard USB and meterView Pro

Specifications

Display

  • Two lines with 1.8" (46 mm) high digits, red LEDs; 6 digits per line (-99999 to 999999), with lead zero blanking

Display Intensity

  • Eight user-selectable intensity levels

Display Update Rate

  • 5/second (200 ms)

Overrange

  • Display flashes 999999

Underrange

  • Display flashes -99999

Display Assignment

  • Displays lines 1 & 2 may be assigned to process values for Channels A (Ch-A, current), V (Ch-V, voltage), or P (Ch-P, apparent power); toggle between (Ch-A & Ch-V, Ch-A & Ch-P, Ch-V & Ch-P, and Ch-A, Ch-V, & Ch-P); relay set points; max and/or min values for CH-A, Ch-V, or Ch-P; CH-A and units; Ch-V and units; Ch-P and units; or Modbus input. The lower display may also be set to show engineering units or be off, with no display.

Noise filter

  • Programmable from 2 to 199 (0 will disable filter)

Filter Bypass

  • Programmable from 0.1 to 99.9% of calibrated span

Recalibration

  • All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months.

Max/Min Display

  • Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.

Passwords restrict modification

  • Pass 1: Allows use of function keys and digital inputs
  • Pass 2: Allows use of function keys, digital inputs and editing set/ reset points
  • Pass 3: Restricts all programming, function keys, and digital inputs

Non-Volatile Memory

  • All programmed settings are stored in non- volatile memory for a minimum of ten years if power is lost.

Power Options

  • 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
  • 12-24 VDC ± 10%, 15 W max. Powered over USB for configuration only.

Fuse

  • Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse

Normal Mode Rejection

  • Greater than 60 dB at 50/60 Hz

Isolation

  • 500 V AC/DC potential allowed between voltage and current input channels. Channels isolated by 3 MΩ impedance 4 kV input/output-to-power line 500 V input-to-output or output- to-P+ supply.

Overvoltage Category

  • Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

  • Storage Temperature Range: -40 to 185° F (-40 to 85° C)
  • Relative humidity: 0 to 90% non-condensing
  • Operating Temperature Range: -40 to 150° F (-40 to 65° C)

Connections

  • Removable and integrated screw terminal blocks accept 12 to 22 AWG wire.

Enclosure

  • UL Type 4X, IP65 rated. Polycarbonate & glass blended plastic case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, black nylon threaded hole plugs with backing nuts.

Wall Mounting

  • Four (4) mounting holes provided for mounting meter to wall

Pipe Mounting

  • Optional pipe mounting kit (PDA6260) allows for pipe mounting. Sold separately. See manual for mounting instructions.

Tightening Torque

  • Removable Screw Terminals: 5 lb-in (0.56 Nm)
  • Digital I/O and RS485 Terminals: 2.2 lb-in (0.25 Nm)

Overall Dimensions

  • 10.63" x 12.59" x 4.77" (270 mm x 319.7 mm x 121.2 mm) (W x H x D)

Weight

  • 6.10 lbs (2.76 kg)

UL File Number

  • UL & C-UL Listed. E160849; 508 Industrial Control Equipment.

Warranty

  • 3 years parts & labor

USB Connection

  • Compatibility: USB 2.0 Standard, Compliant
  • Connector Type: Micro-B receptacle
  • Cable: USB A Male to Micro-B Cable
  • Driver: Microsoft® Windows® XP/Vista/7/8/10
  • Power: USB Port
