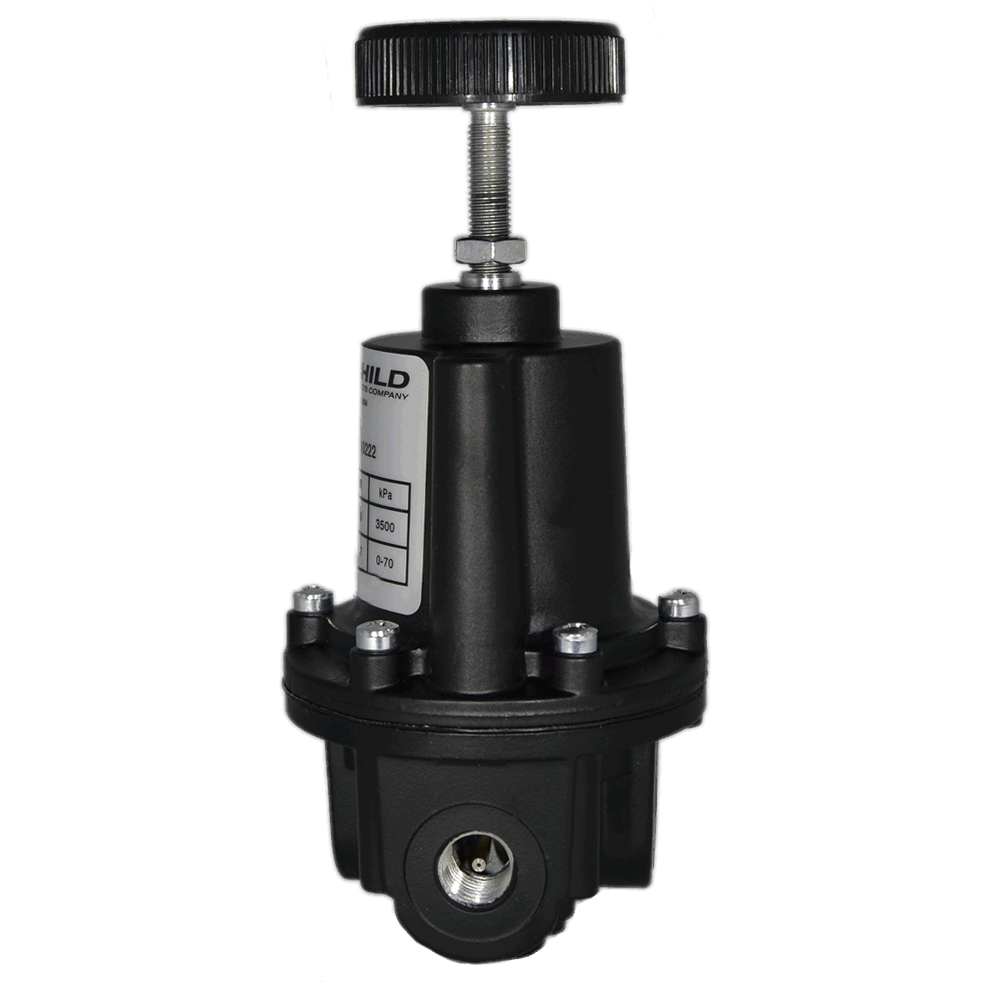

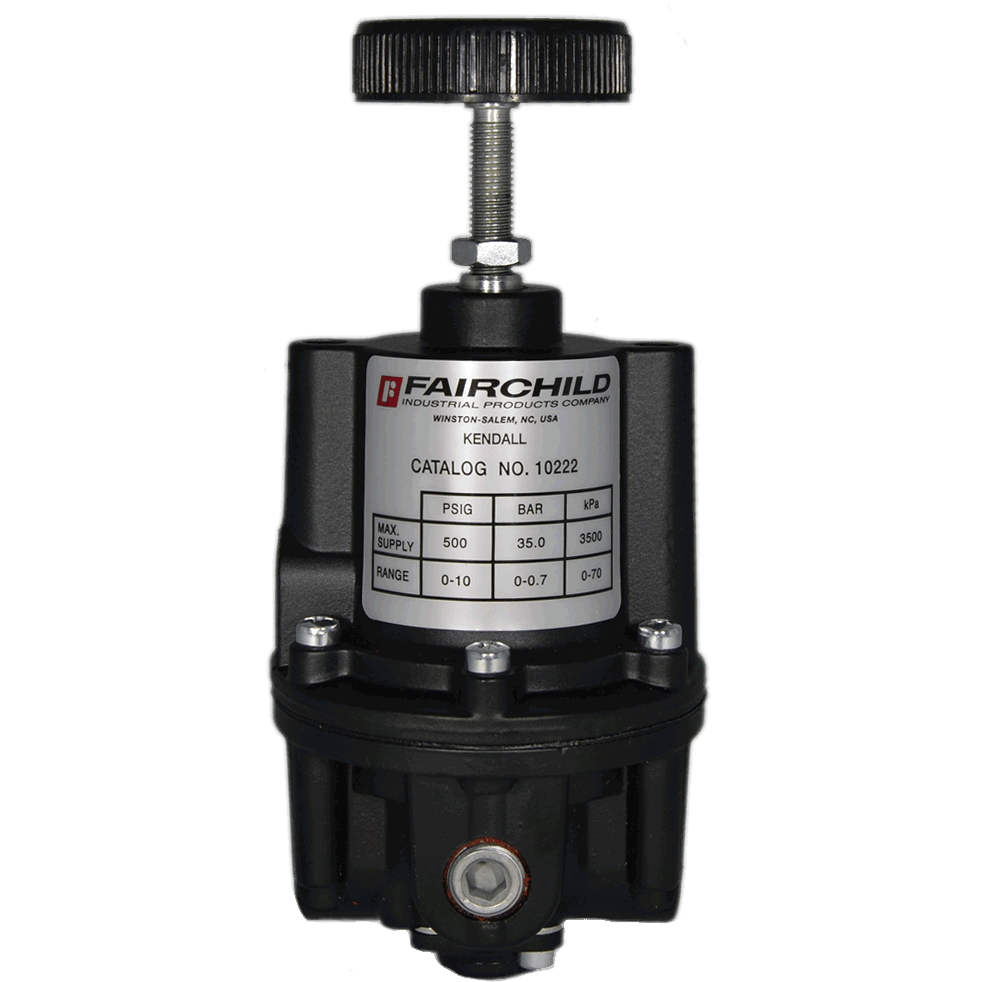

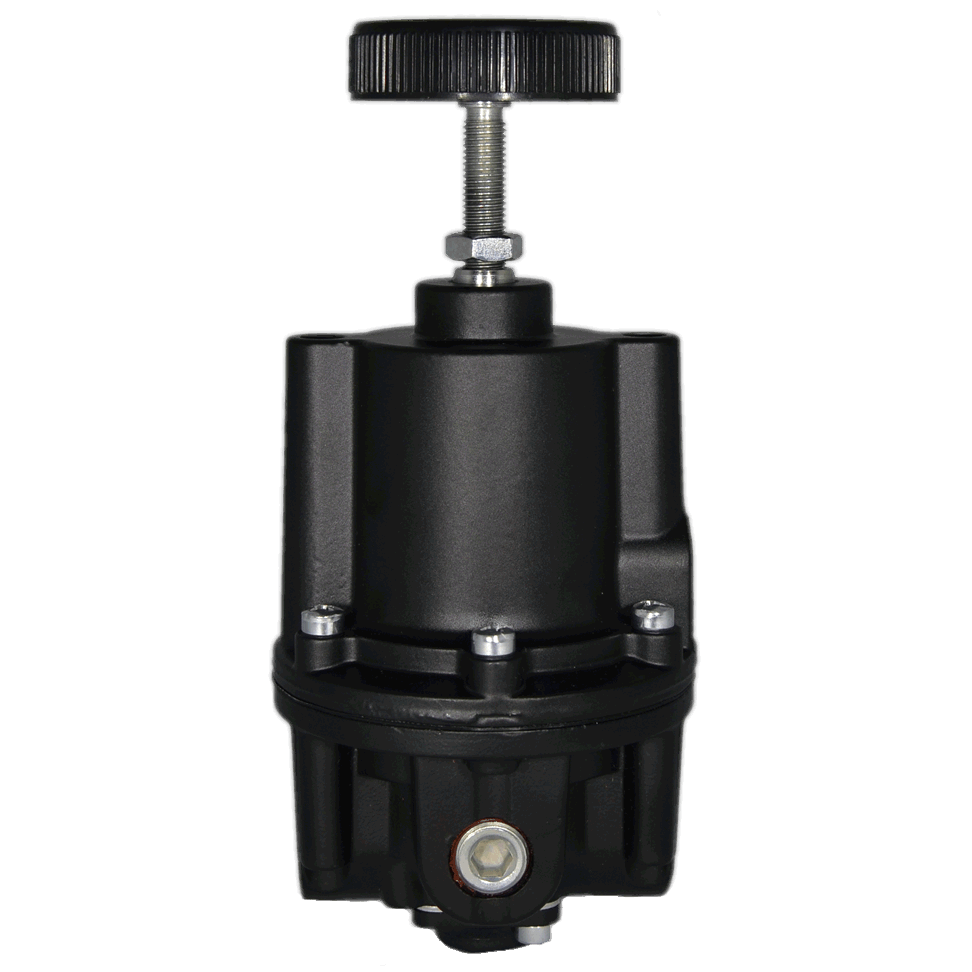

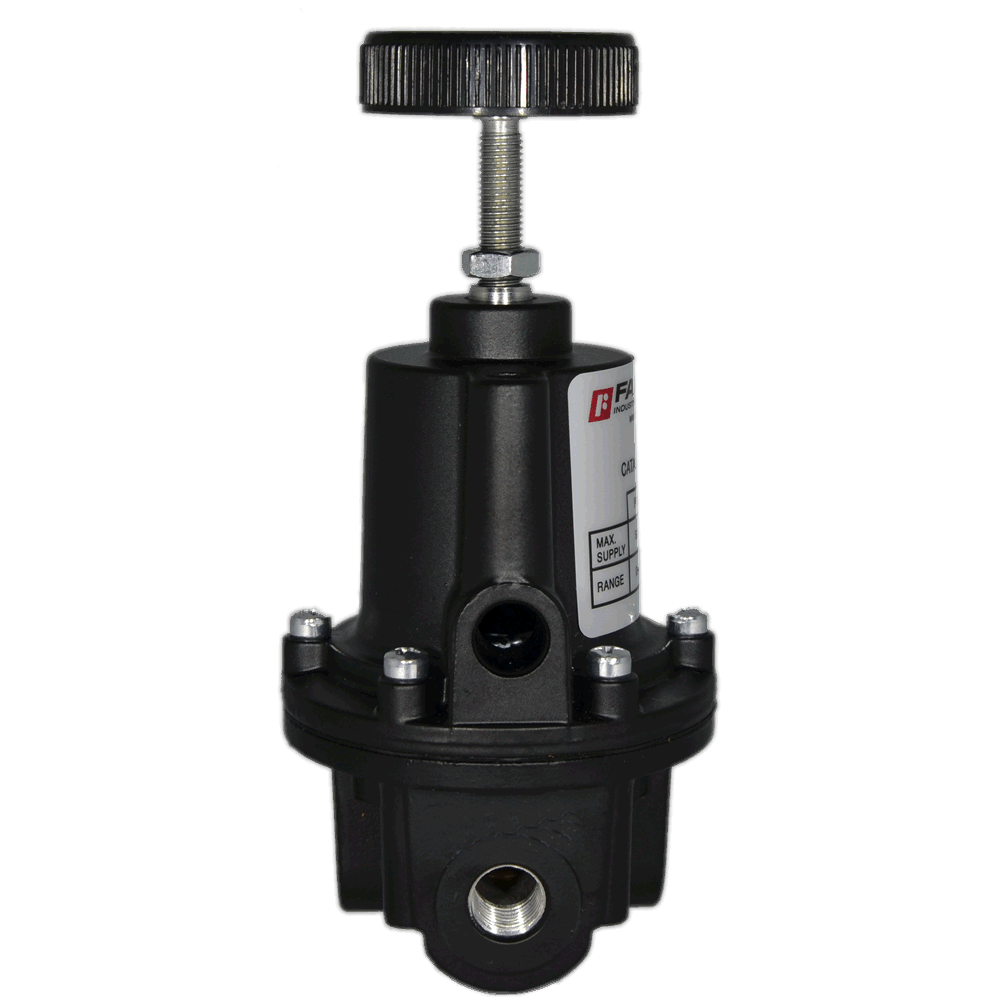

Model 10 Pneumatic Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 10 is a precision pressure regulator designed for applications that require high performance and accurate process control. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

The Model 10 features control sensitivity of 1/8" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 10 pressure regulator will handle a 500 psi, 34 BAR, maximum supply pressure and offers nine (9) output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2,800 kPa. The Model 10 precision regulator offers 40 SCFM, 68 m3/hr flow capacity.

Typical Part Numbers are 10212, 10222, 10232, 10242, 10252, 10262, 10272, 10282, 10292, 10233, 10243, 10253, 10263, 10273, 10283, 10293
Features
  • Control sensitivity of 1/8" water column allows use in precision processes
  • Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Optional check valve permits Backflow of downstream pressure when supply is opened to atmosphere
  • Separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing
  • An aspirator tube compensates downstream pressure droop under flow conditions
  • Canadian Registration Number (CRN) certification for all territories and provinces
  • NO Yellow Metals available for harsh media
show more
Images are representations only.
The Rotork Fairchild Model 10 is a precision pressure regulator designed for applications that require high performance and accurate process control. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

The Model 10 features control sensitivity of 1/8" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 10 pressure regulator will handle a 500 psi, 34 BAR, maximum supply pressure and offers nine (9) output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2,800 kPa. The Model 10 precision regulator offers 40 SCFM, 68 m3/hr flow capacity.

Typical Part Numbers are 10212, 10222, 10232, 10242, 10252, 10262, 10272, 10282, 10292, 10233, 10243, 10253, 10263, 10273, 10283, 10293
Features
  • Control sensitivity of 1/8" water column allows use in precision processes
  • Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Optional check valve permits Backflow of downstream pressure when supply is opened to atmosphere
  • Separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing
  • An aspirator tube compensates downstream pressure droop under flow conditions
  • Canadian Registration Number (CRN) certification for all territories and provinces
  • NO Yellow Metals available for harsh media
159 models matching criteria
10203
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 3/8" NPT
11 In Stock
$185.46USD
$8.27 Shipping
10262
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 1/4" NPT
10 In Stock
$185.46USD
$8.27 Shipping
10242
FAIRCHILD Model 10 Pneumatic Precision Regulator, 1-60 psig, 10-400 kPa, 1/4" NPT
1 In Stock
$185.46USD
$8.27 Shipping
10233
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 3/8" NPT
1 In Stock
$189.60USD
$8.27 Shipping
10232B
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT, Low Bleed
1 In Stock
$206.16USD
$8.27 Shipping
10262N
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 1/4" NPT, Non-Relieving
1 In Stock
$216.93USD
$8.27 Shipping
10263BET
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 3/8" NPT, Low Bleed, Tapped Exhaust, Tamper Proof
1 In Stock
$274.88USD
$8.27 Shipping
10282
FAIRCHILD Model 10 Pneumatic Precision Regulator, 5-300 psig, 35-2100 kPa, 1/4" NPT
1 In Stock
$350.23USD
$8.27 Shipping
10202
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT
8 - 12 days
$185.46USD
$8.27 Shipping
10222
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT
8 - 12 days
$185.46USD
$8.27 Shipping
10222H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" BSPP (Parallel)
8 - 12 days
$185.46USD
$8.27 Shipping
10223
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 3/8" NPT
Out of Stock
$185.46USD
$8.27 Shipping
10223H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 3/8" BSPP (Parallel)
8 - 12 days
$185.46USD
$8.27 Shipping
10232
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT
8 - 12 days
$185.46USD
$8.27 Shipping
10232U
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" BSPT (Tapered)
8 - 12 days
$185.46USD
$8.27 Shipping
10233H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 3/8" BSPP (Parallel)
8 - 12 days
$185.46USD
$8.27 Shipping
10243
FAIRCHILD Model 10 Pneumatic Precision Regulator, 1-60 psig, 10-400 kPa, 3/8" NPT
8 - 12 days
$185.46USD
$8.27 Shipping
10243H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 1-60 psig, 10-400 kPa, 3/8" BSPP (Parallel)
8 - 12 days
$185.46USD
$8.27 Shipping
10262U
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 1/4" BSPT (Tapered)
8 - 12 days
$185.46USD
$8.27 Shipping
10263
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 3/8" NPT
8 - 12 days
$185.46USD
$8.27 Shipping
10263B
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 3/8" NPT, Low Bleed
8 - 12 days
$187.95USD
$8.27 Shipping
10212
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT
8 - 12 days
$196.23USD
$8.27 Shipping
10212H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" BSPP (Parallel)
8 - 12 days
$196.23USD
$8.27 Shipping
10212U
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" BSPT (Tapered)
8 - 12 days
$196.23USD
$8.27 Shipping
10213
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 3/8" NPT
8 - 12 days
$196.23USD
$8.27 Shipping

Model 10

Pressure Range

Port Size

Port Thread

Elastomers

  • view details

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Relief

Exhaust Port

Mounting

Output Options

Output Options

Output Options

Output Options

Output Options

Output Options

Output Options

Yellow Metals

Typical Applications

  • General Industrial
  • Packaging
  • Conveyance
  • Production Lines
  • Assembly

Markets
  • Factory Automation
  • Automotive
  • Heavy Industries
