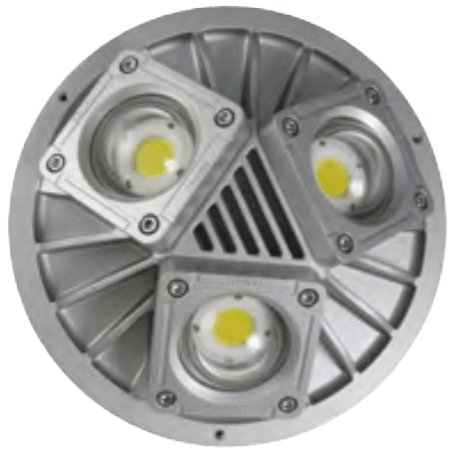

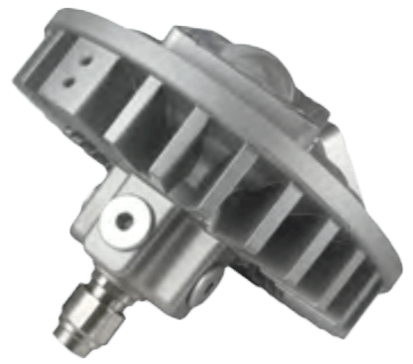

L1303C (COB) Explosion-Proof LED Light

Brand: Top Hi-Tech Inc.
Specification:
  • Volt.: 24 V / 110 V / 220 V AC
  • Watt.: 30 W / 60 W / 90 W (Watts of 24 V are different)
  • Amps: 30 W (0.14 ~ 1.25 A) / 60 W (0.27 ~ 2.5 A) / 90 W (0.41 ~ 3.75 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature: -20° C ~ +40° C, T6
Degree of Protection - IP68 / NEMA 6P
TS Certification
  • Ex d IIC T6 Gb
  • Ex tb IIIC T85˚C Db
Features
  • Wide Angle Illumination Design
  • Waterproof and Dustproof
  • Salt spray 1000 hrs passed
 Applicable Location
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
show more
Images are representations only.
Specification:
  • Volt.: 24 V / 110 V / 220 V AC
  • Watt.: 30 W / 60 W / 90 W (Watts of 24 V are different)
  • Amps: 30 W (0.14 ~ 1.25 A) / 60 W (0.27 ~ 2.5 A) / 90 W (0.41 ~ 3.75 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature: -20° C ~ +40° C, T6
Degree of Protection - IP68 / NEMA 6P
TS Certification
  • Ex d IIC T6 Gb
  • Ex tb IIIC T85˚C Db
Features
  • Wide Angle Illumination Design
  • Waterproof and Dustproof
  • Salt spray 1000 hrs passed
 Applicable Location
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22

Specifications

Approvals & Certifications

  • TS

Beam

  • Beam Angle ≥ 110°

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP67
  • IP68
  • NEMA 6
  • NEMA 6P

Frequency

  • 50/60 Hz

Lens

  • Tempered Glass - IEC Standards Impact Resistant > 4 Joule

Lumens

  • Lum/Watt: ≥ 100 (Cool White), ≥ 90 (Warm White)

Operating Temperature

  • -20° to 40° C (-4° to 104° F)

Screw Material

  • Stainless Steel

Voltage

  • 24-220 Vac

Wattage

  • 30 W ((24 V Not Available) / 60 W / 90 W
