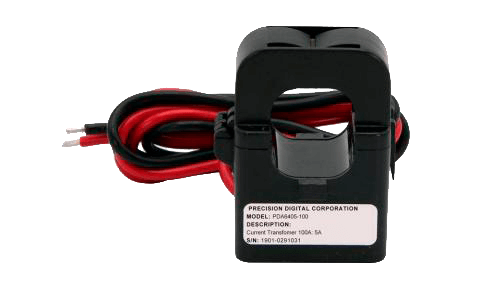

PDA6405 Split Core AC Current Transformers

Brand: Precision Digital Corporation
The PDA6405 Current Transformers convert the high current flowing through a cable or wire to a 0-5 A output and are available in ranges of 100, 200, 400, 600, and 1000 Amps. These nonintrusive devices feature split core convenience for easy installation and are a cost-effective solution for monitoring load or proof of operation. These current transformers are ideal for monitoring current loads on pumps, driving fans and blowers, and sensing the status of heating coils and lighting.
Features
  • 100A, 200A, 400A, 600A, and 1000A Ranges
  • 0-5A Output
  • Split Core Convenience
  • Compact Design
  • 1% Accuracy
  • UL recognized for US and Canada (E341727)
show more
Images are representations only.
The PDA6405 Current Transformers convert the high current flowing through a cable or wire to a 0-5 A output and are available in ranges of 100, 200, 400, 600, and 1000 Amps. These nonintrusive devices feature split core convenience for easy installation and are a cost-effective solution for monitoring load or proof of operation. These current transformers are ideal for monitoring current loads on pumps, driving fans and blowers, and sensing the status of heating coils and lighting.
Features
  • 100A, 200A, 400A, 600A, and 1000A Ranges
  • 0-5A Output
  • Split Core Convenience
  • Compact Design
  • 1% Accuracy
  • UL recognized for US and Canada (E341727)
5 models matching criteria
PDA6405-100
100 A
Out of Stock
PDA6405-1000
1000 A
Out of Stock
PDA6405-200
200 A
Out of Stock
PDA6405-400
400 A
Out of Stock
PDA6405-600
600 A
Out of Stock

Specifications

Current Range

  • 100 A
  • 200 A
  • 400 A
  • 600 A
  • 1000 A

Output

  • 0-5 A

Accuracy

  • +/- 1%

Burden

  • 2 VA

Insulation Voltage

  • CAT IV 250
  • CAT III 600 VAC

Maximum Primary Voltage

  • 5000 VAC (Insulated Conductor)

Phase Angle

  • Less than 2 degrees at 50% of rated current

Frequency Range

  • 50/60 Hz

Operating Temperature

  • -40 to 55° C

Humidity

  • 0-95% RH non-condensing, Indoor use only

Pollution Degree

  • 2

Leads

  • 18 AWG 1.0 m cable

UL File Number

  • UL recognized for US and Canada (E341727)

Input

  • PDA6405-600: 600 A
  • PDA6405-1000: 1000 A
  • PDA6405-400: 400 A
  • PDA6405-200: 200 A
  • PDA6405-100: 100 A

Overall Dimensions

  • PDA6405-100: 2.6" x 1.8" x 1.4" (65 mm x 46 mm x 35 mm)
  • PDA6405-200: 2.6" x 1.8" x 1.4" (65 mm x 46 mm x 35 mm)
  • PDA6405-400: 3.3" x 2.2" x 1.6" (85 mm x 57 mm x 41 mm)
  • PDA6405-600: 3.3" x 2.2" x 1.6" (85 mm x 57 mm x 41 mm)
  • PDA6405-1000: 4.7" x 3.1" x 2.4" (120 mm x 80 mm x 60 mm)

Opening Dimensions

  • PDA6405-100: 0.9" X 0.9" (24 mm X 24 mm)
  • PDA6405-200: 0.9" X 0.9" (24 mm X 24 mm)
  • PDA6405-400: 1.4" X 1.4" (36 mm X 36 mm)
  • PDA6405-600: 1.4" X 1.4" (36 mm X 36 mm)
  • PDA6405-1000: 2.0" X 2.0" (50 mm X 50 mm)

Weight

  • PDA6405-100: 8 oz (227 g)
  • PDA6405-200: 8 oz (227 g)
  • PDA6405-400: 13.6 oz (385 g)
  • PDA6405-600: 15.2 oz (430 g)
  • PDA6405-1000: 2.2 lb (1 kg)
