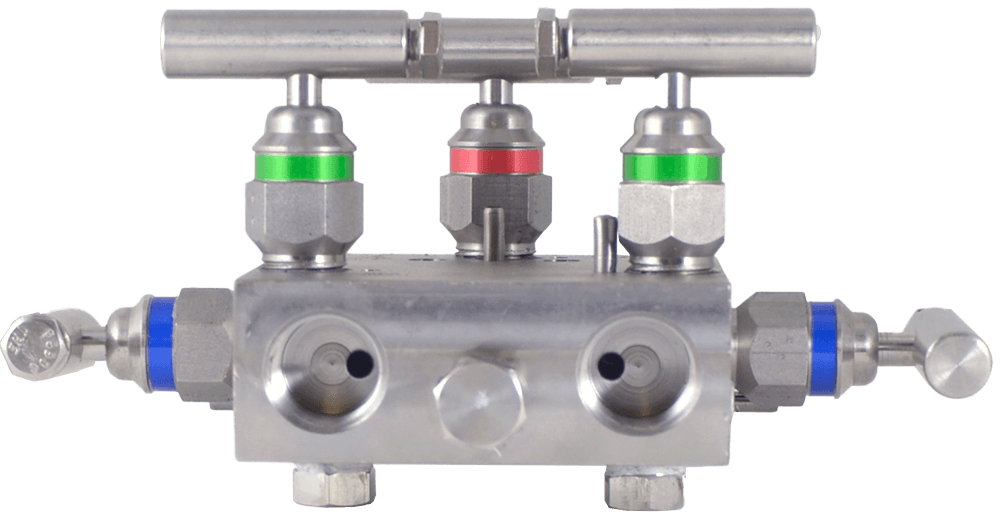

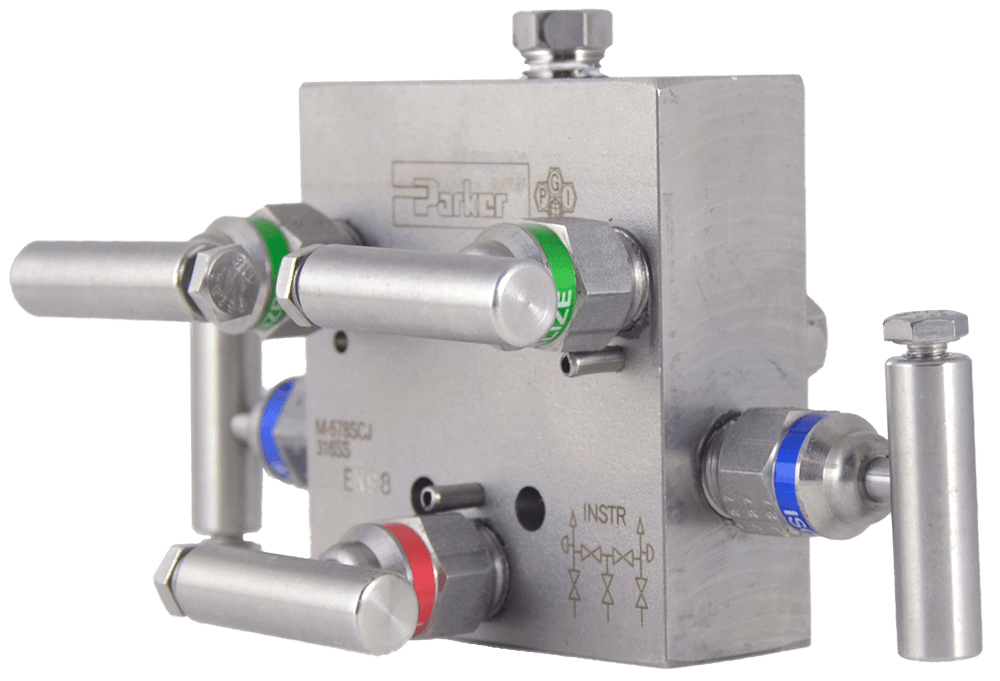

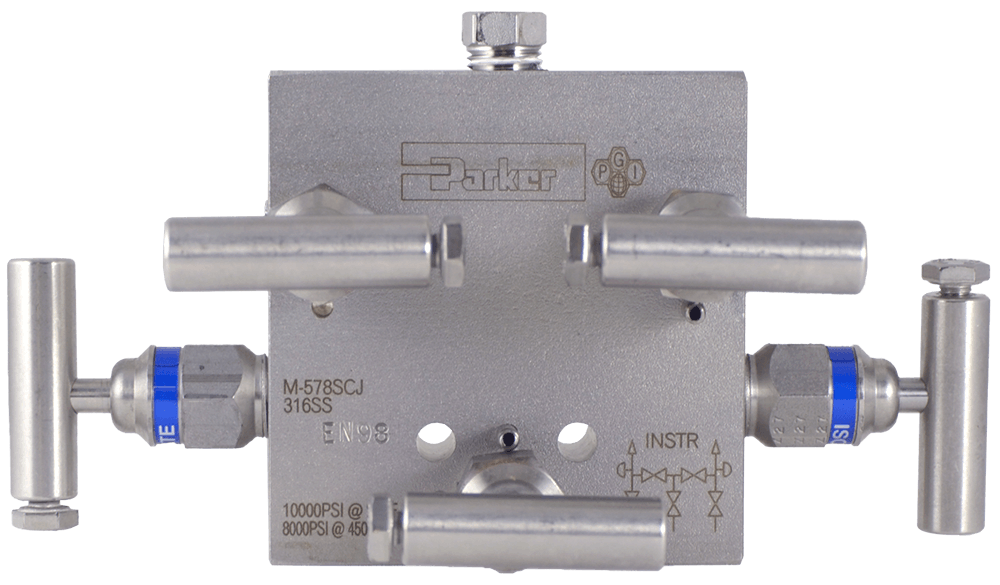

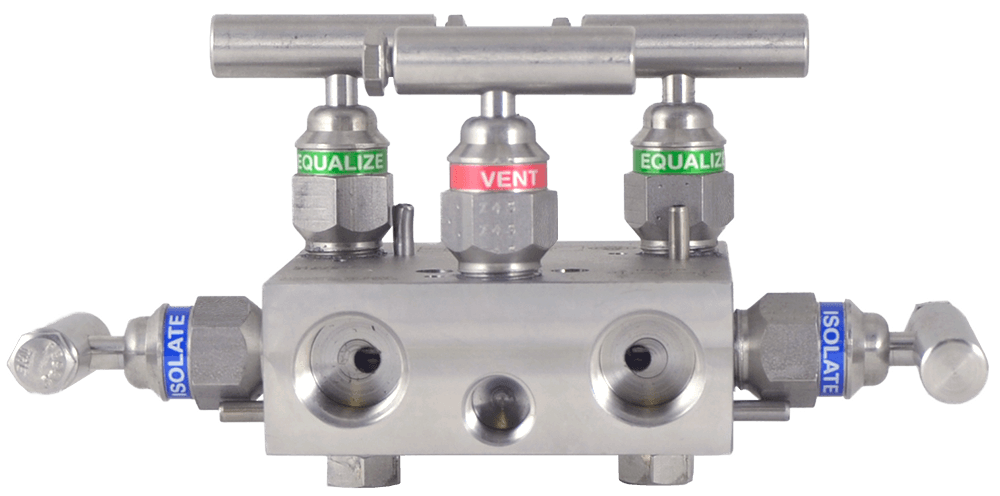

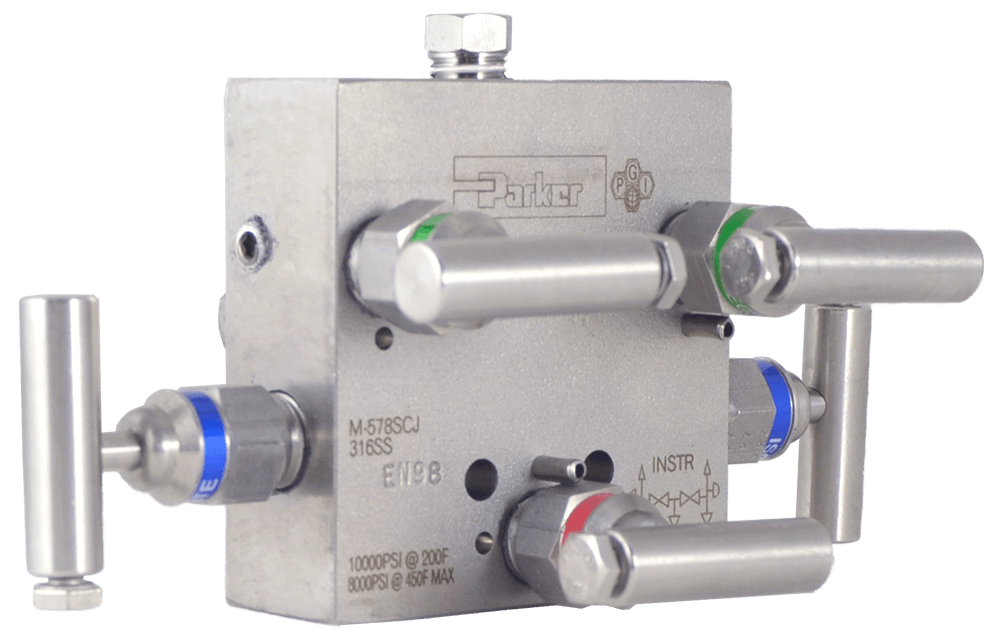

M-578 Five-Valve Manifold

Brand: PGI International
  • Design: Hard Seat Five-Valve Wide Pattern Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female
  • Test Ports: 1/4" NPT
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 6000 psi @ +200°F (+93°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Unique configuration for "no finger pinching" operation of all five valves
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
show more
Images are representations only.
  • Design: Hard Seat Five-Valve Wide Pattern Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female
  • Test Ports: 1/4" NPT
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 6000 psi @ +200°F (+93°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Unique configuration for "no finger pinching" operation of all five valves
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
M-578-SCJ
PGI 5-Valve Manifold, SST, 1/2" NPT x 1/2" NPT, 0.187 Orifice, Carbide Ball, Teflon Core, NACE
1 - 2 weeks
$624.28USD
$8.27 Shipping

M-578

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material
