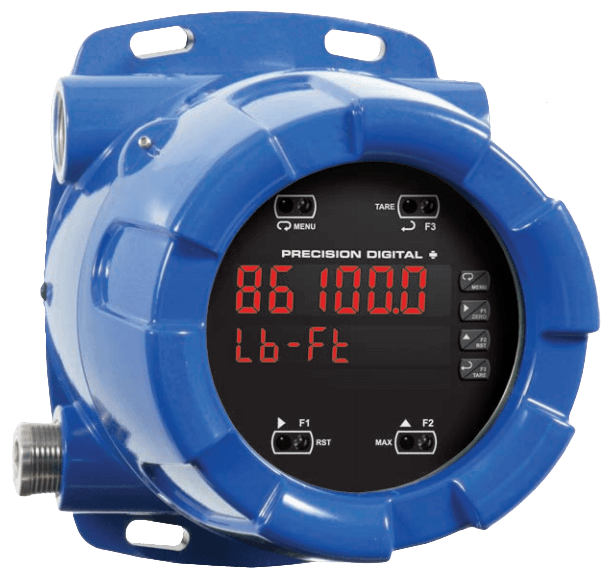

PD8-6100 ProtEX-MAX Explosion-Proof Strain Gauge, Load Cell & mV Meter

Brand: Precision Digital Corporation
The ProtEX-MAXTM PD8-6100 offers all the functionality of the ProVu PD6100 as a fully FM, CSA, ATEX, and IECEx approved explosion-proof product.

It accepts strain gauge & load cell inputs and mV signals up to 300 mV (unipolar) and ± 250 mV (bipolar) for weight and force measurement applications.

The PD8-6100 strain gauge meter's dual-line display and powerful dual-scale capability allows the measurement to be displayed in two different units of measure. Another use for the PD8-6100's dual-lines is to simply display the units of measure on the bottom line.

SafeTouch® through-glass buttons allow for access to zero, tare, and other functions without the need to remove the enclosure cover.

The PD8-6100 includes a 5 or 10 VDC power supply to drive the sensors and can be equipped with four internal relays and two 4-20 mA outputs.
Features
  • SunBright Display Standard
  • Selectable 5 or 10 VDC excitation power supply
  • Capture or programmable tare feature
  • Ratiometric operation
  • Dual-scale feature - single input
  • Rounding function 1, 2, 5, 10, 20, 50, or 100
  • Auto-zero feature eliminates zero drift
  • SafeTouch® through-glass button programming
  • Modbus RS-485 serial communications
  • Flanges for wall or pipe mounting
  • Onboard USB and MeterView® Pro programming software
show more
The ProtEX-MAXTM PD8-6100 offers all the functionality of the ProVu PD6100 as a fully FM, CSA, ATEX, and IECEx approved explosion-proof product.

It accepts strain gauge & load cell inputs and mV signals up to 300 mV (unipolar) and ± 250 mV (bipolar) for weight and force measurement applications.

The PD8-6100 strain gauge meter's dual-line display and powerful dual-scale capability allows the measurement to be displayed in two different units of measure. Another use for the PD8-6100's dual-lines is to simply display the units of measure on the bottom line.

SafeTouch® through-glass buttons allow for access to zero, tare, and other functions without the need to remove the enclosure cover.

The PD8-6100 includes a 5 or 10 VDC power supply to drive the sensors and can be equipped with four internal relays and two 4-20 mA outputs.
Features
  • SunBright Display Standard
  • Selectable 5 or 10 VDC excitation power supply
  • Capture or programmable tare feature
  • Ratiometric operation
  • Dual-scale feature - single input
  • Rounding function 1, 2, 5, 10, 20, 50, or 100
  • Auto-zero feature eliminates zero drift
  • SafeTouch® through-glass button programming
  • Modbus RS-485 serial communications
  • Flanges for wall or pipe mounting
  • Onboard USB and MeterView® Pro programming software
PD8-6100-7H3
PRECISION DIGITAL PD8-6100 ProtEX-MAX Strain Gauge, Load Cell & mV Meter 4-20 mA Output
5 - 10 days
$1,824.98USD
$7.95 Shipping

Specifications

Accuracy

  • ± 0.03%

Approvals & Certifications

  • ATEX, II 2 GD Ex D IIC T* Gb Ex Tb IIIC T90° C Db
  • CSA Class I, Division 1, Groups B, C, D, Class II, Division 1, Groups E, F, G Class III, Division 1, Class I, Zone 1 Ex D IIC Zone 21 Ex Tb IIIC T90° C
  • FM Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Class III, Division 1, T5/T6 Class I, Zone 1, AEx D, IIC Gb T5/T6 Zone 21, AEx Tb IIIC T90° C
  • IEC Ex D IIC T* Gb Ex Tb IIIC T90° C Db

Communication

  • Modbus

Display

  • 6-Digit Display

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X
  • NEMA 7
  • NEMA 9

Input

  • 0 to 10 mA
  • 0-20 mA

Operating Temperature

  • -40° to 65° C (-40° to 150° F)

Operating Voltages

  • 50/60 Hz

Power Supply

  • 12-36 Vdc
  • 85-265 Vac

Relay Output

  • 2 or 4 SPDT
  • 4 SPST

Update Time

  • 5 seconds
