The PDA2360 series of plastic control stations provide a convenient way to remotely control devices such as Precision Digital’s digital meters and controllers.

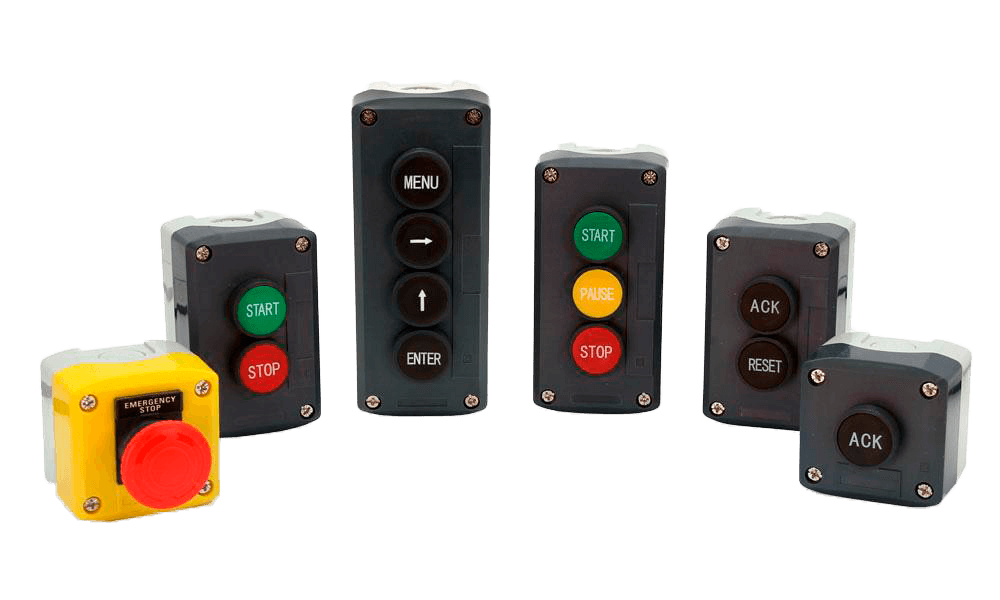

For instance, there is a four-position control station that mimics the ProVu and Helios’s four buttons: Menu, Right Arrow, Up Arrow, and Enter.
There are other control stations that can be used to reset the total, acknowledge relays, set a tare, and run a batch process.
There are even control stations with no text on the buttons that can be used for any purpose the user requires.
An emergency stop control station is also available.
The control stations come pre-assembled with 1, 2, or 4 Normally Open: NO red, green, or black pushbuttons.
Knockouts on the top and bottom of the enclosure are provided for convenient wiring and two mounting holes on the back of the enclosure make it easy for wall mounting.
Features- Complete Pre-Assembled Stations
- Fitted with 1 to 4 Normally Open (NO) Spring Return Plastic Bezel Pushbuttons
- Trigger Action Turn to Release Pushbutton (PDA2360-E only)
- IP65 / NEMA 4, 4X and 13 Rated
- Button Text for: Start, Stop, Pause, Batch, Acknowledge, Tare, Silence, or Emergency Stop Functions or Blank
- Four-Position Control Station for Remote Operation of ProVu and Helios Buttons
- Wall Mountable
Configure
Specifications
Specifications
Pushbuttons
- Control Station with 1-4 Normally Open (NO)
- Button Diameter: 1.5” (38 mm)
- Emergency Stop Control Station: 1 Red, latching, mushroom Head pushbutton, turn to release
- Button Diameter: 1.13” (29 mm)
- buttons: Red, Green, or Black flush spring return pushbuttons.
Electrical Blocks
- 1, 2, 3, or 4 mounted to the inside back of the enclosure
Cable Entries
- Maximum capacity: 0.47” (12 mm)
- Knock-outs for cable-gland on top and bottom of box (CM 12, PG 13.5, and ISO 20)
Environment
- Protection Degree: IP65 (IEC 529) and NEMA 4, 4X and 13.
- Operating Temperature Range: - 25 to + 70° C
Material
- Yellow lid, light gray base on emergency Control Station
- Polycarbonate, color: dark gray lid, light gray base on 1-4 Button Control Stations
Switch Terminal Blocks
- Mechanical Durability: > 3 x 10^4 (Spring return Button) > 5 x 10^3 (Latching emergency Button)
- Contact Resistance: < 50 mohm
- Rated Capacity: 240 V/3A (AC-15 per IEC 947-5-1) 110 V/0.6 A (DC-14 per IEC 947-5-1)
Weight
- Control Box with 2 Buttons: 6.4 oz. (181 g)
- Control Box with 1 emergency Button: 4.8 oz. (136 g)
- Control Box with 1 Button: 4.0 oz. (113 g)
- Control Box with 3 Buttons: 8.0 oz. (227 g)
- Control Box with 4 Buttons: 10.4 oz. (295 g)
