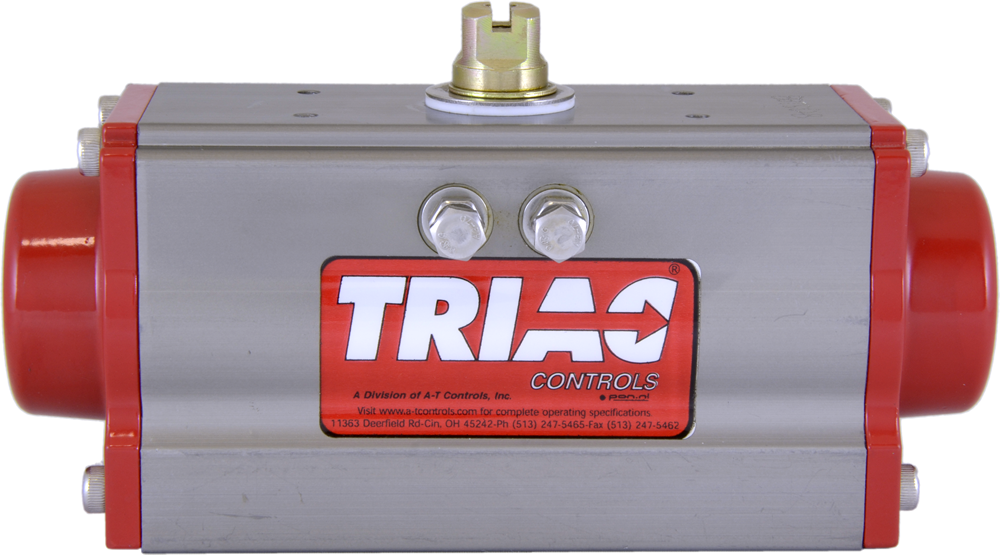

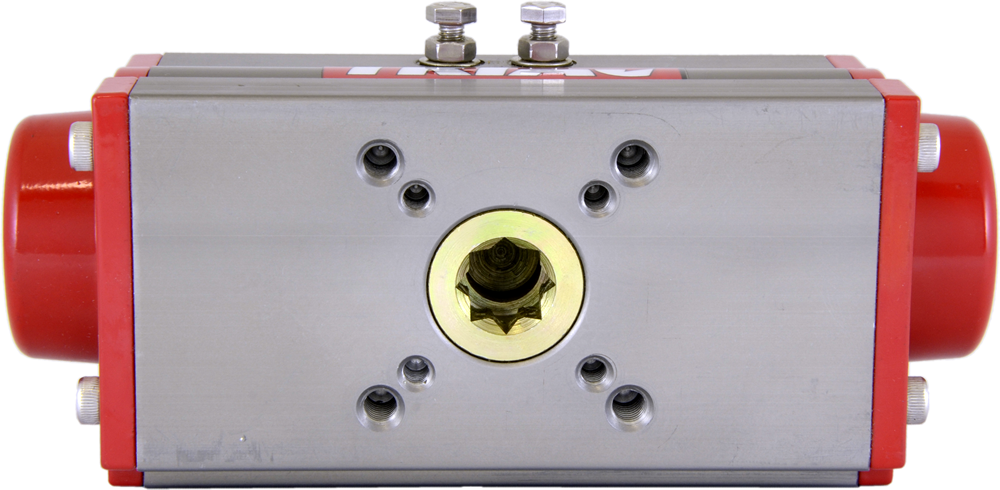

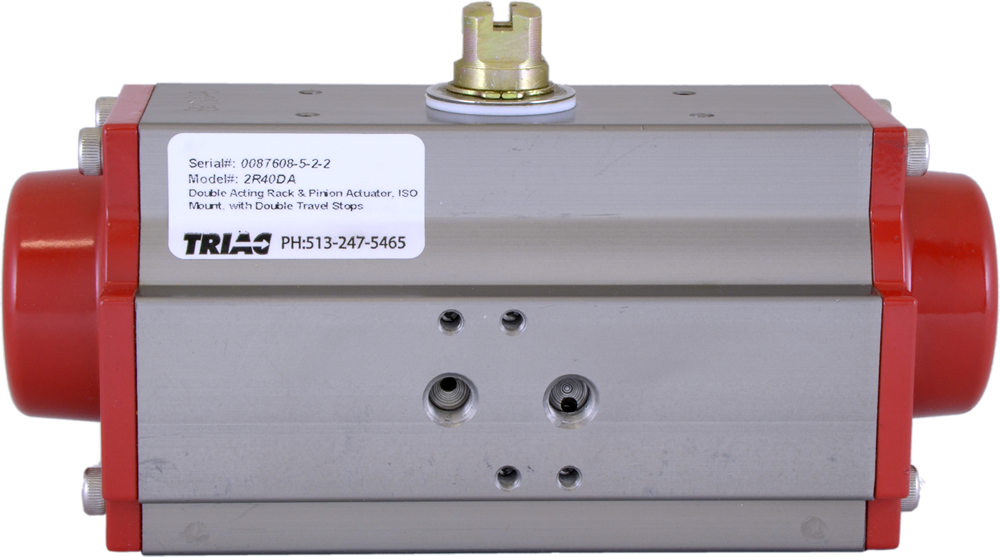

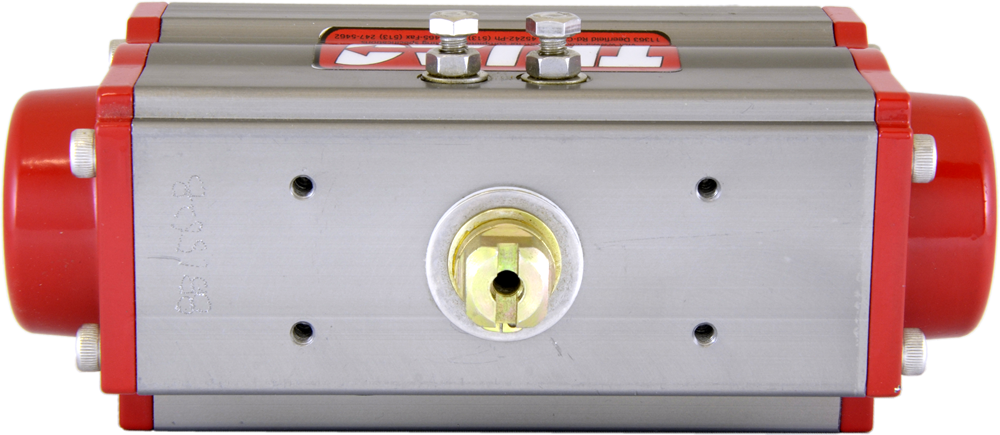

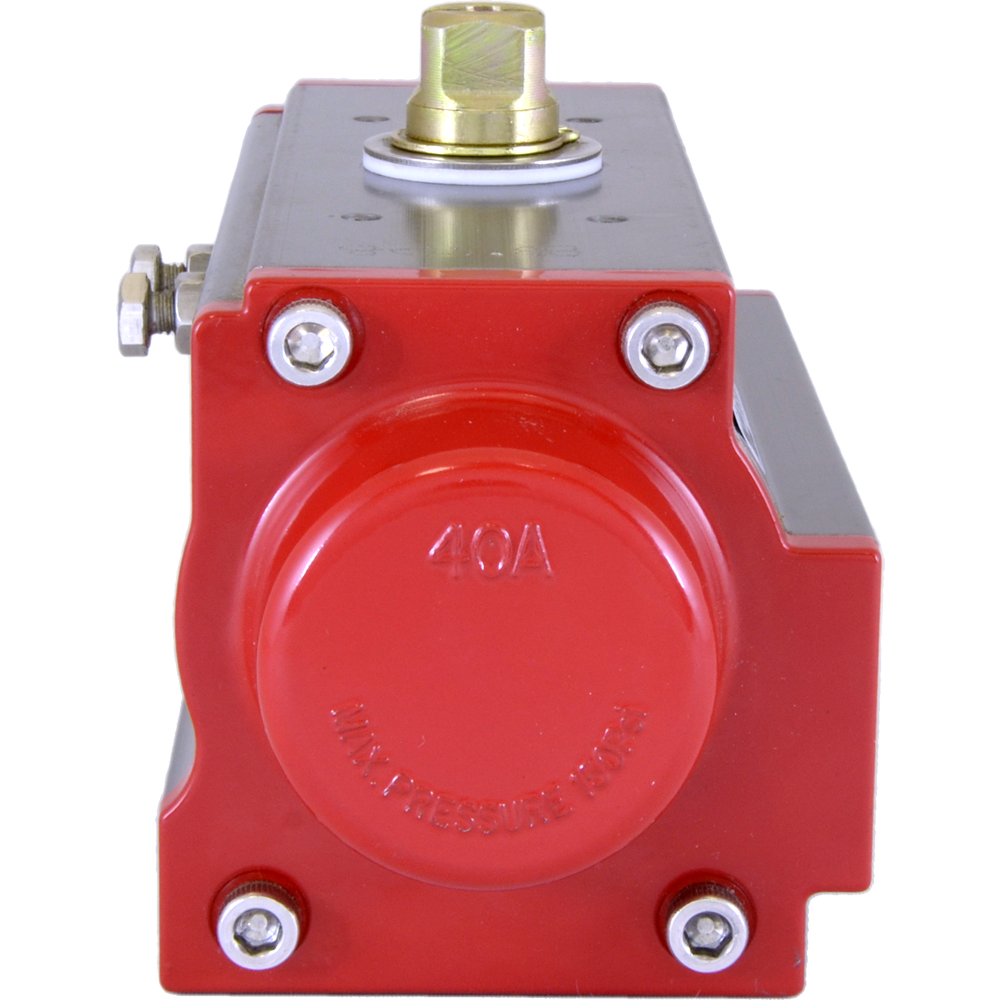

Rack & Pinion Pneumatic Actuator

Brand: A-T Controls, Inc.
Triac pneumatic rack and pinion actuators are designed and manufactured to provide the highest cycle-life on the market.

We can accessorize them to accomplish virtually any control requirement. They are available with various mounting dimension configurations and span eleven models for appropriate torque compatibility. Our extensive inventory and engineering capabilities allow us to respond to your needs with flexibility. We pride ourselves on exceeding customer expectations.
Features
  • Double acting and spring return
  • Dual travel stops
  • Torques to 36,000 in.lbs.
  • DA and SR common end caps
  • ISO 5211 mounting dimensions
  • Wide base for direct mount to many butterfly valves
  • Substantial pinion bearings mean high cycle life
  • Corrosion resistant hard anodized finish
  • Each unit serialized and bar coded
  • Namur accessory mounting configuration
  • Custom Accessory Mounting Rotary Rack & Pinion Actuators
show more
Images are representations only.
Triac pneumatic rack and pinion actuators are designed and manufactured to provide the highest cycle-life on the market.

We can accessorize them to accomplish virtually any control requirement. They are available with various mounting dimension configurations and span eleven models for appropriate torque compatibility. Our extensive inventory and engineering capabilities allow us to respond to your needs with flexibility. We pride ourselves on exceeding customer expectations.
Features
  • Double acting and spring return
  • Dual travel stops
  • Torques to 36,000 in.lbs.
  • DA and SR common end caps
  • ISO 5211 mounting dimensions
  • Wide base for direct mount to many butterfly valves
  • Substantial pinion bearings mean high cycle life
  • Corrosion resistant hard anodized finish
  • Each unit serialized and bar coded
  • Namur accessory mounting configuration
  • Custom Accessory Mounting Rotary Rack & Pinion Actuators
30 models matching criteria
HARDWARE
A-T CONTROLS Hardware, including nuts and bolts
2 In Stock
$12.50 USD $4.94USD
$8.22 Shipping
2R40DA
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Double Acting, Buna Seals (-5°F to 175°F)
2 - 4 weeks
$221.34USD
$8.22 Shipping
2R40SR
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 5 Springs per Side
2 - 4 weeks
$244.38USD
$8.22 Shipping
2R80DA
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Double Acting, Buna Seals (-5°F to 175°F)
2 - 4 weeks
$276.47USD
$8.22 Shipping
2R80SR
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 5 Springs per Side
2 - 4 weeks
$320.08USD
$8.22 Shipping
2R300DA
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Double Acting, Buna Seals (-5°F to 175°F)
2 - 4 weeks
$408.94USD
$8.22 Shipping
2RKLT3500
A-T CONTROLS Rebuild Kit for Pneumatic Rack & Pinion Actuator, Low Temperature Buna Seals (-45°F to 175°F)
2 - 4 weeks
$423.75USD
$8.22 Shipping
2R130SR
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 5 Springs per Side
2 - 4 weeks
$434.45USD
$8.22 Shipping
2R80SR-LT
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Low Temperature Buna Seals (-45°F to 175°F), 5 Springs per Side
2 - 4 weeks
$446.79USD
$8.22 Shipping
2R200SR
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 5 Springs per Side
2 - 4 weeks
$501.10USD
$8.22 Shipping
2K200SR
A-T CONTROLS Series 2K Pneumatic Actuator, Direct Mount to Keystone Valve, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 5 Springs per Side
2 - 4 weeks
$543.06USD
$8.22 Shipping
2R300SR
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 5 Springs per Side
2 - 4 weeks
$638.51USD
$8.22 Shipping
2R500DA
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Double Acting, Buna Seals (-5°F to 175°F)
2 - 4 weeks
$644.27USD
$8.22 Shipping
2R300DAV
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Double Acting, Viton Seals (0°F to 300°F)
2 - 4 weeks
$742.18USD
$8.22 Shipping
2R500SR
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 5 Springs per Side
2 - 4 weeks
$765.22USD
$8.22 Shipping
2R500SR-LT
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Low Temperature Buna Seals (-45°F to 175°F), 5 Springs per Side
2 - 4 weeks
$981.62USD
$8.22 Shipping
2R850SR
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 5 Springs per Side
2 - 4 weeks
$1,411.96USD
$8.22 Shipping
2R850SR6
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 6 Springs per Side
2 - 4 weeks
$1,500.82USD
$8.22 Shipping
2R850SO-LT
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Counter-Clockwise), Low Temperature Buna Seals (-45°F to 175°F), 5 Springs per Side
2 - 4 weeks
$1,757.54USD
$8.22 Shipping
2R1200SR
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 5 Springs per Side
2 - 4 weeks
$2,001.92USD
$8.22 Shipping
2R1750SR-LT
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Low Temperature Buna Seals (-45°F to 175°F), 5 Springs per Side
2 - 4 weeks
$2,595.99USD
$8.22 Shipping
2R2500SR
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 5 Springs per Side
2 - 4 weeks
$3,574.32USD
$8.22 Shipping
2R2500SR-LT
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Low Temperature Buna Seals (-45°F to 175°F), 5 Springs per Side
2 - 4 weeks
$3,901.81USD
$8.22 Shipping
2R1200SRLT6
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Low Temperature Buna Seals (-45°F to 175°F), 6 Springs per Side
2 - 4 weeks
$4,134.66USD
$8.22 Shipping
2R1750SR6-3
A-T CONTROLS Series 2R Pneumatic Actuator, ISO / DIN Mount, Spring Return (Fail Clockwise), Buna Seals (-5°F to 175°F), 6 Springs per Side
2 - 4 weeks
$4,407.02USD
$8.22 Shipping

Rack & Pinion

Number of Travel Stops

Mounting

Actuator Size

Type of Actuator

Seal Material

Springs per Side

Travel Stops

Typical Applications

  • Standard working temperature -20º to 175º F
  • Low temperature and high temperature option
  • Maximum working pressure 150 psig
  • Operating media: clean, dry air, non-corrosive gas or light hydraulic oil
  • Air supply 40 psi - 150 psi
  • Rotation 100º
  • Dual travel stops standard
  • Mounting dimensions◦Accessories to Namur - VDI/VDE
  • Valve mounting to ISO 5211 (TR20 - 2R1750)
  • Permanently lubricated units
