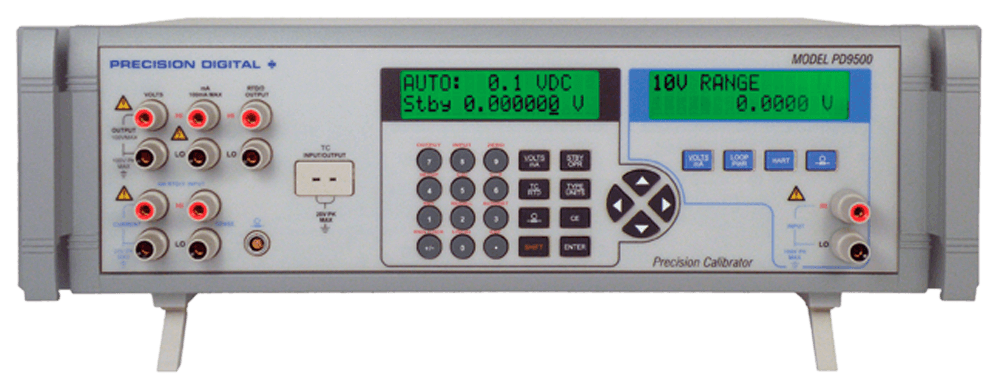

PD9500 Precision Calibrator

Brand: Precision Digital Corporation
The PD9500 precision calibrator sources voltage, current, resistance, thermocouple, and RTD with a second completely isolated measurement channel for a single laboratory calibration instrument unmatched in versatility, performance, and value.

The PD9500 calibrator's world-class performance and features are accessed through a simple-to-use, intuitive user interface. Precision Digital's PD9500 calibrator is truly a "process calibration laboratory in a box."
Features
  • Initial Calibration Accuracy (6 months) to 0.0025% of Rdg. (voltage)
  • 1-Year Accuracy to 0.005% of Rdg. (voltage)
  • Source/Read Thermocouple (13), RTD (9), Voltage, Current and Pressure (read only)
  • Custom RTD and SPRT Profiles
  • Nine Setpoints for Each Output Range and Type
  • 24 Vdc Loop Power
  • Direct Keyboard Entry
  • Beryllium-Copper Binding Posts Reduce Thermal EMFs
  • RS-232 and IEEE-488 Remote Control
  • Compatible with Fluke Met/Cal® Software
  • Isolated Measurement Channel
  • Selectable 250 Ohm HART™ Resistor
  • Includes NIST Traceable Certificate with Calibration Data
show more
The PD9500 precision calibrator sources voltage, current, resistance, thermocouple, and RTD with a second completely isolated measurement channel for a single laboratory calibration instrument unmatched in versatility, performance, and value.

The PD9500 calibrator's world-class performance and features are accessed through a simple-to-use, intuitive user interface. Precision Digital's PD9500 calibrator is truly a "process calibration laboratory in a box."
Features
  • Initial Calibration Accuracy (6 months) to 0.0025% of Rdg. (voltage)
  • 1-Year Accuracy to 0.005% of Rdg. (voltage)
  • Source/Read Thermocouple (13), RTD (9), Voltage, Current and Pressure (read only)
  • Custom RTD and SPRT Profiles
  • Nine Setpoints for Each Output Range and Type
  • 24 Vdc Loop Power
  • Direct Keyboard Entry
  • Beryllium-Copper Binding Posts Reduce Thermal EMFs
  • RS-232 and IEEE-488 Remote Control
  • Compatible with Fluke Met/Cal® Software
  • Isolated Measurement Channel
  • Selectable 250 Ohm HART™ Resistor
  • Includes NIST Traceable Certificate with Calibration Data

Specifications

Communication

  • HART

Display

  • LCD Display

Input

  • RTDs
  • Thermocouples

Operating Temperature

  • 0° to 50° C (32° to 122° F)

Operating Voltages

  • 50/60 Hz

Power

  • 24 Vdc Loop Power

Power Supply

  • 115 Vac
  • 230 Vac

Storage Temperature

  • -20° to 70° C (-4° to 158° F)
