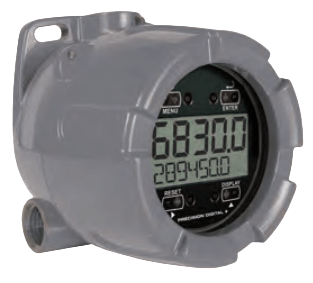

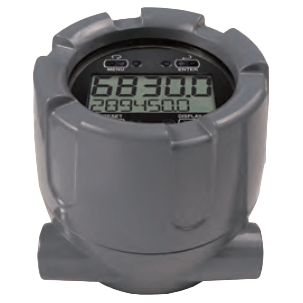

PD6730 Vantageview NEMA 4X Pulse Input Rate/Totalizer

Brand: Precision Digital Corporation
The Vantageview PD6730 is a plastic, field-mounted flow rate/totalizer that can display flow rate and total from a pulse output flowmeter. Its display has a five digit upper line for rate, a seven alpha-numeric character lower line for total, and comes standard with a backlight.

The PD6730 is built in a NEMA 4X and IP65 rated plastic enclosure which can stand up to even the harshest environmental conditions. It can be powered from an included battery or a 24 VDC external power supply.

Some features that really make the PD6730 stand out are its automatic unit conversions from flowmeter k-factor units, ability to log up to 1024 data points, and SafeTouch® through-window buttons. These buttons allow the PD6730 to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.
Features
  • Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave, Opto-Isolated Inputs
  • NEMA 4X, IP65 Plastic Enclosure for Safe Areas
  • 5-Digit 0.7" (17.8 mm) Top Display for Rate or Total
  • 7 Alphanumeric Character 0.4" (10.2 mm) Lower Display for Rate, Total, Grand Total, Units, and Tag
  • 13-Digit Totalizer with Total Overflow Feature
  • SafeTouch® Through-Window Button Programming
  • Isolated 4-20 mA Output for Rate, Total, or Grand Total
  • Two Isolated Open Collector Pulse Outputs, Up to 5 kHz
  • Battery, DC, or Output Loop-Powered Models
  • Gate Function for Rate Display of Slow Pulse Rates
  • K-Factor, Scaling, or Live Input Calibration with 32-Point Linearization
  • Automatic Rate, Total, and Grand Total Unit Conversions
  • Password Protection
  • Backlight Standard on All Models
  • On-Board Data Logging
  • Modbus® Communications RS-485 Option
  • Flanges for Wall or Pipe Mounting
  • Operates from -40 to 75°C
show more
The Vantageview PD6730 is a plastic, field-mounted flow rate/totalizer that can display flow rate and total from a pulse output flowmeter. Its display has a five digit upper line for rate, a seven alpha-numeric character lower line for total, and comes standard with a backlight.

The PD6730 is built in a NEMA 4X and IP65 rated plastic enclosure which can stand up to even the harshest environmental conditions. It can be powered from an included battery or a 24 VDC external power supply.

Some features that really make the PD6730 stand out are its automatic unit conversions from flowmeter k-factor units, ability to log up to 1024 data points, and SafeTouch® through-window buttons. These buttons allow the PD6730 to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.
Features
  • Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave, Opto-Isolated Inputs
  • NEMA 4X, IP65 Plastic Enclosure for Safe Areas
  • 5-Digit 0.7" (17.8 mm) Top Display for Rate or Total
  • 7 Alphanumeric Character 0.4" (10.2 mm) Lower Display for Rate, Total, Grand Total, Units, and Tag
  • 13-Digit Totalizer with Total Overflow Feature
  • SafeTouch® Through-Window Button Programming
  • Isolated 4-20 mA Output for Rate, Total, or Grand Total
  • Two Isolated Open Collector Pulse Outputs, Up to 5 kHz
  • Battery, DC, or Output Loop-Powered Models
  • Gate Function for Rate Display of Slow Pulse Rates
  • K-Factor, Scaling, or Live Input Calibration with 32-Point Linearization
  • Automatic Rate, Total, and Grand Total Unit Conversions
  • Password Protection
  • Backlight Standard on All Models
  • On-Board Data Logging
  • Modbus® Communications RS-485 Option
  • Flanges for Wall or Pipe Mounting
  • Operates from -40 to 75°C

Specifications

Communication

  • Modbus RTU
  • RS-485

Conduit Connection

  • 3/4" NPT

Display

  • 5-Digits
  • 7-Segment

Enclosure / Body Material

  • Polycarbonate with UV Stabilizer

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Humidity

  • 0 to 90% Non-Condensing

Isolation

  • 500 V Input to Output or Output to P+ Supply

K-Factor

  • May Be Programmed from 0.000001 to 9,999,999 Pulses/Unit

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Output

  • 4-20 mA

Power Options

  • Battery

Storage Temperature

  • -40° to 75° C (-40° to 167° F)

Supply Voltage

  • 9 to 30 Vdc
