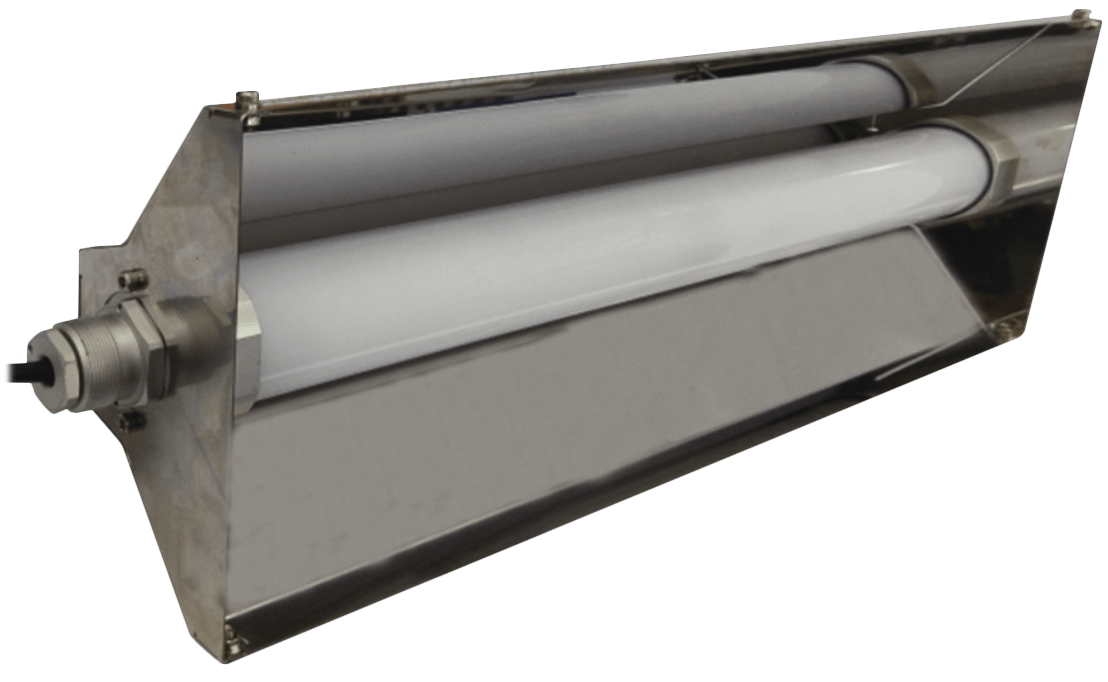

L1601C (SMD) Hazardous Location Tube Light

Brand: Top Hi-Tech Inc.
  • Volt.: 110 V / 220 V / 277 V AC
  • Watt.: S-10 W (1 ft) / M-20 W (2 ft) / L-40 W (4 ft)
  • Amps: 10 W (0.04 ~ 0.09 A) / 20 W (0.07 ~ 0.18 A) / 40 W (0.14 ~ 0.36 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient temperature:

  • -25° C ~ +55° C, T6 (IECEx / ATEX Certification)
  • -20° C ~ +40° C, T6 (TS Certification)
Degree of Protection - IP68 / NEMA 6P
IECEx Certification:
  • Ex nR IIC T6 Gc
  • Ex tb IIIC T85˚ C Db
ATEX Certification
  • II 3 G Ex nR IIC T6 Gb
  • II 2 D Ex tb IIIC T85˚ C Db
CML Certification
  • Ex nR IIC T6 Gc
  • Ex tb IIIC T85˚ C Db
TS Certification
  • Ex nR IIC T6 Gc X
  • Ex tb IIIC T85˚ C Db X
Features
  • Light weight
  • Provides different mounting option to suits your need
  • LED tube light suitable for food process illumination
 Applicable Location:
  • Zone 2
  • Zone 21 & Zone 22
show more
Images are representations only.
  • Volt.: 110 V / 220 V / 277 V AC
  • Watt.: S-10 W (1 ft) / M-20 W (2 ft) / L-40 W (4 ft)
  • Amps: 10 W (0.04 ~ 0.09 A) / 20 W (0.07 ~ 0.18 A) / 40 W (0.14 ~ 0.36 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient temperature:

  • -25° C ~ +55° C, T6 (IECEx / ATEX Certification)
  • -20° C ~ +40° C, T6 (TS Certification)
Degree of Protection - IP68 / NEMA 6P
IECEx Certification:
  • Ex nR IIC T6 Gc
  • Ex tb IIIC T85˚ C Db
ATEX Certification
  • II 3 G Ex nR IIC T6 Gb
  • II 2 D Ex tb IIIC T85˚ C Db
CML Certification
  • Ex nR IIC T6 Gc
  • Ex tb IIIC T85˚ C Db
TS Certification
  • Ex nR IIC T6 Gc X
  • Ex tb IIIC T85˚ C Db X
Features
  • Light weight
  • Provides different mounting option to suits your need
  • LED tube light suitable for food process illumination
 Applicable Location:
  • Zone 2
  • Zone 21 & Zone 22

Specifications

Approvals & Certifications

  • ATEX Ex
  • IECEx
  • TS

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP67
  • IP68
  • NEMA 6
  • NEMA 6P

Frequency

  • 50/60 Hz

Lumens

  • > 80 (Warm White), > 70 (Cool White)

Materials of Construction

  • Lighting Tube: Polycarbonate

Operating Temperature

  • -20° to 40° C (-4° to 104° F)

Screw Material

  • Stainless Steel

Voltage

  • 110-277 Vac

Wattage

  • S: 10 W / M: 20 W / L: 40 W (0.036 to 0.364 A)
