Images are representations only.

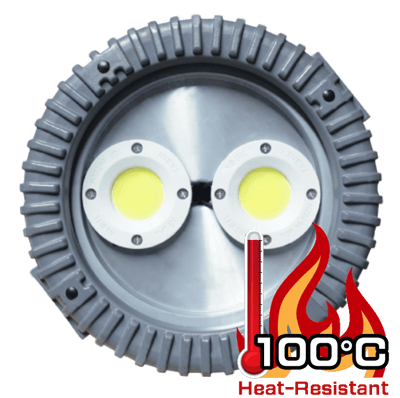

L1105, Top Hi-Tech, cULus, 100°C Heat Resistant & High Humidity LED Light, (C0B) 40 Watt

Brand: Top Hi-Tech Inc
Request Information
cULus Non-Hazardous Location Approved for Canada & USA
L1105, 100°C Heat Resistant & High Humidity LED Flood Light COB, 40W
  • cULus Approvals:
    • UL 8750
    • UL 1598
    • CSA: C22.2 No.250.0
  • Ambient Temperature:
    • +86°C ~ +100°C
  • Degree of Protection:
    • IP67 / NEMA 6
Features
100°C Heat Resistant & High Humidity
    • Corrosion Resistant
    • Easy installation and maintenance
    • Applicable to High Temperature Environment
    • Light Color: Cool White / Warm White
"AC IN LED Technology"
    • No Driver (Ballast), to fail
    • No Efficiency Loss, Long Lifespan ( 60,000 hrs )
    • LED Lighting provides 2 million times power cycle
    • High Efficiency, Generates Less Heat
    • Smaller Volume and Light weight
show more
cULus Non-Hazardous Location Approved for Canada & USA
L1105, 100°C Heat Resistant & High Humidity LED Flood Light COB, 40W
  • cULus Approvals:
    • UL 8750
    • UL 1598
    • CSA: C22.2 No.250.0
  • Ambient Temperature:
    • +86°C ~ +100°C
  • Degree of Protection:
    • IP67 / NEMA 6
Features
100°C Heat Resistant & High Humidity
    • Corrosion Resistant
    • Easy installation and maintenance
    • Applicable to High Temperature Environment
    • Light Color: Cool White / Warm White
"AC IN LED Technology"
    • No Driver (Ballast), to fail
    • No Efficiency Loss, Long Lifespan ( 60,000 hrs )
    • LED Lighting provides 2 million times power cycle
    • High Efficiency, Generates Less Heat
    • Smaller Volume and Light weight
Close
Close

Specifications

Brand

Standards

  • UL 1598
  • UL 8750
  • CSA C22.2 No.250.0

Rated Voltage (±10%)

  • 110V / 120V / 220V / 277V AC

Watts (±10%)

  • 40 Watt

Amps

  • (110V: 0.36A)
  • (120V: 0.33A)
  • (220V: 0.18A)
  • (277V: 0.14A)

Color of LED Light (C.C.T.)

  • 3000K (Warm White)
  • 5000K (Cool White)

Ambient Operating Temperature

  • +86°C ~ +100°C

Power Factor

  • cos≧0.9

CRI

  • Cool White≧70
  • Warm White≧80

Lumen (±10%)

  • COB 40W: (3000K: 3.800lm)
  • COB 40W: (5000K: 4,000 lm)

Beam Angle

  • X-110° / Y-110°

Frequency

  • 50 / 60 Hz

Degree of Protection

  • IP67/ NEMA

Material

  • Enclosure: Aluminium Alloy
  • Glass: Tempered Glass

LED Service Life

  • 60,000 hrs*
  • *1 years warranty without warranting lumen depreciation

Entrance Thread

  • 4 × G 3/4”

Electrical Cable

  • 3 Ft (1 Meter) Silicone Rubber Cable
  • cUR, Type AWM 4476, 300V, 200°C, 0.75mm2 x 3C (18 AWG) FT1

Warranty

  • 1 year warranty without warranting lumen depreciation
Close

Typical Applications

  • Smelter Steel Mill
  • Boiler Rooms
  • Textile Factory
  • Pulp & Paper Industry
  • Power Plants
  • Automotive Industry
  • Cable Manufacturing
  • Glass Factory
Close
