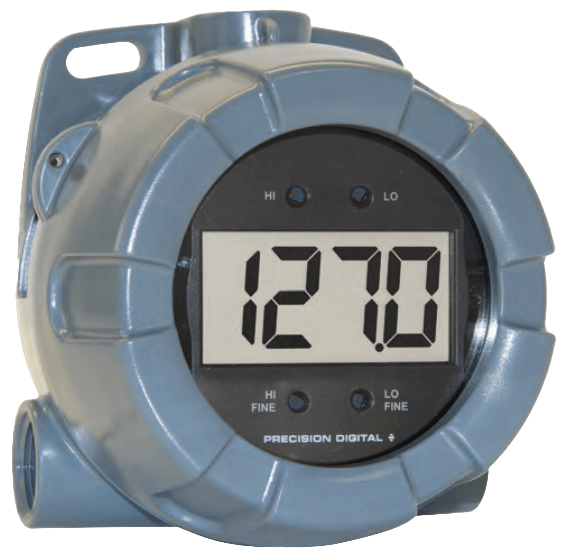

PD6770 Vantageview NEMA 4X Large Display Loop-Powered Meter

Brand: Precision Digital Corporation
The PD6770 is a general purpose, field-mount loop-powered indicator that is easy to install and program. It can be seen from considerable distance and even in bright sunlight. The fact that this meter is looppowered means that there is no need to run additional, costly power lines. The meter gets all of the power it needs from the 4-20 mA loop and its 1 V drop results in a minimal burden on the loop.

The meter features a wide -40 to +75°C operating temperature range and comes with three ¾" NPT threaded conduit openings and flanges for wall or pipe mounting. Calibration is a quick two-step process involving the adjustment of only high and low, non-interacting potentiometers.
Features
  • 4-20 mA Input • Modern, Sleek and Practical Enclosure for Safe Areas
  • 3½ Digits, 1" (25.4 mm) Display
  • Display Mountable at 0°, 90°, 180°, & 270° Degrees.
  • Easy Calibration and Installation
  • Loop-Powered Backlight Option
  • 1 V Drop (4 V with Backlight)
  • Plastic NEMA 4X, IP65 Enclosure
  • Flanges for Wall or Pipe Mounting
  • HART® Protocol Transparent
  • Operates from -40 to 75°C
show more
The PD6770 is a general purpose, field-mount loop-powered indicator that is easy to install and program. It can be seen from considerable distance and even in bright sunlight. The fact that this meter is looppowered means that there is no need to run additional, costly power lines. The meter gets all of the power it needs from the 4-20 mA loop and its 1 V drop results in a minimal burden on the loop.

The meter features a wide -40 to +75°C operating temperature range and comes with three ¾" NPT threaded conduit openings and flanges for wall or pipe mounting. Calibration is a quick two-step process involving the adjustment of only high and low, non-interacting potentiometers.
Features
  • 4-20 mA Input • Modern, Sleek and Practical Enclosure for Safe Areas
  • 3½ Digits, 1" (25.4 mm) Display
  • Display Mountable at 0°, 90°, 180°, & 270° Degrees.
  • Easy Calibration and Installation
  • Loop-Powered Backlight Option
  • 1 V Drop (4 V with Backlight)
  • Plastic NEMA 4X, IP65 Enclosure
  • Flanges for Wall or Pipe Mounting
  • HART® Protocol Transparent
  • Operates from -40 to 75°C

Specifications

Accuracy

  • ± 0.1%

Communication

  • HART

Conduit Connection

  • 3/4" NPT

Display

  • 3-1/2-Digit LCD

Enclosure, Body Material

  • Polycarbonate with UV Stabilizer

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Humidity

  • 0 to 90% Non-Condensing

Input

  • 4-20 mA

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Storage Temperature

  • -40° to 75° C (-40° to 167° F)

Voltage Drop

  • 1 Vdc at 20 mA without Backlight
  • 4 Vdc at 20 mA with Loop-Powered Backlight
