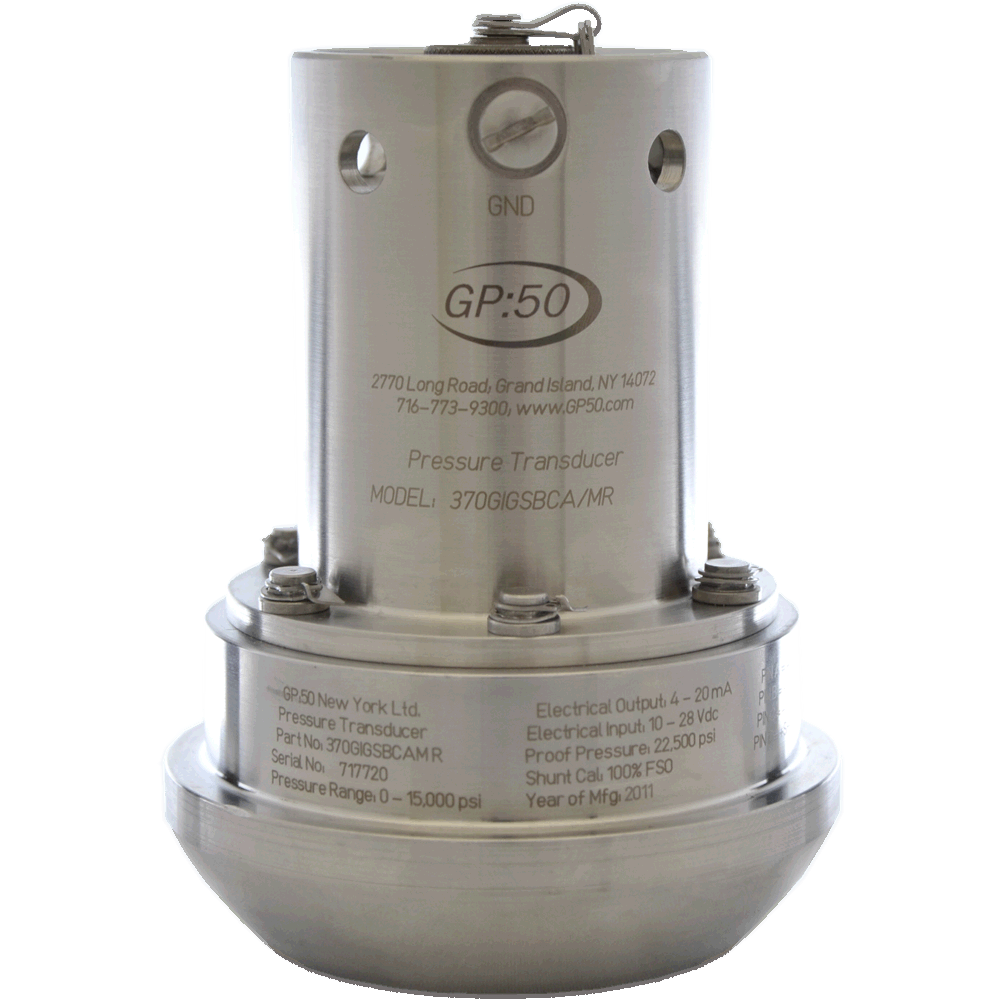

Model 370 Pressure Transmitter

Brand: GP:50 New York Ltd.
  • Output Signal: 4-20 mA
  • Supply Voltage: 9 to 36 Vdc
  • Pressure Range: 0 to 20,000 psi (69 to 1,379 bar, 0 to 137,895 kPa)
  • Burst Pressure: 3 times FSO
  • Proof Pressure: 1.5 times FSO or 22,500 psi whichever is less
  • Electrical Connections: PTO2E-10-6P
  • Approvals: FM/CSA/ATEX/IEC/CE marked/IP67
  • Process Connection: WECO 2" - 1502, 2002/2202 or 602
  • Temperature Range:
    • Operating: -45° to 85° C (-50° to 190° F)
    • Compensated: -40° to 80° C (-40° to 180° F)
    • Effect on Zero/Span: <1% Full ScaleO at 100 °F
  • Static Accuracy: Standard: ≤±0.25% Full ScaleO Improved: ≤±0.10% Full ScaleO
  • Materials of Construction:
    • Housing: 300 Series Stainless Steel
    • Sensor: 17-4 PH Stainless Steel
show more
Images are representations only.
  • Output Signal: 4-20 mA
  • Supply Voltage: 9 to 36 Vdc
  • Pressure Range: 0 to 20,000 psi (69 to 1,379 bar, 0 to 137,895 kPa)
  • Burst Pressure: 3 times FSO
  • Proof Pressure: 1.5 times FSO or 22,500 psi whichever is less
  • Electrical Connections: PTO2E-10-6P
  • Approvals: FM/CSA/ATEX/IEC/CE marked/IP67
  • Process Connection: WECO 2" - 1502, 2002/2202 or 602
  • Temperature Range:
    • Operating: -45° to 85° C (-50° to 190° F)
    • Compensated: -40° to 80° C (-40° to 180° F)
    • Effect on Zero/Span: <1% Full ScaleO at 100 °F
  • Static Accuracy: Standard: ≤±0.25% Full ScaleO Improved: ≤±0.10% Full ScaleO
  • Materials of Construction:
    • Housing: 300 Series Stainless Steel
    • Sensor: 17-4 PH Stainless Steel
41 models matching criteria
370GI-G-SB-DT4
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 15,000 psi, 4-Pin Mini Dual
1 In Stock
$353.63USD
$8.08 Shipping
370GI-G-RZ-DT4/NH
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 10,000 psi, 4-Pin Mini, Dual
1 In Stock
$1,275.30 USD $504.15USD
$8.08 Shipping
370GI-G-RV-CA
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 5000 psi, Bendix 6-Pin
Out of Stock
$352.82USD
$8.08 Shipping
371-G-01-CA
GP:50 Model 371l Temperature Transmitter, 2" 1502, -40 to 250°.F, PT02E-10-6P (Bendix 6-Pin)
4 - 6 weeks
$691.08USD
$8.08 Shipping
370GI-G-RX-A73
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 7500 psi, A73
4 - 6 weeks
$873.96USD
$8.08 Shipping
370GI-G-RZ-CA
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 10,000 psi, Bendix 6-Pin
4 - 6 weeks
$986.45USD
$8.08 Shipping
370GI-G-SB-CA
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 15,000 psi, Bendix 6-Pin
4 - 6 weeks
$986.45USD
$8.08 Shipping
370GI-G-SD-CA
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 20,000 psi, Bendix 6-Pin
4 - 6 weeks
$986.45USD
$8.08 Shipping
370I-G-RV-CA
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 5000 psi, Bendix 6-Pin
4 - 6 weeks
$986.45USD
$8.08 Shipping
370I-G-RZ-CA
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 10,000 psi, Bendix
4 - 6 weeks
$986.45USD
$8.08 Shipping
370I-G-SB/CA/QY
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 15,000 psi, Bendix, Remove
4 - 6 weeks
$986.45USD
$8.08 Shipping
370I-G-SB-CA
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 15,000 psi, Bendix 6-Pin
4 - 6 weeks
$986.45USD
$8.08 Shipping
370GI-G-RZ-CA/MR
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 10,000 psi, Bendix, Alternate
4 - 6 weeks
$992.11USD
$8.08 Shipping
370GI-G-SB-CA/MR
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 15,000 psi, Bendix, Alternate
4 - 6 weeks
$992.11USD
$8.08 Shipping
370-G-I-SB-CA-MR
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 15,000 psi, Bendix 6-Pin, Alternate
4 - 6 weeks
$992.11USD
$8.08 Shipping
370I-G-RZ-CA/MR
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 10,000 psi, Bendix, Alternate
4 - 6 weeks
$992.11USD
$8.08 Shipping
370I-G-SB-CA-MR
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 15,000 psi, Bendix, Alternate
4 - 6 weeks
$992.11USD
$8.08 Shipping
370I-A-SB-CA-ME
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502, 15,000 psi, Bendix, 80% Shunt
4 - 6 weeks
$999.39USD
$8.08 Shipping
370N-G-SD-DP
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 20,000 psi, BradHarrison 4-Pin
4 - 6 weeks
$1,023.67USD
$8.08 Shipping
370I-G-RV-CF
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, CSA/FM IS, 2" 1502 SST 0-5000 psi, 1/2" NPT 18" Cable
4 - 6 weeks
$1,027.72USD
$8.08 Shipping
370I-G-RZ-DM/MR
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 10,000 psi, MS3102E, Alternate
4 - 6 weeks
$1,035.00USD
$8.08 Shipping
370I-G-SB-DM/MR
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 15,000 psi, MS3102E, Alternate
4 - 6 weeks
$1,035.00USD
$8.08 Shipping
370I-G-RZ-DT4/NH
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502 SST, 10,000 psi, 4-Pin, Dual Wiring
4 - 6 weeks
$1,068.18USD
$8.08 Shipping
370I-A-RV
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502, 5000 psi
4 - 6 weeks
$1,124.01USD
$8.08 Shipping
370Z-A-SB-ME-CA
GP:50 Model 370 WECO® Hammer Union Pressure Transmitter, Intrinsically Safe, 2" 1502, 15,000 psi, 80% Shunt, Bendix
4 - 6 weeks
$1,136.96USD
$8.08 Shipping

Specifications

Accuracy

  • ≤ ± 0.10% of Full Scale Output
  • ≤ ± 0.25% of Full Scale Output

Approvals & Certifications

  • CE
  • FM/CSA/ATEX/IEC Class I, Division 1/Zone 0 Intrinsic Safety, FM/CSA/ATEX/IEC Class I, Division 2,/Zone 2

Compensated Temperature

  • -40° to 80° C (-40° to 176° F)

Electrical Connectors

  • Bendix PT02E-10-6P

Enclosure, Body Material

  • 300 Stainless Steel

Environmental Protection

  • IP67

Input Signal

  • 23 mA - Maximum

Operating Temperature

  • -45° to 85° C (-50° to 190° F)

Output

  • 4-20 mA

Pressure Range

  • bar: 69 to 1,379
  • kPa: 0 to 137,895
  • psi: 0 to 20,000

Process Connection - Other

  • WECO 2" - 1502, 2002/2202 or 602

Proof Pressure

  • 1.5 times Pressure Range or psi: 22,500 (bar: 1,551, kPa: 155,132), whichever is Less

Sensor, Probe Material

  • 630 Stainless Steel

Shunt Calibration

  • 100% of Full Scale Output ± 0.2% by Exciting E + F

Span & Zero Effect

  • <± 1.0% of Full Scale Output 38° C (100° F)

Supply Voltage

  • 9 to 36 Vdc
