PDA2909 Steel NEMA 4 Enclosure

Brand: Precision Digital Corporation
The PDA2909 steel NEMA 4 enclosure provides a convenient way to mount the PD9000 ConsoliDator+ to walls and other vertical structures.

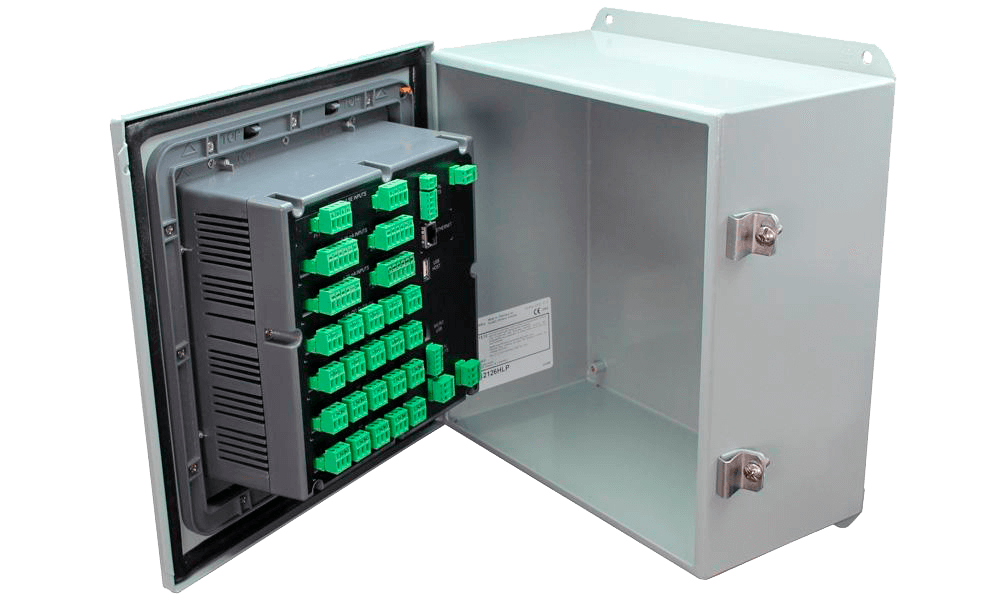

This enclosure comes pre-cut with one cutout to mount the PD9000 in. The ConsoliDator+ is mounted in the door of the enclosure thus allowing for programming and operation of the device.

No additional mounting hardware other than screws to mount to the wall is needed. The door is hinged and secured with latches.

The enclosure and ConsoliDator+ are ordered and packaged separately.
Features
  • House one ConsoliDator+ PD9000 Multi-Variable Controller
  • 14-Gauge Steel
  • Comes Pre-Cut with One Cutout
  • NEMA 4, 12 and 13
  • Cover Secured with Screwed Latches
  • Hinged Door
  • ConsoliDator+ Mounted in Cover
  • Mounting Holes Integral to Enclosure
  • UL Listed, CSA Certified
show more
The PDA2909 steel NEMA 4 enclosure provides a convenient way to mount the PD9000 ConsoliDator+ to walls and other vertical structures.

This enclosure comes pre-cut with one cutout to mount the PD9000 in. The ConsoliDator+ is mounted in the door of the enclosure thus allowing for programming and operation of the device.

No additional mounting hardware other than screws to mount to the wall is needed. The door is hinged and secured with latches.

The enclosure and ConsoliDator+ are ordered and packaged separately.
Features
  • House one ConsoliDator+ PD9000 Multi-Variable Controller
  • 14-Gauge Steel
  • Comes Pre-Cut with One Cutout
  • NEMA 4, 12 and 13
  • Cover Secured with Screwed Latches
  • Hinged Door
  • ConsoliDator+ Mounted in Cover
  • Mounting Holes Integral to Enclosure
  • UL Listed, CSA Certified

Specifications

Material

  • 14 gauge steel

Color

  • Gray

Number of ConsoliDator+s Per Enclosure

  • One

ConsoliDator+ Mounting Method

  • Through cover

Cover Mounting Method

  • Hinge
  • Latch

Ratings

  • NEMA 4
  • NEMA 12
  • NEMA 13

Approvals & Certifications

  • CSA
  • UL/C-UL

Dimensions

  • 12" x 12" x 6" (305 mm x 305 mm x 152 mm)

Weight

  • 15 Lbs

Warranty

  • 1 year
