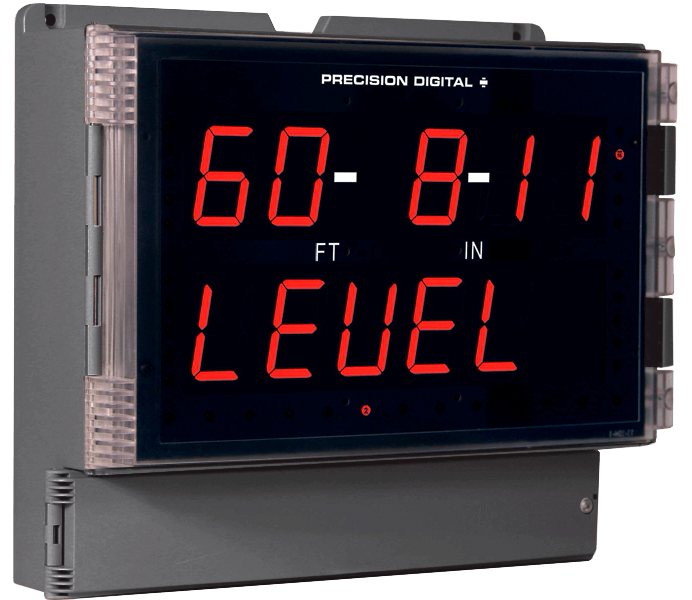

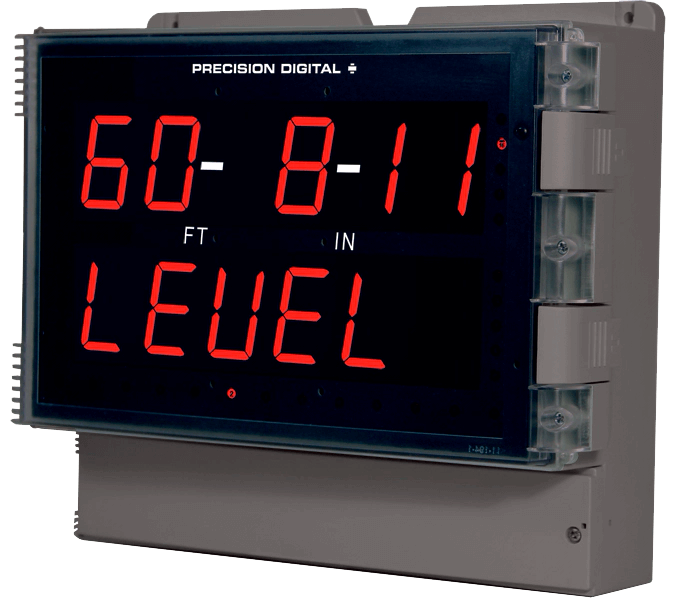

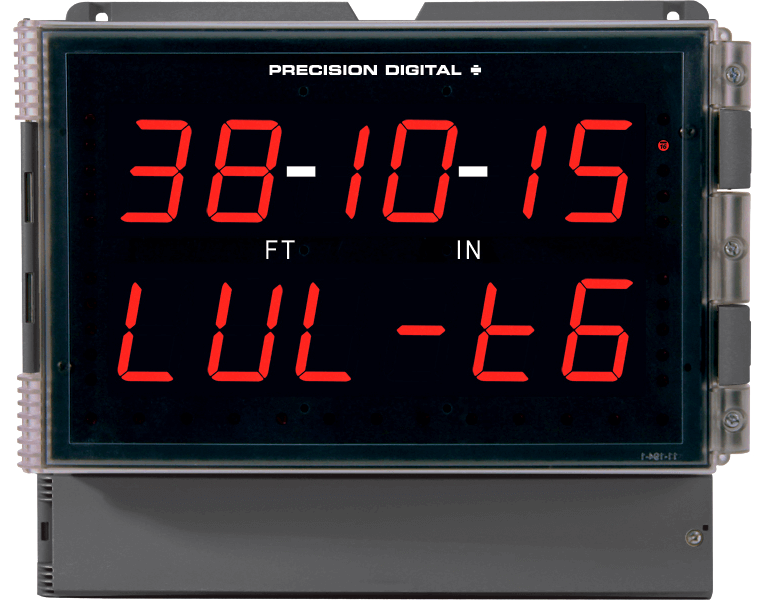

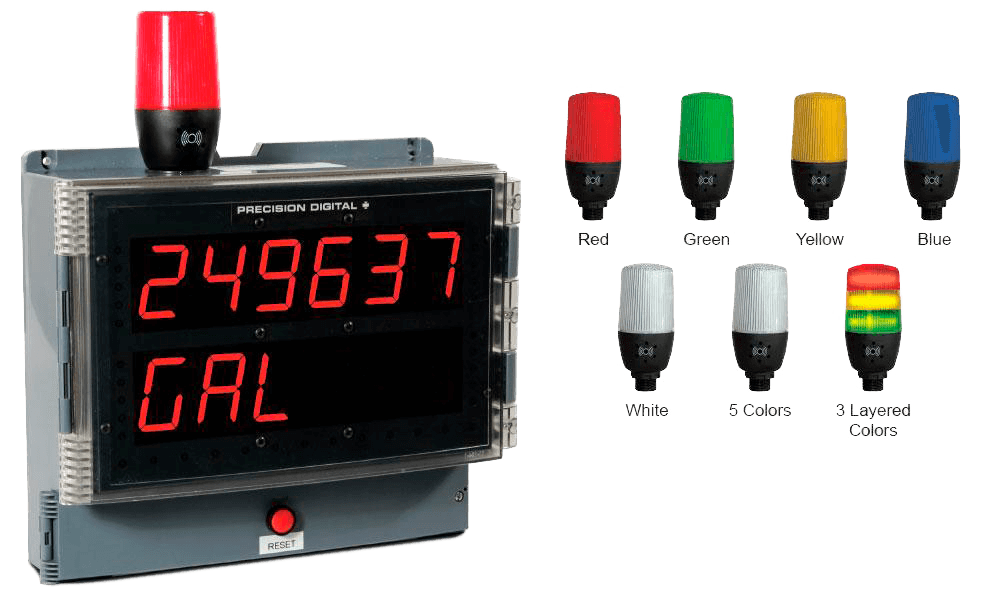

PD2-6001 Helios Feet & Inches Level Meter

Brand: Precision Digital Corporation
Go with the Helios PD2-6001 when you prefer to read level in feet and inches instead of the more common decimal format. This unique display will read up to 99 feet, 11 & 15/16s inches on the upper line.

The lower line can display a tag or volume, even from non-linear tanks such as round horizontal ones. The PD2-6001 makes a great outdoor tank side indicator because its display is bright enough to read in direct sunlight and it will operate from -40° to 65° C (-40° to 150°F).

The PD2-6001 can also be equipped with a 4-20 mA output as well as four relays that can be used for alarming or controlling applications, including pump alternation control.
Features
  • Feet and Inches display ideal for level applications
  • Large 1.80ꞌꞌ dual-Line 6-digit display readable from up to 100 feet away
  • Superluminous sunlight readable display
  • 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V inputs
  • Universal 85 to 265 Vac, or 12 to 24 Vdc input power models
  • Dual-scale for some level applications - single input
  • Isolated 24 Vdc transmitter power supply
  • Signal input conditioning for round horizontal tanks
  • Programmable display & function keys
  • 32-Point, square root, or exponential linearization
  • Multi-pump alternation control
  • Four (4) Relays + Isolated 4-20 mA output option
  • Onboard USB & RS-485 serial communication options
  • Modbus RTU communication protocol standard
  • Program the meter from a PC with onboard USB and meterView Pro
show more
Go with the Helios PD2-6001 when you prefer to read level in feet and inches instead of the more common decimal format. This unique display will read up to 99 feet, 11 & 15/16s inches on the upper line.

The lower line can display a tag or volume, even from non-linear tanks such as round horizontal ones. The PD2-6001 makes a great outdoor tank side indicator because its display is bright enough to read in direct sunlight and it will operate from -40° to 65° C (-40° to 150°F).

The PD2-6001 can also be equipped with a 4-20 mA output as well as four relays that can be used for alarming or controlling applications, including pump alternation control.
Features
  • Feet and Inches display ideal for level applications
  • Large 1.80ꞌꞌ dual-Line 6-digit display readable from up to 100 feet away
  • Superluminous sunlight readable display
  • 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V inputs
  • Universal 85 to 265 Vac, or 12 to 24 Vdc input power models
  • Dual-scale for some level applications - single input
  • Isolated 24 Vdc transmitter power supply
  • Signal input conditioning for round horizontal tanks
  • Programmable display & function keys
  • 32-Point, square root, or exponential linearization
  • Multi-pump alternation control
  • Four (4) Relays + Isolated 4-20 mA output option
  • Onboard USB & RS-485 serial communication options
  • Modbus RTU communication protocol standard
  • Program the meter from a PC with onboard USB and meterView Pro

Specifications

Display

  • Two lines with 1.8" (46 mm) high digits with feet & Inches designations, red LEDs; 6 digits per line (-99999 to 999999), with lead zero blanking

Feet & Inches Display Range

  • 0 to 99' 11-15/16"

Display Intensity

  • Eight intensity levels

Display Update Rate

  • 5/second (200 ms)

Overrange

  • Display flashes 999999

Underrange

  • Display flashes -99999

Display Assignment

  • The upper and lower displays may be assigned to PV1, PV2, PCT (percent), d r-u, d gross, d nt-g, max/min, alternate max & min, set points, units (lower display only), or Modbus input.

Programming Methods

  • Four SafeTouch through-glass buttons when cover is installed. Four internal pushbuttons when cover is removed.

F4 Digital Input Contacts

  • 3.3 VDC on contact. Connect normally open contacts across F4 to COM.

F4 Digital Input Logic Levels

  • Logic High: 3 to 5 VDC; Logic Low: 0 to 1.25 VDC

Noise Filter

  • Programmable from 2 to 199 (0 will disable filter)

Filter Bypass

  • Programmable from 0.1 to 99.9% of calibrated span

Recalibration

  • Calibrated at the factory. Recalibration is recommended at least every 12 months.

Max/Min Display

  • Max / min readings reached by the process are stored until reset by the user or until power to the meter is turned off.

Password

  • Three programmable passwords restrict modification of programmed settings.

Non-Volatile Memory

  • All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.

Power Options

  • 5-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or 12-24 VDC ± 10%, 15 W max. Powered over USB for configuration only.

Isolated Transmitter Power Supply

  • Terminals P+ & P-: 24 VDC ± 10%. 12-24 VDC powered models selectable for 24, 10, or 5 VDC supply (internal P+/P- switch). 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply.

Fuse

  • Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse.

Isolation

  • 4 kV input/output-to-power line. 500 V input-to-output or output-to-P+ supply.

Overvoltage Category

  • Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

  • T6 Class Operating Temperature Range Ta = -40 to 60° C
  • T5 Class Operating Temperature Range Ta = -40 to 65° C
  • See LIM8 ProtEX-MAX instruction manual for additional details.

Max Power Dissipation

  • Maximum power dissipation limited to 15.1 W. See PD8 instruction manual for additional details.

Connections

  • Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters.

Enclosure

  • UL Type 4X, IP65 rated. Polycarbonate & glass blended plastic case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, black nylon threaded hole plugs with backing nuts.

Wall Mounting

  • Four (4) Mounting Holes Provided for Mounting Meter to Wall

Pipe Mounting

  • Optional pipe mounting kit (PDA6260) allows for pipe mounting. Sold separately.

Dimensions

  • 10.63" x 12.59" x 4.77" (270 mm x 319.7 mm x 121.2 mm) (H x W x D)

Weight

  • 6.10 lbs (2.76 kg)

UL File Number

  • UL & C-UL Listed. E160849; 508 Industrial Control Equipment

Warranty

  • 3 years parts & labor

USB Connection

  • Compatibility: USB 2.0 Standard, Compliant Connector Type: Micro-B receptacle
  • Cable: USB A Male to Micro-B Cable Driver: Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows 7 32/64-Bit, Windows 10 32/64-Bit
