NOVA PD550 Series Process & Temperature Controller

Brand: Precision Digital Corporation
The Nova PD550 is a digital temperature controller with two ramp and soak programs capable of storing 15 segments each for precision PID set point control. It is available in 1/16, 3/16, 1/8, and 1/4 DIN sizes.
At the completion of a program, the controller can hold the set point, stop the outputs, or loop to one of the 30-segment programs.
Its universal input accepts 23 input varieties, including thermocouple, RTD, and voltage inputs, and it can be easily configured for a 4-20 mA input.

It is available with up to three (3) relays, two (2) 4-20 mA Analog outputs, four (4) digital inputs, and an RS485 serial communication option which includes protocols for master/slave set point control, Modbus ASCII and RTU, as well as PC software.
Features
  • Thermocouple, rTD, & Process Inputs
  • High accuracy auto-Tuning PID
  • Two ramp & Soak Programs, 15 segments each
  • Universal Power Supply 100-240 Vac
  • Up to 3 relays & 2 Analog outputs
  • Digital Input Program operation
  • rS-485 Serial communications option
  • Modbus® rTU/aScII communications
  • Free operating & Data logging Software
  • IP55 & IP65 Fronts
show more
Images are representations only.
The Nova PD550 is a digital temperature controller with two ramp and soak programs capable of storing 15 segments each for precision PID set point control. It is available in 1/16, 3/16, 1/8, and 1/4 DIN sizes.
At the completion of a program, the controller can hold the set point, stop the outputs, or loop to one of the 30-segment programs.
Its universal input accepts 23 input varieties, including thermocouple, RTD, and voltage inputs, and it can be easily configured for a 4-20 mA input.

It is available with up to three (3) relays, two (2) 4-20 mA Analog outputs, four (4) digital inputs, and an RS485 serial communication option which includes protocols for master/slave set point control, Modbus ASCII and RTU, as well as PC software.
Features
  • Thermocouple, rTD, & Process Inputs
  • High accuracy auto-Tuning PID
  • Two ramp & Soak Programs, 15 segments each
  • Universal Power Supply 100-240 Vac
  • Up to 3 relays & 2 Analog outputs
  • Digital Input Program operation
  • rS-485 Serial communications option
  • Modbus® rTU/aScII communications
  • Free operating & Data logging Software
  • IP55 & IP65 Fronts
25 models matching criteria
PD550-6RA-00
1/6 DIN / 1 relay & 1 analog output / No Options
Out of Stock
PD550-6RA-02
1/6 DIN / 1 relay & 1 analog output / 2 digital outputs
Out of Stock
PD550-6RA-03
1/6 DIN / 1 relay & 1 analog output / 4 digital outputs
Out of Stock
PD550-6RA-11
1/6 DIN / 1 relay & 1 analog output / 1 relay & 2 digital inputs
Out of Stock
PD550-6RA-14
1/6 DIN / 1 relay & 1 analog output / 1 relay & RS-485
Out of Stock
PD550-6RA-31
1/6 DIN / 1 relay & 1 analog output /1 analog output & 2 digital inputs
Out of Stock
PD550-6RA-34
1/6 DIN / 1 relay & 1 analog output /1 analog output & RS-485
Out of Stock

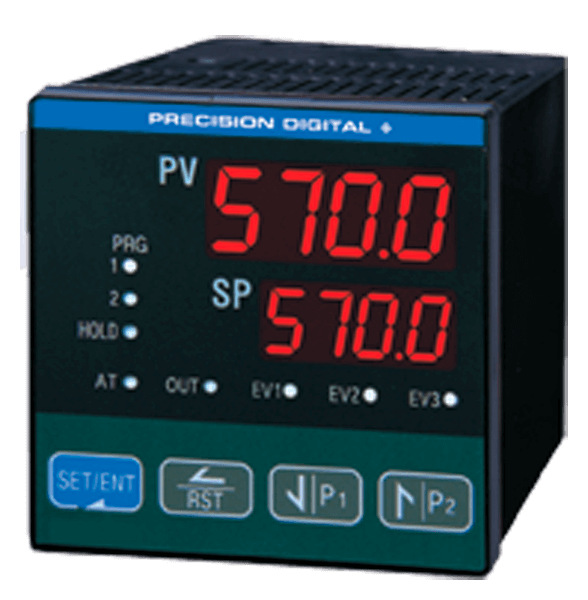

PD554-6RA-00
3/16 DIN / 1 relay & 1 analog output /No Options
Out of Stock
PD554-6RA-02
3/16 DIN / 1 relay & 1 analog output /2 digital outputs
Out of Stock
PD554-6RA-03
3/16 DIN / 1 relay & 1 analog output /4 digital outputs
Out of Stock
PD554-6RA-04
3/16 DIN / 1 relay & 1 analog output /RS-485
Out of Stock
PD554-6RA-51
3/16 DIN / 1 relay & 1 analog output /2 relays, 1 analog output & 2 digital inputs
Out of Stock
PD554-6RA-52
3/16 DIN / 1 relay & 1 analog output /2 relays, 1 analog output & 2 digital outputs
Out of Stock
PD554-6RA-53
3/16 DIN / 1 relay & 1 analog output /2 relays, 1 analog output & 4 digital outputs
Out of Stock
PD554-6RA-54
3/16 DIN / 1 relay & 1 analog output /2 relays, 1 analog output & RS-485
Out of Stock

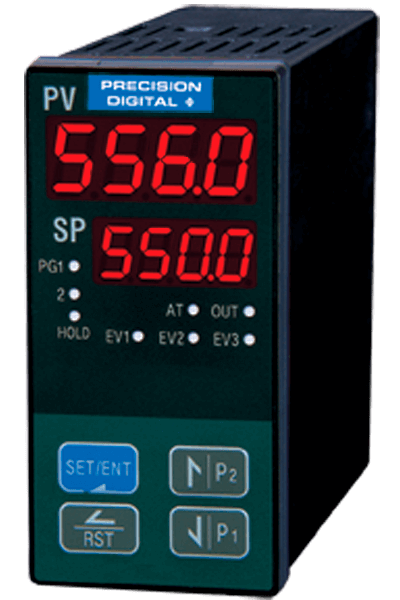

PD556-6RB-00
1/8 DIN / 1 relay & 2 analog outputs /No Options
Out of Stock
PD556-6RB-21
1/8 DIN / 1 relay & 2 analog outputs / 2 relays & 2 digital inputs
Out of Stock
PD556-6RB-24
1/8 DIN / 1 relay & 2 analog outputs /2 relays & RS-485
Out of Stock
PD556-6RB-25
1/8 DIN / 1 relay & 2 analog outputs /2 relays & 2 digital inputs & 4 digital outputs
Out of Stock
PD556-6RB-26
1/8 DIN / 1 relay & 2 analog outputs /2 relays, RS-485 & 4 digital outputs
Out of Stock

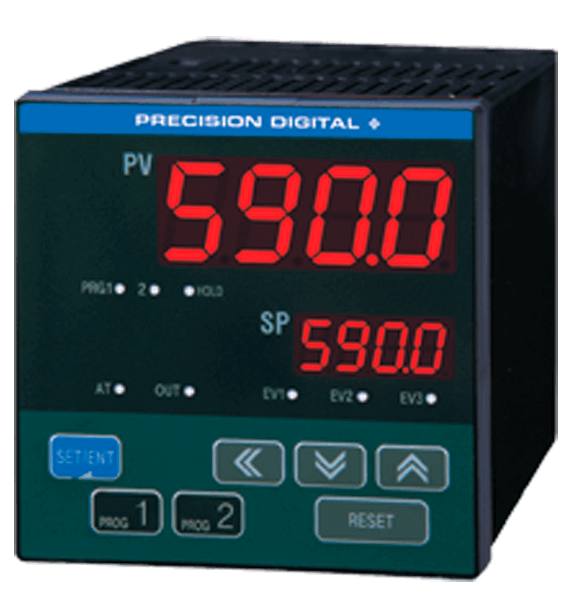

PD558-6RB-00
1/4 DIN / 1 relay & 2 analog outputs /No Options
Out of Stock
PD558-6RB-21
1/4 DIN / 1 relay & 2 analog outputs /2 relays & 2 digital inputs
Out of Stock
PD558-6RB-24
1/4 DIN / 1 relay & 2 analog outputs /2 relays & RS-485
Out of Stock
PD558-6RB-25
1/4 DIN / 1 relay & 2 analog outputs / 2 relays & 2 digital inputs & 4 digital outputs
Out of Stock
PD558-6RB-26
1/4 DIN / 1 relay & 2 analog outputs / 2 relays, RS-485 & 4 digital outputs
Out of Stock

PD550

Mounting

Power

Display

Output

Output

Options

Options

Options

Specifications

Approvals & Certifications

  • CE
  • UL

Cold Junction Reference

  • Automatic
  • Off

Communication

  • Modbus
  • RTU

Display

  • Dual 4-Digit Display
  • Red LEDs

Enclosure, Body Material

  • Impact-Resistant Plastic

Environmental Protection

  • IP55
  • IP65

Humidity

  • 20 to 90% Non to Condensing

Isolation

  • 2300 V Input/Output-to-Powerline
  • 4 kV Relay Output to Input/Output / Powerline

Mounting

  • 1/16" DIN

Operating Temperature

  • 10° to 50° C (50° to 122° F)

Operating Voltages

  • 50/60 Hz

Power

  • 10 W

Power Supply

  • 100 to 240 Vac
