PD6730X Vantageview NEMA 4X Modbus Scanner

Brand: Precision Digital Corporation
Request Information
Favorite

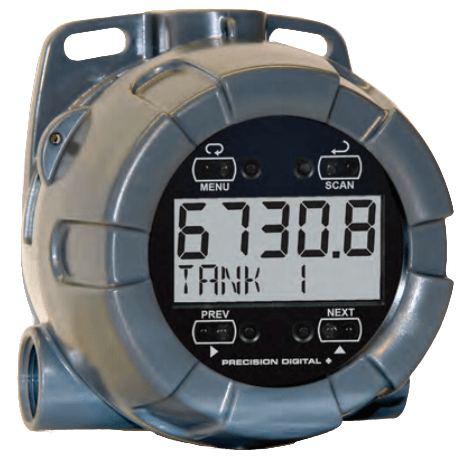

The Vantageview PD6730X is a plastic, field-mounted, RS485 serial input Modbus® RTU scanner capable of scanning up to 16 Modbus variables and displaying them on an easy-to-read, dual-line, LCD display.

It can be programmed as a Modbus RTU master, slave, or snooper.

The PD6730X is available in two upper display line configurations: 5-digit decimal display and feet & inches display with bar graph. The lower line is the same for both versions and consists of seven alphanumeric characters.

Two features that really make the PD6730X stand out are its wide viewing angle display and SafeTouch® through-window buttons.

These buttons allow the PD6730X to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.
Features
  • Modbus® Master, Slave, or Snooper Mode
  • Scan up to 16 Modbus Process Variables
  • 5-Digit Decimal or Feet & Inches Level Display
  • 7 Alphanumeric Character 0.4" (10.2 mm) Lower Display for Process Variables, Custom Units, and Tags
  • Independent Scaling, Tag, and Unit for Each PV
  • On-Board Three-Wire RS-485 with Modbus
  • Injection-Molded, IP65, NEMA 4X Plastic Enclosure
  • SafeTouch® Through-Window Button Programming
  • Two Isolated Pulse Outputs Standard, Up to 5 kHz
  • Isolated 4-20 mA Output Option
  • Pulse Input for Rate, Total, and Grand Total
  • 13-Digit Totalizer with Total Overflow Feature
  • Automatic Rate, Total, and Grand Total Unit Conversions • Password Protection
  • Backlight Standard on All Models
  • Operates from -40 to 75°C
  • Data Logging Functions and Modbus Accessible Data
show more
The Vantageview PD6730X is a plastic, field-mounted, RS485 serial input Modbus® RTU scanner capable of scanning up to 16 Modbus variables and displaying them on an easy-to-read, dual-line, LCD display.

It can be programmed as a Modbus RTU master, slave, or snooper.

The PD6730X is available in two upper display line configurations: 5-digit decimal display and feet & inches display with bar graph. The lower line is the same for both versions and consists of seven alphanumeric characters.

Two features that really make the PD6730X stand out are its wide viewing angle display and SafeTouch® through-window buttons.

These buttons allow the PD6730X to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.
Features
  • Modbus® Master, Slave, or Snooper Mode
  • Scan up to 16 Modbus Process Variables
  • 5-Digit Decimal or Feet & Inches Level Display
  • 7 Alphanumeric Character 0.4" (10.2 mm) Lower Display for Process Variables, Custom Units, and Tags
  • Independent Scaling, Tag, and Unit for Each PV
  • On-Board Three-Wire RS-485 with Modbus
  • Injection-Molded, IP65, NEMA 4X Plastic Enclosure
  • SafeTouch® Through-Window Button Programming
  • Two Isolated Pulse Outputs Standard, Up to 5 kHz
  • Isolated 4-20 mA Output Option
  • Pulse Input for Rate, Total, and Grand Total
  • 13-Digit Totalizer with Total Overflow Feature
  • Automatic Rate, Total, and Grand Total Unit Conversions • Password Protection
  • Backlight Standard on All Models
  • Operates from -40 to 75°C
  • Data Logging Functions and Modbus Accessible Data
Close
Close

Specifications

Brand

Communication

  • Modbus
  • RS-485

Conduit Connection

  • 3/4" NPT

Deadband

  • 0 to 100% of Full Scale

Display

  • 5-Digits
  • 7-Segment

Enclosure, Body Material

  • Polycarbonate with UV Stabilizer

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Function

  • Absolute Difference
  • Absolute Value
  • Addition
  • Concentration
  • Constant
  • Difference
  • Division
  • Draw
  • Floating Point
  • Long Integer
  • Multiplication
  • Ratio
  • Square Root
  • Weighted Average

Humidity

  • 0 to 90% Non-Condensing

Input Power

  • 9-30 Vdc

Isolation

  • 500 V Opto-isolated Pulse Input to Power / OC Output with Isolated Input Enabled

K-Factor

  • May Be Programmed from 0.000001 to 9,999,999 Pulses/Unit

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Output

  • 4-20 mA

Storage Temperature

  • -40° to 75° C (-40° to 167° F)
