Images are representations only.

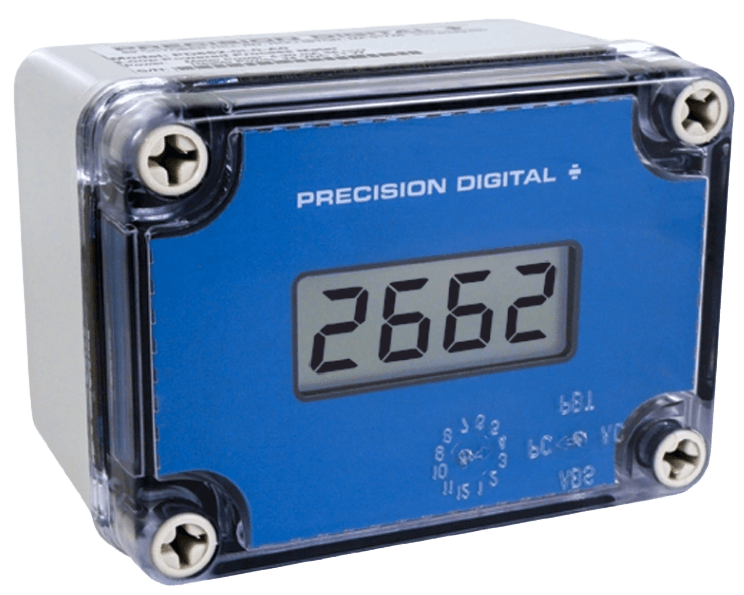

PD662 Survivor NEMA 4X Loop-Powered Process Meter

Brand: Precision Digital Corporation
The PD662 NEMA 4X, CSA Certified loop-powered meter is perfect for applications where a simple, inexpensive display is required and AC power is not available. The PD662 derives all its power from the 4-20 mA loop, including its optional backlight feature.

It can be easily scaled in the field using four push buttons; with or without applying an actual calibration signal.

The PD662’s display will read up to 2999; we call this 3½+ digits! The PD662 is housed in a rugged NEMA 4X enclosure and is provided with one ½" NPT pipe conduit hole.
Features
  • NEMA 4X, IP66 Loop-Powered Field-Mount Process Meter
  • 4-20 mA Input
  • 0.6" (15.2 mm) 3½+ Digits LCD Display; -1999 to 2999
  • 1.7 Volt Drop (3.7 Volt Drop with Backlight)
  • HART® Protocol Transparent
  • Loop-Powered Backlight Option
  • CSA Certified for -40 to 75°C (-40 to 167°F) Operation
  • Four Internal Buttons for Easy Field Scaling
  • Max/Min Display
  • Programmable Noise Filter
  • 32-Point and Square Root Linearization Functions
  • Plastic NEMA 4X, IP66 Enclosure
  • Conformal Coated PCBs for Dust and Humidity Protection
  • One ½" Conduit Hole in Rear of Enclosure
  • Pipe & Panel Mounting Kits
  • Stainless Steel Tag Available
show more
The PD662 NEMA 4X, CSA Certified loop-powered meter is perfect for applications where a simple, inexpensive display is required and AC power is not available. The PD662 derives all its power from the 4-20 mA loop, including its optional backlight feature.

It can be easily scaled in the field using four push buttons; with or without applying an actual calibration signal.

The PD662’s display will read up to 2999; we call this 3½+ digits! The PD662 is housed in a rugged NEMA 4X enclosure and is provided with one ½" NPT pipe conduit hole.
Features
  • NEMA 4X, IP66 Loop-Powered Field-Mount Process Meter
  • 4-20 mA Input
  • 0.6" (15.2 mm) 3½+ Digits LCD Display; -1999 to 2999
  • 1.7 Volt Drop (3.7 Volt Drop with Backlight)
  • HART® Protocol Transparent
  • Loop-Powered Backlight Option
  • CSA Certified for -40 to 75°C (-40 to 167°F) Operation
  • Four Internal Buttons for Easy Field Scaling
  • Max/Min Display
  • Programmable Noise Filter
  • 32-Point and Square Root Linearization Functions
  • Plastic NEMA 4X, IP66 Enclosure
  • Conformal Coated PCBs for Dust and Humidity Protection
  • One ½" Conduit Hole in Rear of Enclosure
  • Pipe & Panel Mounting Kits
  • Stainless Steel Tag Available
PD662-0K0-00
PRECISION DIGITAL PD662 4-20 mA Loop-powered Process Meter, CE/CSA
1 weeks
$310.49USD
$16.16 Shipping

Specifications

Approvals & Certifications

  • CE
  • CSA

Display

  • 0.6" LCD
  • 3-1/2-Digit LCD

Enclosure, Body Material

  • Impact-Resistant Polyester Plastic

Environmental Protection

  • IP66
  • NEMA 4X

Humidity

  • 0 to 90% Non-Condensing

Input

  • 4-20 mA

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Power Options

  • 24 Vdc, 11 W, Maximum

Torque

  • 4.5 In/Lbs

Voltage Drop

  • 1.7 Vdc at 20 mA
  • 4.9 Vdc at 20 mA with Backlight
