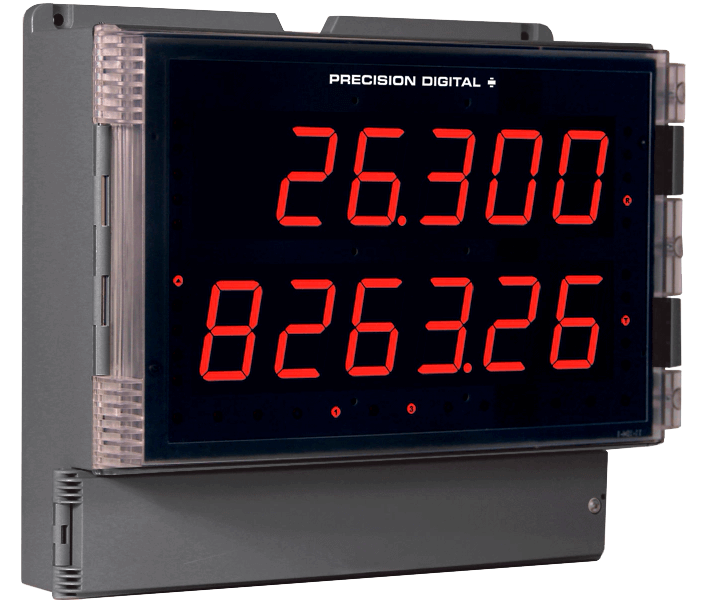

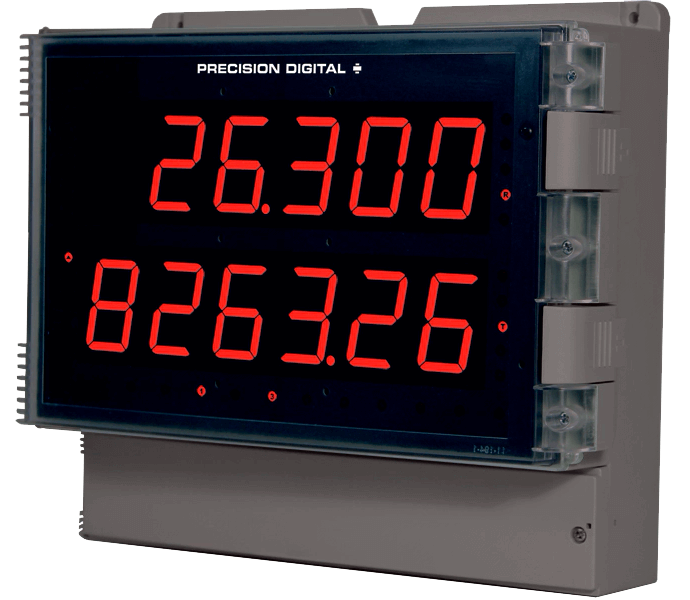

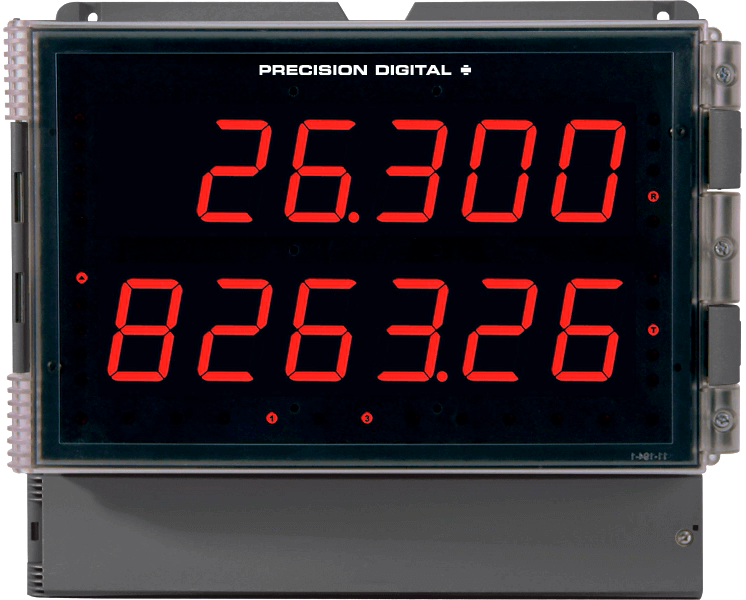

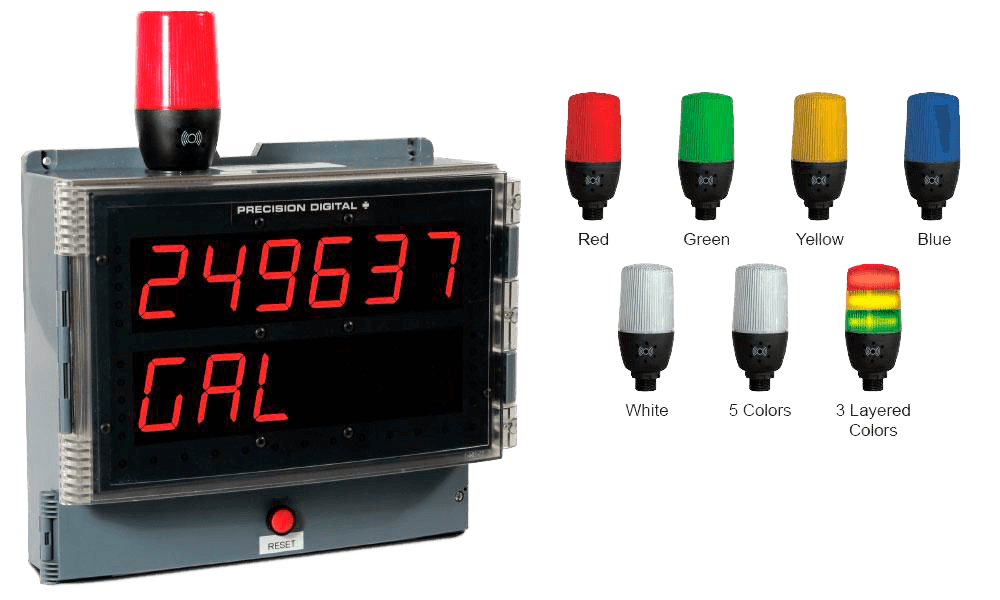

PD2-6300 Helios Pulse Input Flow Rate/Totalizer

Brand: Precision Digital Corporation
Go with the Helios PD2-6300 when you want to display both flow rate and total at the same time from a pulse output flowmeter. The PD2-6300 can display both flow rate and total in six full digits and can also be configured to display non-resettable grand total.

The PD2-6300's NEMA 4X, IP65 rated field mountable enclosure, super bright LEDs, and wide operating temperature range make it perfect for outdoor applications.
Features
  • Large 1.80" Digits
  • Dual Line Display
  • Six Full Digits on Each Line
  • Readable From 100 Feet Away
  • Superluminous Sunlight Readable Display
  • NEMA 4X, IP65 Rated Field Mountable Enclosure
  • Great for Outdoor Use: -40 to 150°F (-40 to 65°C)
  • Program the Meter from a PC with Onboard USB and MeterView® Pro
  • 5, 10, or 24 V Flowmeter Power Supply
  • Displays Rate and Total Simultaneously
  • Count Up or Down, Total & Grand Total
  • Gate Function for Rate Display of Slow Pulse Rates
  • K-Factor, Internal Scaling, or External Calibration
  • Non-Resettable Grand Total
  • 32-Point Linearization
  • On-Board Digital Input (for Remote Reset)
  • Can Convert Pulse Input to an Isolated 4-20 mA Output
show more
Go with the Helios PD2-6300 when you want to display both flow rate and total at the same time from a pulse output flowmeter. The PD2-6300 can display both flow rate and total in six full digits and can also be configured to display non-resettable grand total.

The PD2-6300's NEMA 4X, IP65 rated field mountable enclosure, super bright LEDs, and wide operating temperature range make it perfect for outdoor applications.
Features
  • Large 1.80" Digits
  • Dual Line Display
  • Six Full Digits on Each Line
  • Readable From 100 Feet Away
  • Superluminous Sunlight Readable Display
  • NEMA 4X, IP65 Rated Field Mountable Enclosure
  • Great for Outdoor Use: -40 to 150°F (-40 to 65°C)
  • Program the Meter from a PC with Onboard USB and MeterView® Pro
  • 5, 10, or 24 V Flowmeter Power Supply
  • Displays Rate and Total Simultaneously
  • Count Up or Down, Total & Grand Total
  • Gate Function for Rate Display of Slow Pulse Rates
  • K-Factor, Internal Scaling, or External Calibration
  • Non-Resettable Grand Total
  • 32-Point Linearization
  • On-Board Digital Input (for Remote Reset)
  • Can Convert Pulse Input to an Isolated 4-20 mA Output

Specifications

Display

  • Two lines with 1.8" (46 mm) high digits, red LEDs; 6 digits per line (-99999 to 999999), with lead zero blanking

Display Intensity

  • Eight user selectable intensity levels

Display Update Rate

  • 5/second (200 ms)

Overrange

  • Display flashes 999999

Underrange

  • Display flashes -999999

Display Assignment

  • Display lines 1 & 2 may be assigned to rate, total, grand total, alternate rate & total, max/min, units (lower display only), set points, Modbus input, & more.

Programming Methods

  • Four programming buttons, digital inputs, PC and MeterView Pro software, or Modbus registers.

Noise Filter

  • Programmable from 2 to 199 (0 will disable filter)

Filter Bypass

  • Programmable from 0.1 to 99.9% of calibrated span

Recalibration

  • All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months.

Max/Min Display

  • Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off

Password Restrict Modification

  • Pass 3: Restricts all programming, function keys, and digital inputs
  • Pass 2: Allows use of function keys, digital inputs and editing set/reset points
  • Pass 1: Allows use of function keys and digital inputs

Power Options

  • 12-24 VDC ± 10%, 15 W max. Powered over USB for configuration only
  • 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max

Isolated Transmitter Power Supply

  • Terminals P+ & P-: 24 VDC ± 10%. 12-24 VDC powered models selectable for 24, 10, or 5 VDC supply (internal P+/P- switch). 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply.

Non-Volatile Memory

  • All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.

Fuse

  • Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse

Normal Mode Rejection

  • Greater than 60 dB at 50/60 Hz

Isolation

  • 4 kV input/output-to-power line, 500 V input-to-output or output-to-P+ supply

Overvoltage Category

  • Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III

Environmental

  • Relative humidity: 0 to 90% non-condensing
  • Operating Temperature Range: -40 to 150° F (-40 to 65° C)
  • Storage Temperature Range: -40 to 185° F (-40 to 85° C)

Connections

  • Removable and integrated screw terminal blocks accept 12 to 22 AWG wire

Enclosure

  • UL Type 4X, IP65 rated. Polycarbonate & glass blended plastic case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, black nylon threaded hole plugs with backing nuts.

Wall Mounting

  • Four (4) Mounting Holes Provided for Mounting Meter to Wall

Pipe Mounting

  • Optional pipe mounting kit (PDA6260) allows for pipe mounting. Sold separately

Tightening Torque

  • Digital I/O and RS485 Terminals: 2.2 lb-in (0.25 Nm)
  • Removable Screw Terminals: 5 lb-in (0.56 Nm)

Overall Dimensions

  • 10.63" x 12.59" x 4.77" (270 mm x 319.7 mm x 121.2 mm) (H x W x D)

Weight

  • 6.10 lbs (2.76 kg)

UL File Number

  • UL & C-UL Listed. E160849; 508 Industrial Control Equipment

Warranty

  • 3 years parts & labor

USB Connection

  • Cable: USB A Male to Micro-B Cable
  • Connector Type: Micro-B receptacle
  • Compatibility: USB 2.0 Standard, Compliant
  • Driver: Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows 7 32/64-Bit, Windows 10 32/64-Bit
  • Power: USB Port
