PDS178 Scanning & Alarm System

Brand: Precision Digital Corporation

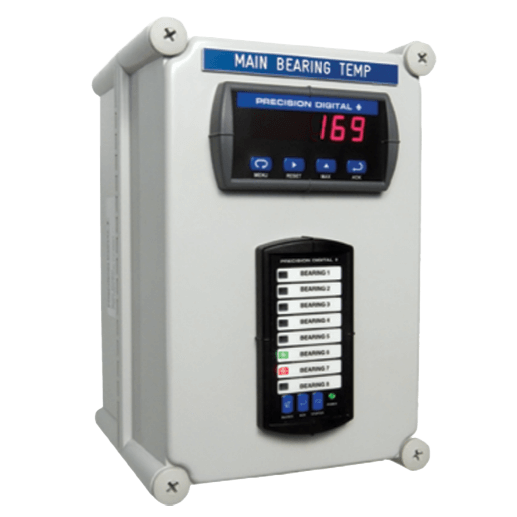

The PDS178 Watchdog Temperature Scanning & Alarming System brings together a popular combination of Precision Digital products: the Trident meter, the Minimux II scanner, and the PDA2821 NEMA 4X enclosure.

The scanner automatically switches between up to eight (8) input signals (4-20 ma, ±10 V, TC, or RTD) and sends them to the Trident meter for display. Signal switching is done via DPST reed relays. The Watchdog can be used in a variety of temperature and process monitoring applications.

A very common application for this system is to monitor bearing temperatures. The Trident meter included with this system is available with standard 0.56" (14.2 mm) high LED digits or large 1.2" (30.5 mm) high LEDs.
Features
Trident Temperature & Process Meter
  • 4-20 ma, ±10 V, TC & RTD Inputs
  • 4-Digit Display
  • Two Relays for Alarm Signal to PD138
  • NEMA 4X, IP65 Front
  • Sunlight Readable Display

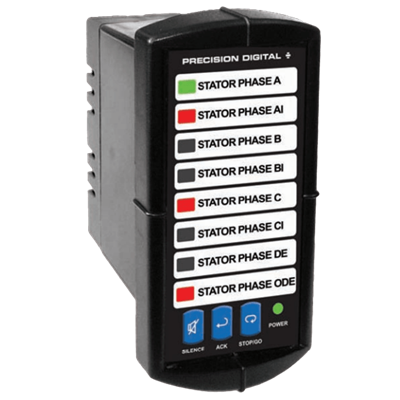

Minimux II Temperature/Process Scanner
  • 8 Inputs per Unit
  • Thermocouples, RTDs, and Process inputs
  • Adjustable Dwell Time for Each Channel
  • Independent Alarm Input for Each Channel
  • First-Out Alarm Indication
  • Alarms Indicated by LEDs, Built-in Horn, and Relay
  • Built-in 85 dB Horn with Silence Pushbutton
  • Stop-on-Alarmed Channel (Field Select)
  • Sunlight Readable Indication
  • NEMA 4X/IP65 Front
Plastic NEMA 4X Enclosure
  • NEMA 1, 4, 4X, 6, 12, and 13, IP66
  • Wall Mountable
show more
Images are representations only.
The PDS178 Watchdog Temperature Scanning & Alarming System brings together a popular combination of Precision Digital products: the Trident meter, the Minimux II scanner, and the PDA2821 NEMA 4X enclosure.

The scanner automatically switches between up to eight (8) input signals (4-20 ma, ±10 V, TC, or RTD) and sends them to the Trident meter for display. Signal switching is done via DPST reed relays. The Watchdog can be used in a variety of temperature and process monitoring applications.

A very common application for this system is to monitor bearing temperatures. The Trident meter included with this system is available with standard 0.56" (14.2 mm) high LED digits or large 1.2" (30.5 mm) high LEDs.
Features
Trident Temperature & Process Meter
  • 4-20 ma, ±10 V, TC & RTD Inputs
  • 4-Digit Display
  • Two Relays for Alarm Signal to PD138
  • NEMA 4X, IP65 Front
  • Sunlight Readable Display
Minimux II Temperature/Process Scanner
  • 8 Inputs per Unit
  • Thermocouples, RTDs, and Process inputs
  • Adjustable Dwell Time for Each Channel
  • Independent Alarm Input for Each Channel
  • First-Out Alarm Indication
  • Alarms Indicated by LEDs, Built-in Horn, and Relay
  • Built-in 85 dB Horn with Silence Pushbutton
  • Stop-on-Alarmed Channel (Field Select)
  • Sunlight Readable Indication
  • NEMA 4X/IP65 Front
Plastic NEMA 4X Enclosure
  • NEMA 1, 4, 4X, 6, 12, and 13, IP66
  • Wall Mountable

PDS178

Display

Specifications

Display

  • Red LEDs

Environmental Protection

  • IP66
  • NEMA 4X

Input

  • RTDs
  • Thermocouples

Operating Temperature

  • 0° to 65° C (32° to 150° F)

Operating Voltages

  • 50/60 Hz

Power Supply

  • 115 Vac

Storage Temperature

  • -40° to 85° C (-40° to 185° F)
