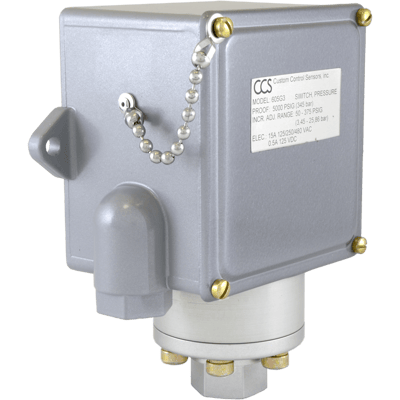

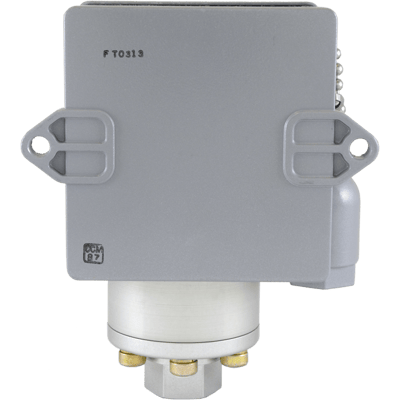

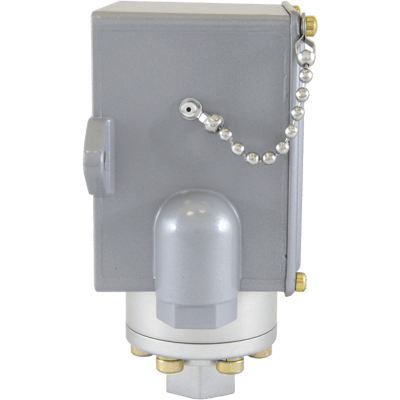

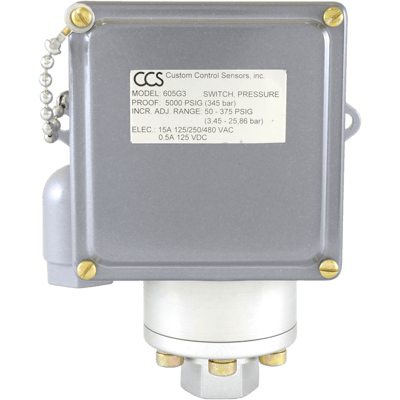

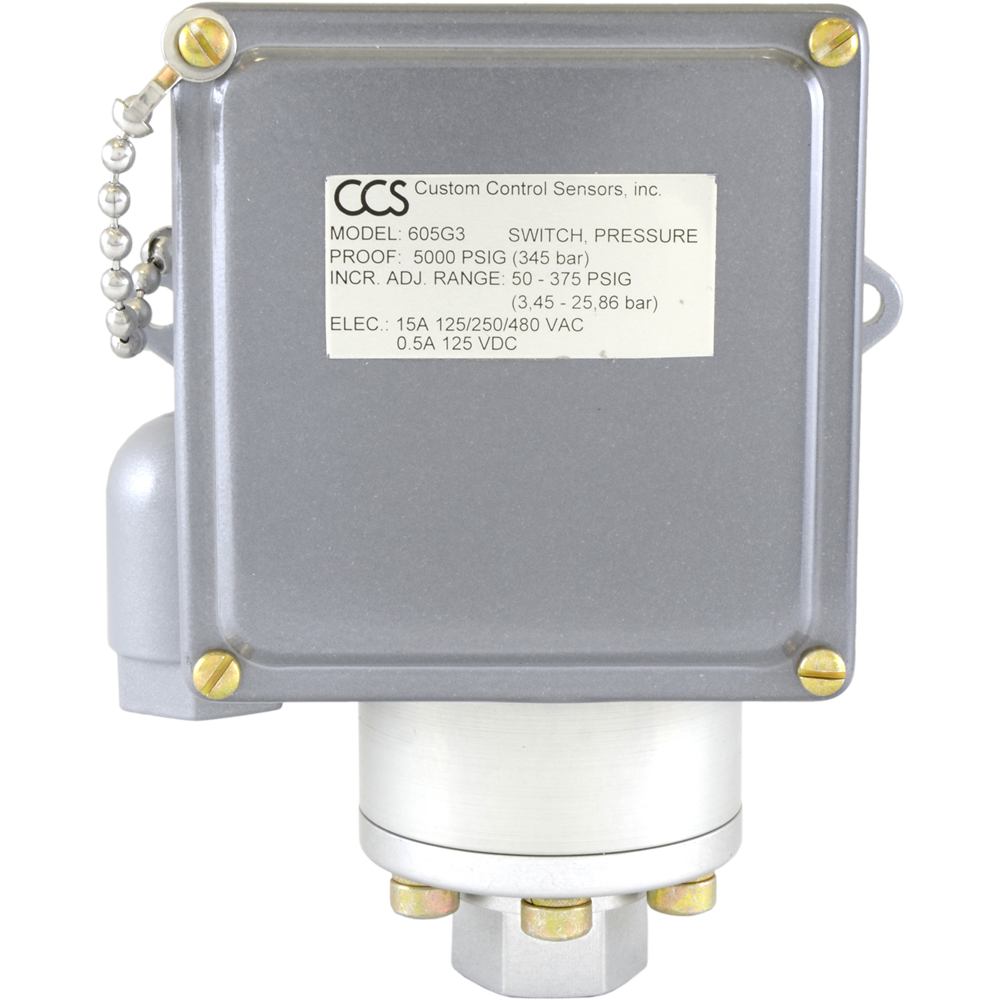

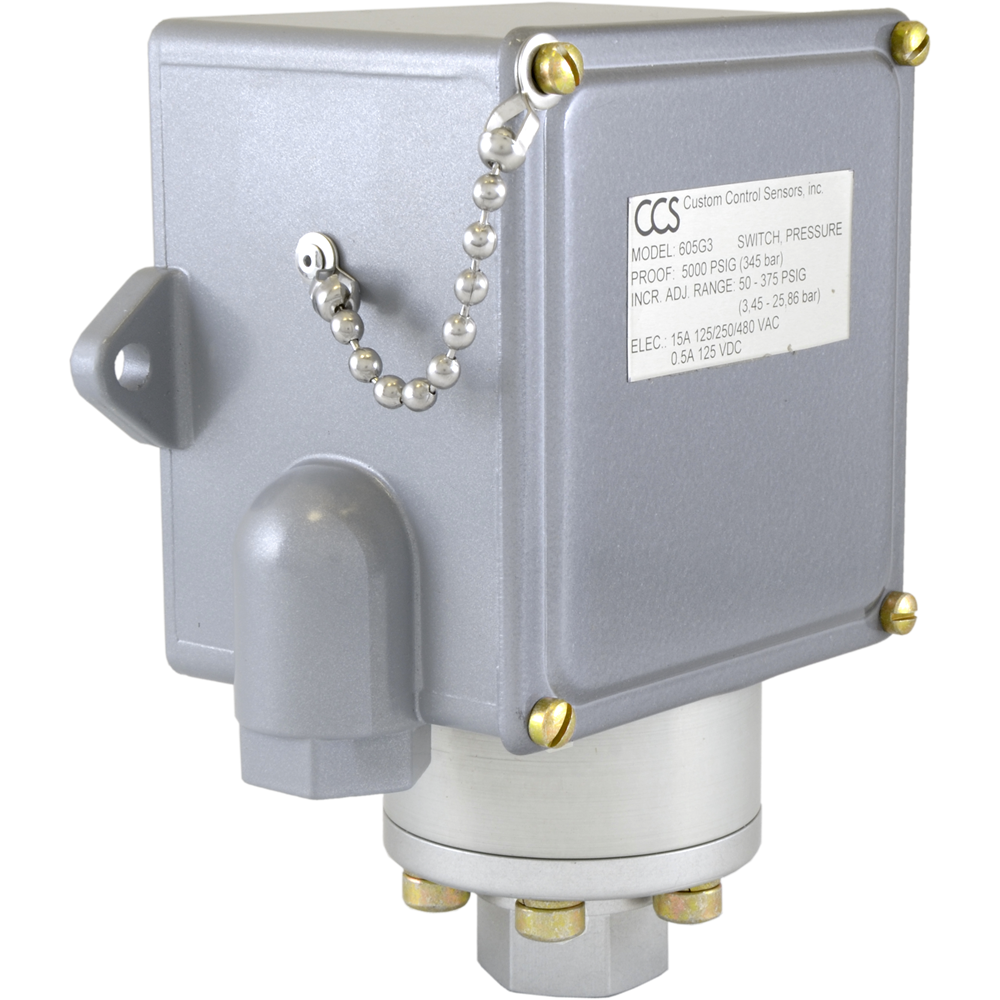

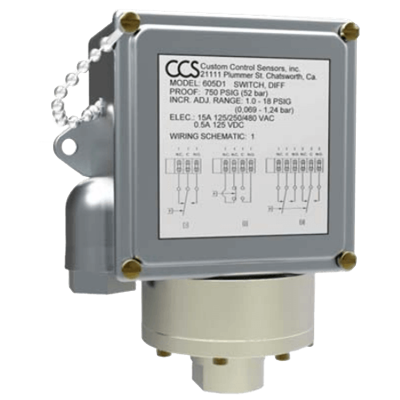

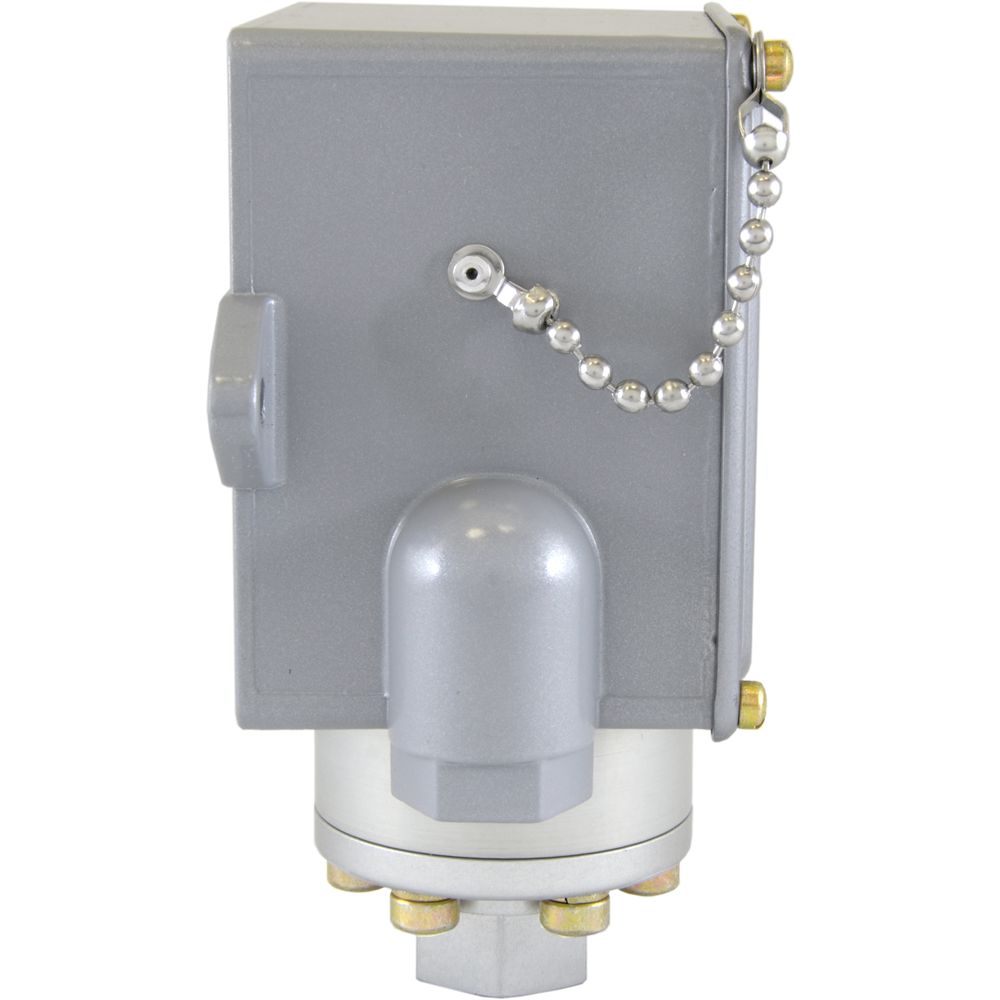

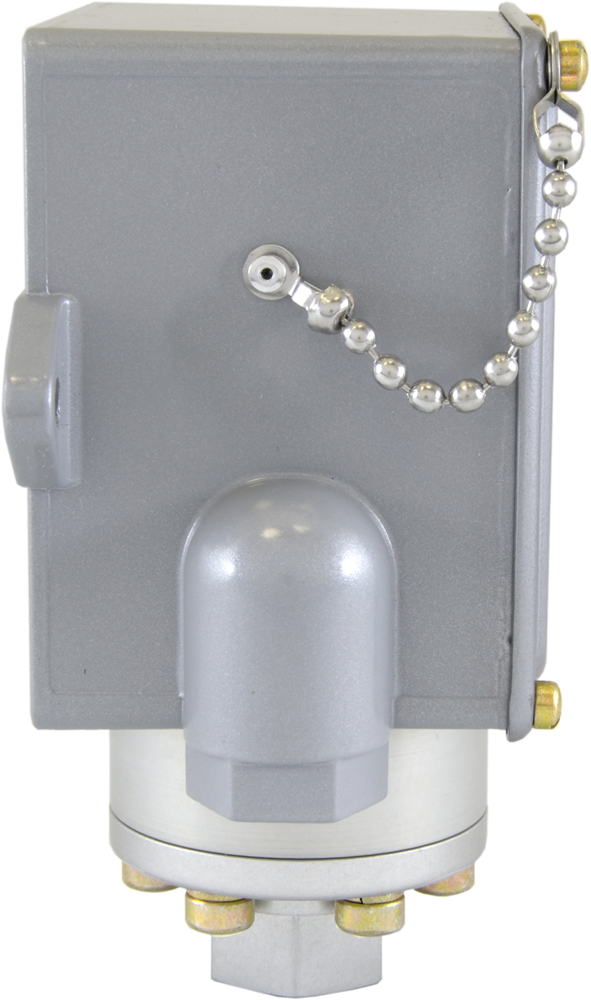

Images are representations only.
Description
- Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers.
- Engineering based on aerospace technology.

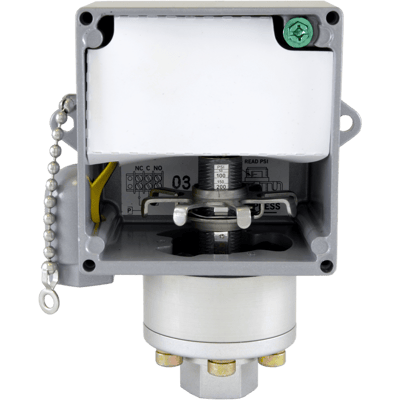

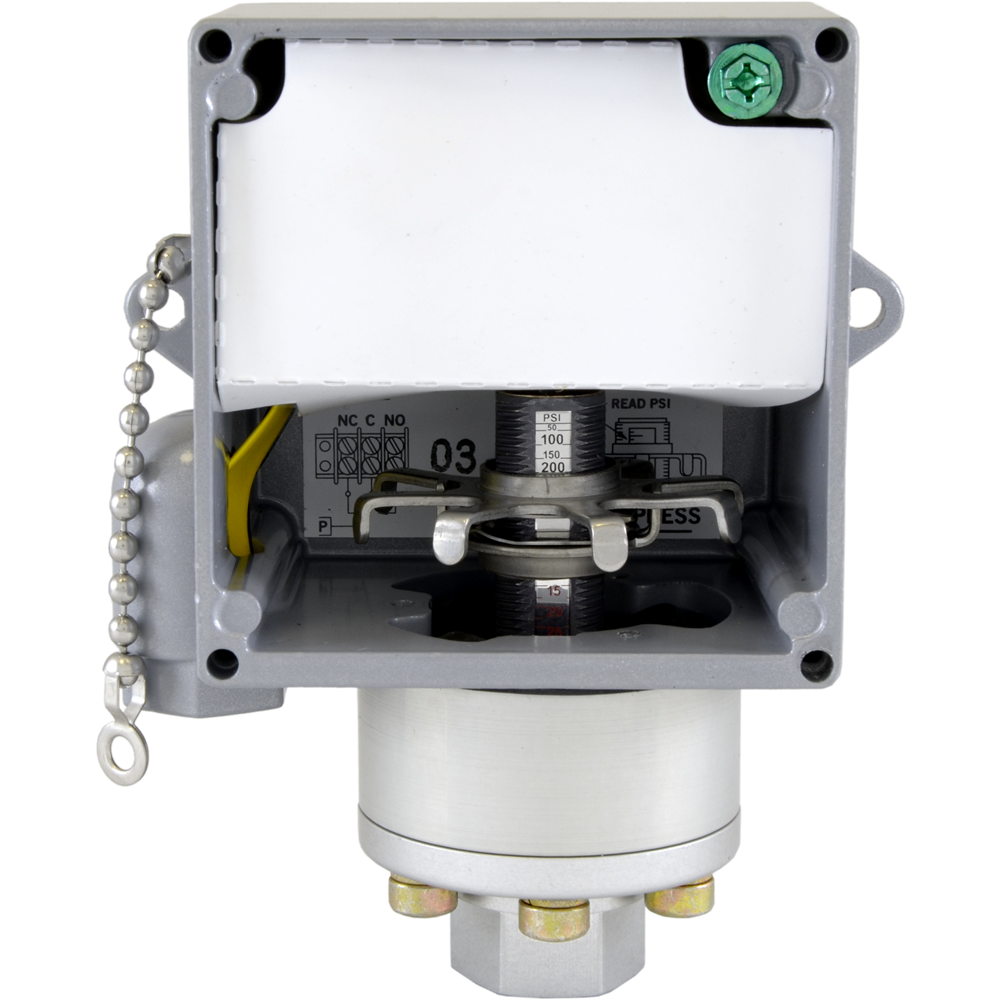

- Rigid, midsize and internally adjustable for convenient fi eld set point adjustment.
- Repeatable and stable set points.
- Vibration and shock resistant.
- High cycle life.
- High over-pressure capability (System and Proof).

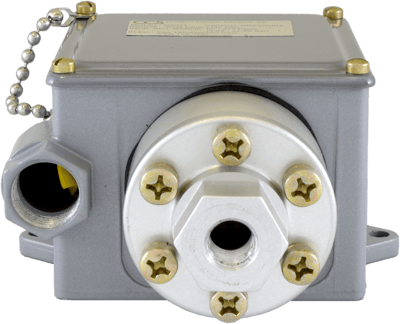

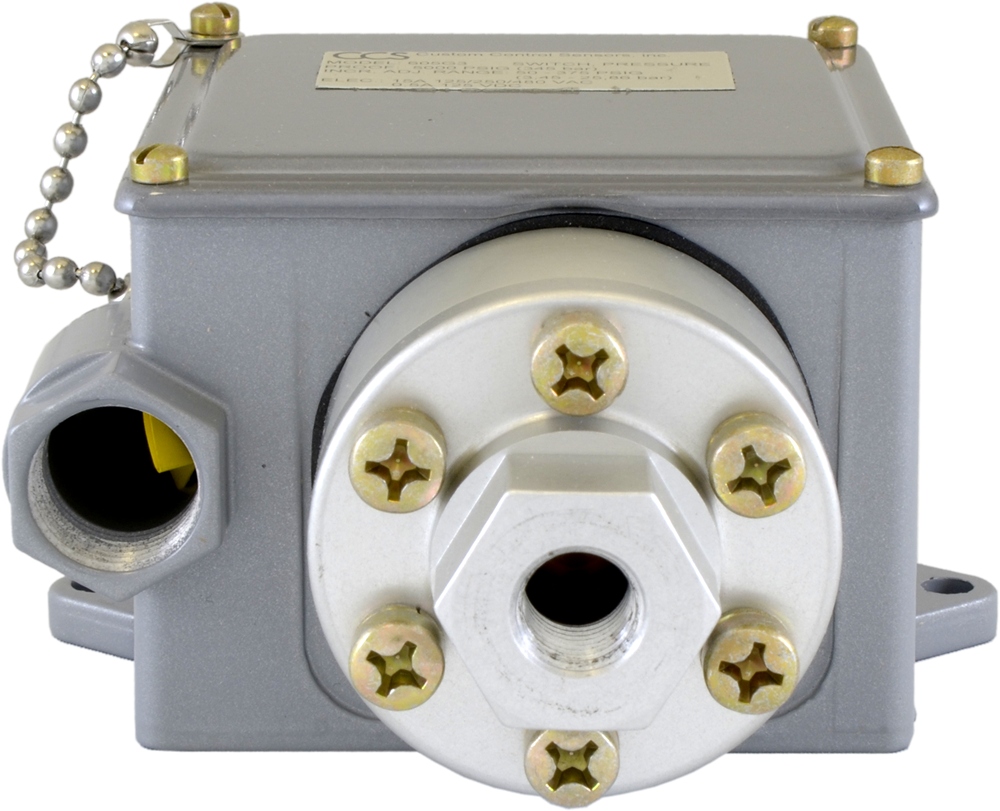

- Bottom electrical conduit prevents the entry of ambient moisture and lessens mounting interference.
- Suitable for cable gland entry.
- Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.
Configure
605GZ
Base Model
Welded Internal Diaphragm
A metal diaphragm is welded to the inside of the pressure port, eliminating the O-Ring. This arrangement may be desired for processes where O-Rings may present a problem.
Process Connection
Diaphragm
O-Ring
Output
Output
Output
Output
Output
Output
Electrical Contacts
Manual Reset
This Manual Reset option allows for automatic actuation on increasing pressure.
Specifications
Specifications
Brand
Adjustment Type
- Field Adjustable
Approvals & Certifications
- CE
- CRN
- CRN - British Columbia
- CRN - Manitoba
- CRN - N.W. Territories
- CRN - Saskatchewan
- CSA
- EMC
- LVD
- PED
- RoHS
Deadband, Approximate
- bar: 0.06 to 12.1
- kPa: 5.6 to 1,206.5
- psig: 0.8 to 175
Diaphragm Material
- Polyimide
- Viton Dacron
Electrical Connectors
- Terminal Strip - Internal
Electrical Contacts
- Gold
- Silver
Electrical Rating
- 1 A at 125 Vac, 50/60 Hz
- 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 DC, 0.2 A at 250 DC
- 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP66
- NEMA 13
- NEMA 4
- NEMA 4X
- Weatherproof
Manual Reset
- Manual Reset on Increasing Pressure
NACE & NIST
- NACE
NPT Connection
- 1/2" NPT Female
Operating Temperature
- -40° to 86° C (-40° to 187° F)
O-Ring Material
- Ethylene Propylene (EPR)
- Viton
Process Connection Material
- 316 Stainless Steel
Proof Pressure
- bar: 51.7 to 345
- kPa: 5,171 to 34,473
- psig: 750 to 5,000
Service
- Sweet (Oil & Gas)
Set Point - Decreasing
- bar: 0.03 to 147
- kPa: 2.8 to 14,651
- psig: 0.4 to 2,125
Set Point - Increasing
- bar: 0.08 to 159
- kPa: 8.3 to 15,858
- psig: 1.2 to 2,300
System Pressure
- bar: 34.5 to 207
- kPa: 3,447 to 20,684
- psig: 500 to 3,000
