611G Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 180 psig, 10.4 to 1,241.0 kPa, 0.103 to 12.41 bar
    • Decreasing: 1 to 153 psig, 6.9 to 1,055.5 kPa, 0.069 to 10.55 bar
  • Deadband: Approximately
    • Bottom Range: 0.5 to 15 psi, 3.4 to 103.05 kPa 0.034 to 1.03 bar
    • Top Range: 2 to 27 psi, 13.8 to 186.09 kPa, 0.138 to 1.86 bar
  • System Pressure (Maximum): 250 to 500 psig, 1,723.68 to 3,447.3 kPa, 17.2 to 34.5 bar
  • Proof Pressure: 500 to 1,000 psig, 3,447.4 to 6,894.7 kPa, 34.5 to 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Male NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • CE Mark, General Purpose
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 180 psig, 10.4 to 1,241.0 kPa, 0.103 to 12.41 bar
    • Decreasing: 1 to 153 psig, 6.9 to 1,055.5 kPa, 0.069 to 10.55 bar
  • Deadband: Approximately
    • Bottom Range: 0.5 to 15 psi, 3.4 to 103.05 kPa 0.034 to 1.03 bar
    • Top Range: 2 to 27 psi, 13.8 to 186.09 kPa, 0.138 to 1.86 bar
  • System Pressure (Maximum): 250 to 500 psig, 1,723.68 to 3,447.3 kPa, 17.2 to 34.5 bar
  • Proof Pressure: 500 to 1,000 psig, 3,447.4 to 6,894.7 kPa, 34.5 to 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Male NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • CE Mark, General Purpose
Close

Displaying prices & availability for United States in USD. Change location or currency

19 models matching criteria
611G4111
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area
2 In Stock
611G1 @ 4 PSI INCR
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, Pre-Set, 1/4" NPT Aluminum Port, Buna-N, Polyimide View More
  • Fixed Set Point Range:

    • Increasing: 4 PSIG

  • Deadband:
    • At Bottom of Range: 0.5 psi
    • At Top of Range: 2 psi

  • System Pressure (Maximum): 250 psig
  • Proof Pressure: 500 psig
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna-N

  • Relay: SPDT
  • CE Mark, General Purpose
Contact For Inventory
611G2 @ 25 PSI DECR
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, Pre-Set, 1/4" NPT Aluminum Port, Buna-N, Polyimide View More
  • Fixed Set Point Range:

    • Decreasing: 25 PSIG

  • Deadband:
    • At Bottom of Range: 3 psi
    • At Top of Range: 6.5 psi

  • System Pressure (Maximum): 500 psig
  • Proof Pressure: 1000 psig
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna-N

  • Relay: SPDT
  • CE Mark, General Purpose
Contact For Inventory
611G2 @ 70 PSI INCR
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, Pre-Set, 1/4" NPT Aluminum Port, Buna-N, Polyimide View More
  • Fixed Set Point Range:

    • Increasing: 70 PSIG

  • Deadband:
    • At Bottom of Range: 3 psi
    • At Top of Range: 6.5 psi

  • System Pressure (Maximum): 500 psig
  • Proof Pressure: 1000 psig
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna-N

  • Relay: SPDT
  • CE Mark, General Purpose
Contact For Inventory
611G2411
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, Pre-Set, 1/4" NPT Aluminum Port, Buna-N, Polyimide View More
  • Set Point Range:

    • Increasing: 50 PSIG, ±2
    • Decreasing: 35 PSIG, ±5

  • Deadband: 15 PSI
  • System Pressure (Maximum): 500 PSIG
  • Proof Pressure: 1000 PSIG
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna-N

  • Relay: SPDT
  • CE Mark, General Purpose
Contact For Inventory

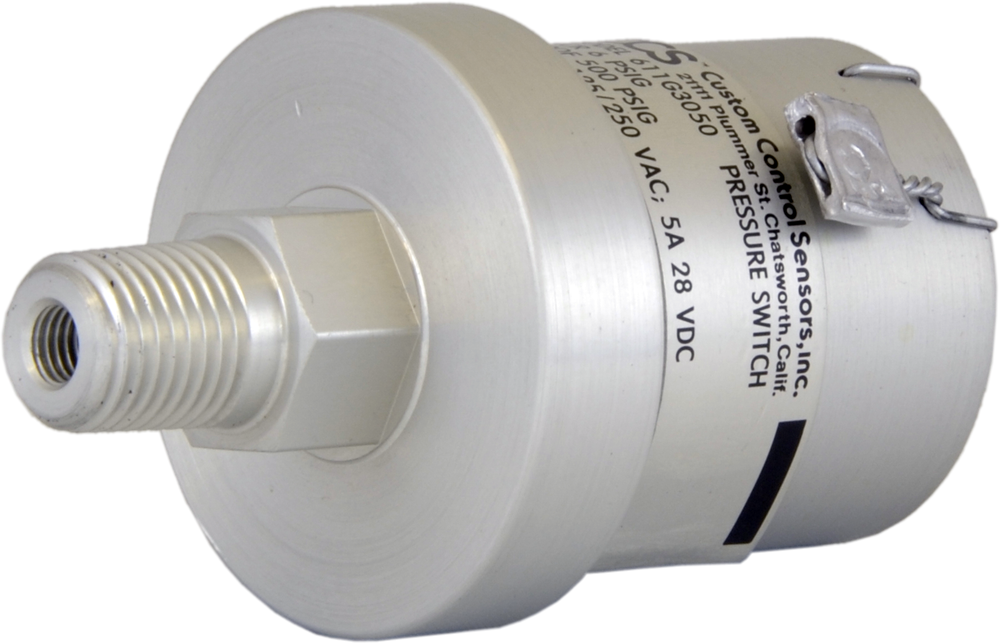

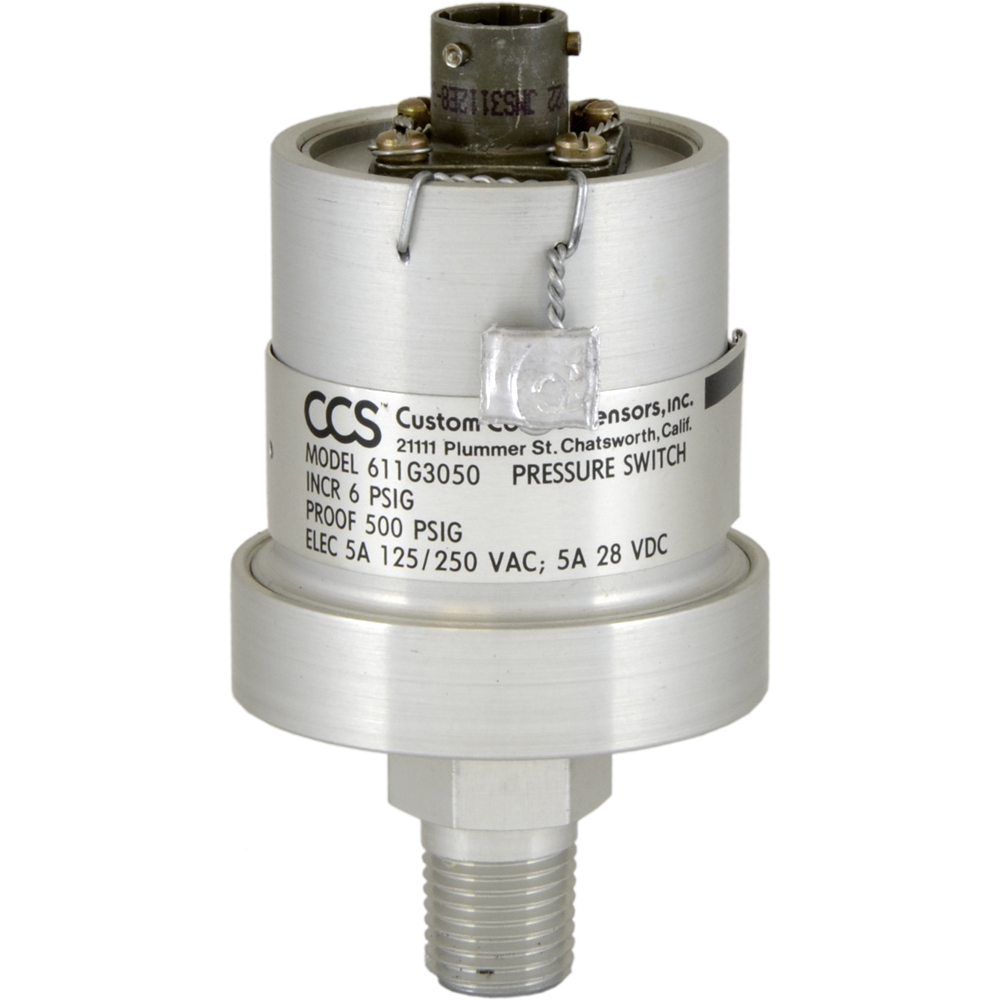

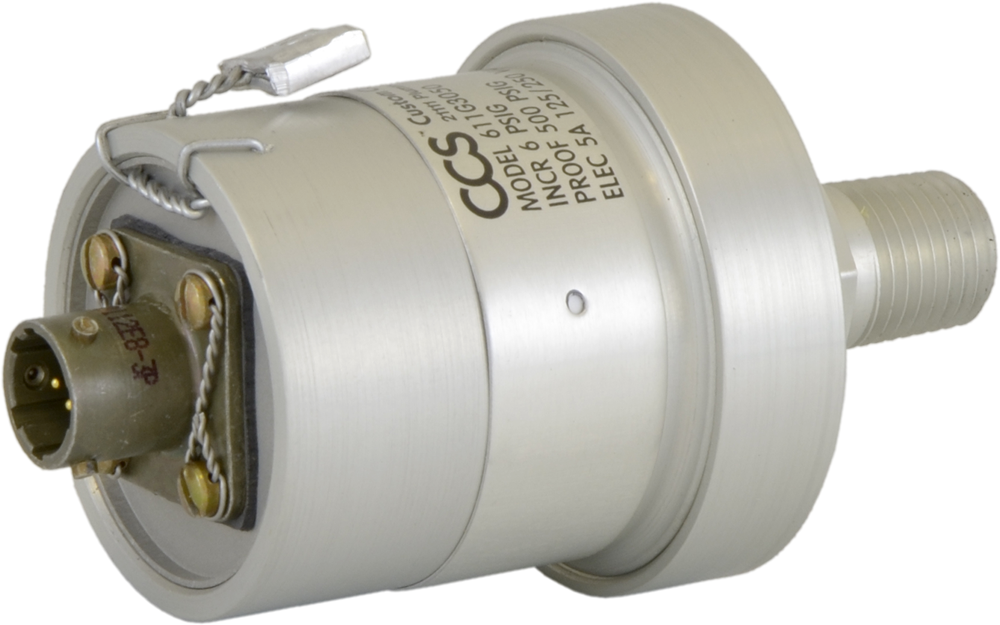

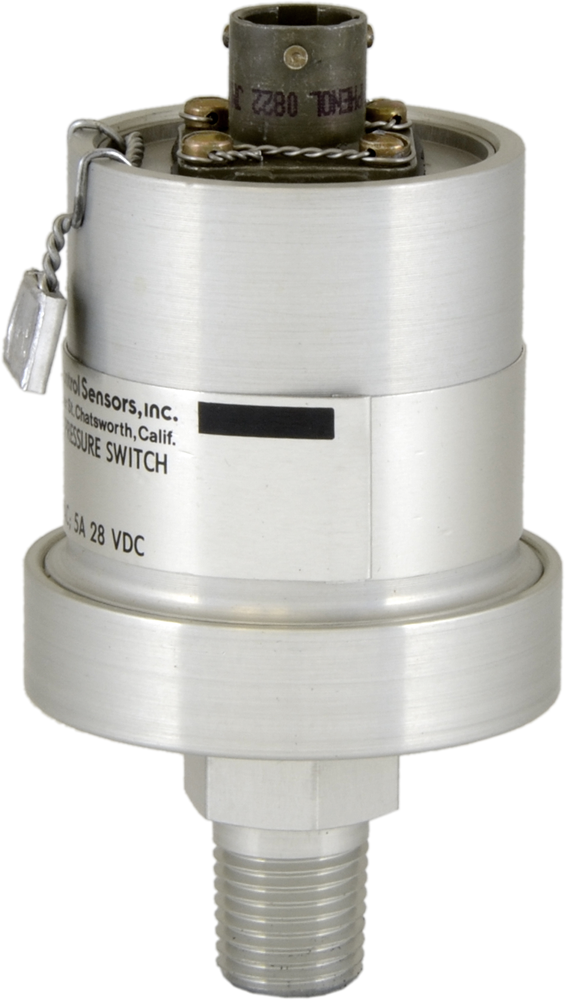

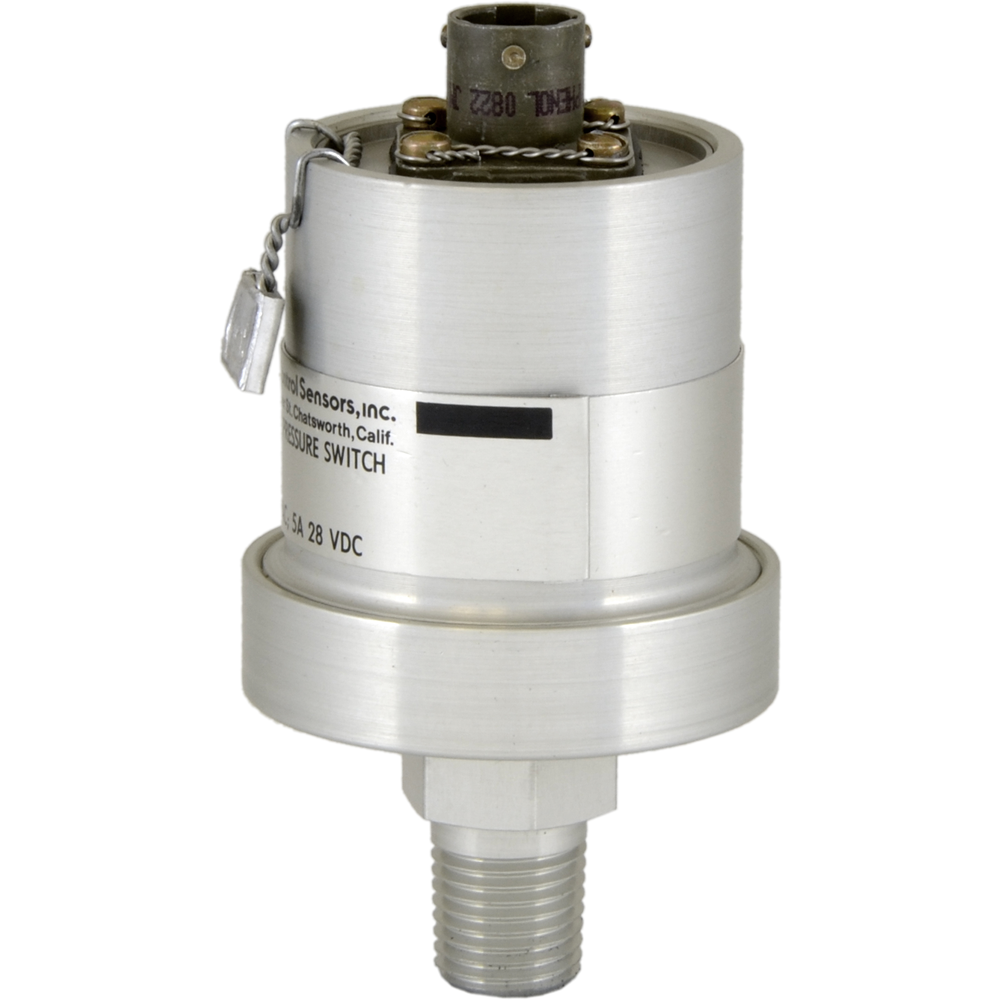

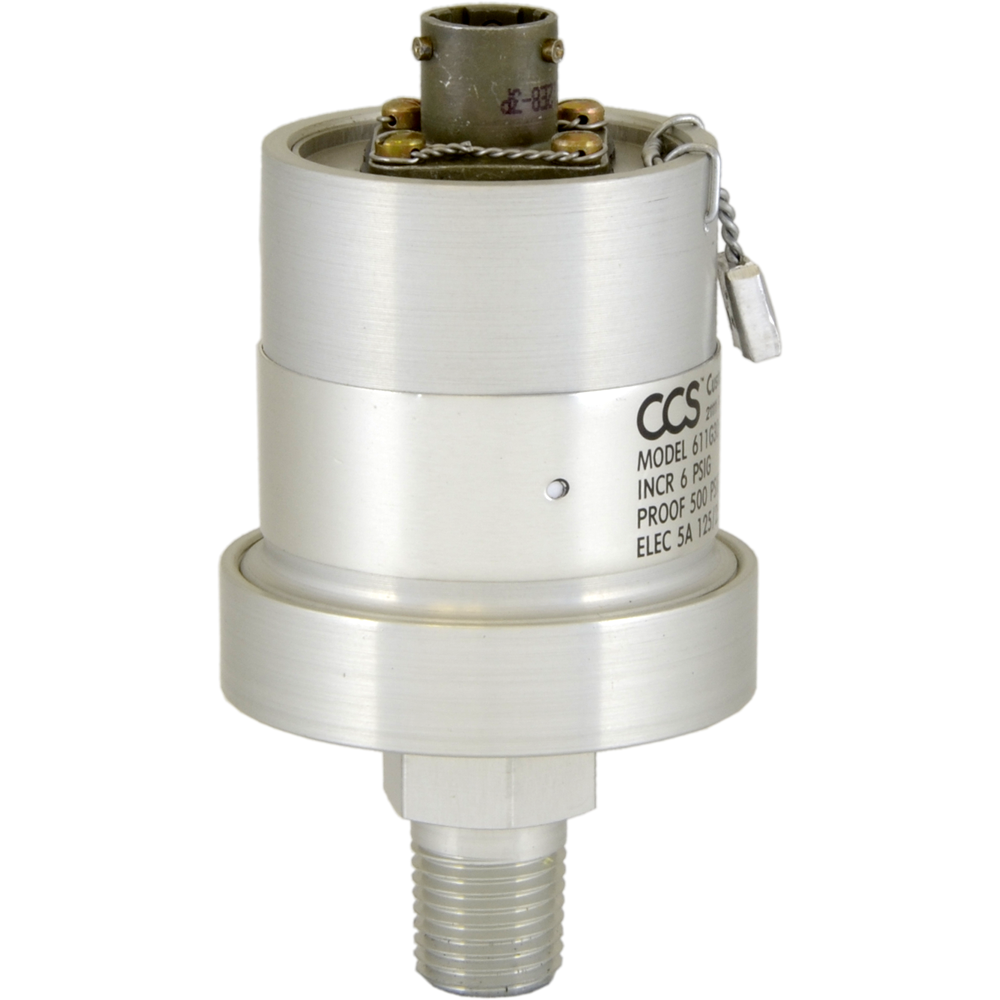

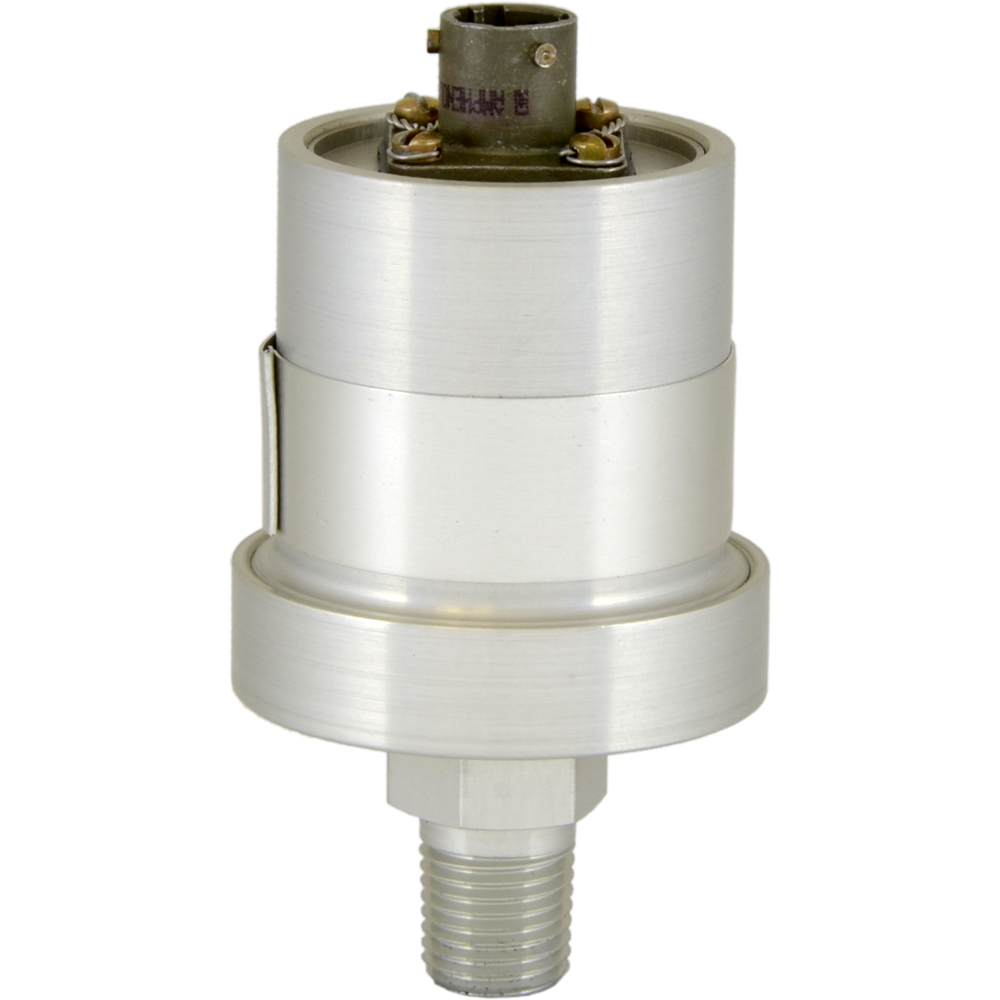

611G3050
CCS DUAL-SNAP Press. Switch, Non-Hazardous Area, Pre-Set 6 psi Increasing, 1/4" NPT Aluminum Port, Buna-N, Polyimide
Contact For Inventory
611G392 @ 0.4 PSI DECR
CCS DUAL-SNAP Press. Switch, Non-Haz, 1/4" NPT Aluminum Port, SET @ .4 +/- .25 PSIG DECR View More
  • Fixed Set Point Range:
    • Decreasing: 0.4 PSIG

Contact For Inventory
611G4038
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area
Contact For Inventory
611G9023
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, Pre-Set, 1/4" NPT Aluminum Port, Buna-N, Polyimide View More
MANUFACTURING SPECIFICATIONS:



    INCR: 70 +/- 1.6 PSIG[/li]DECR: (63.5 PSIG)REF[/li]DB: 6.5+2.6/-2.9 PSI[/li]PROOF: 1000 PSIG[/li]SYSTEM:
      TEST MEDIA: AIR[/li]OPERATING MEDIA: AIR[/li]
    [/li]EXTERNAL WIRE CODE: STD[/li]PRESS. CONNECT: STD[/li]ELECT. CONNECT: STD[/li]ELEC. RATING:
      11 AMP , 1/4 HP 125/250 VAC, 5 AMPS @[/li]
    • 30VDC, .5 AMP @ 125 VDC.
    [/li]
Contact For Inventory
611GC1
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, Pre-Set, 1/4" NPT 316 SST Welded Port & Diaphragm View More
  • Fixed Set Point Range: To be advised at time of purchase

    • Increasing: 1.5 to 25 psig, 10.4 to 172.4 kPa, 0.103 to 1.72 bar
    • Decreasing: 1.0 to 23 psig, 6.9 to 158.6 kPa, 0.069 to 1.59 bar

  • Deadband:
    • At Bottom of Range: 0.5 psi
    • At Top of Range: 2 psi

  • System Pressure (Maximum): 250 psig
  • Proof Pressure: 500 psig
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel Welded Capsule

  • Relay: SPDT
  • CE Mark, General Purpose
Contact For Inventory
Show More Models (8)
Close
Close

Specifications

Brand

Adjustment Type

  • Factory Set (Pre-Set)
  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • EMC
  • LVD
  • RoHS

Deadband, Approximate - Bottom of Range

  • bar: 0.034 to 1.03
  • kPa: 3.5 to 103.4
  • psi: 0.5 to 15

Deadband, Approximate - Top of Range

  • bar: 0.138 to 1.86
  • kPa: 13.8 to 186.1
  • psi: 2 to 27

Diaphragm Material

  • Polyimide

Electrical - Free Leads

  • 18” (45 cm) Free Leads
  • 18” (45 cm) Teflon Leadwire

Electrical Connectors

  • 1/2” NPT Male
  • Electrical Connector with 4-Blades, Conforms to DIN-43650
  • Electrical Connector with Gold Contacts & Blades, Conforms to DIN-43650

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum
  • Stainless Steel

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4
  • Weatherproof

NACE & NIST

  • NACE

NPT Connection

  • 1/4” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N
  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • Aluminum
  • Brass

Proof Pressure

  • bar: 34.5 to 68.9
  • kPa: 3,447 to 6,895
  • psig: 500 to 1,000

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.07 to 10.55
  • kPa: 6.9 to 1,055
  • psig: 1 to 153

Set Point - Increasing

  • bar: 0.103 to 12.41
  • kPa: 10.4 to 1,241
  • psig: 1.5 to 180

System Pressure

  • bar: 17.2 to 34.5
  • kPa: 1,724 to 3,447
  • psig: 250 to 500
