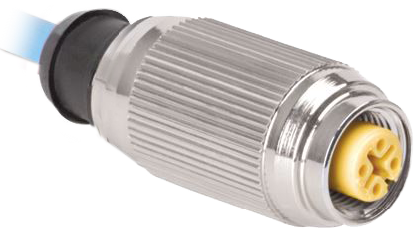

Images are representations only.

HART eurofast Single Ended Cordset

Brand: Turck
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • 316 Stainless Steel
  • Control Circuits
    • 2-Wire Analog
    • HART
show more
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • 316 Stainless Steel
  • Control Circuits
    • 2-Wire Analog
    • HART
27 models matching criteria
RKC 8T-15/S1587
TURCK 8-Wire M12 eurofast flexlife Cordset, 8-Pin, Female, TPU/Yellow, 15m, Weldlife jacketed Cable
6 - 9 weeks
$161.15 USD
$15.56 Shipping
P-RKG 4T-950-1 RSG 4T
TURCK eurofast Drop Cordset, 4-Pin, F/M, 2-Wire Analog/HART, PVC/Blue, CSA, 250V, I/S, 1m, NCNR
2 - 8 weeks
P-RKG 4T-950-14RSG 4T
TURCK eurofast Drop Cordset, 4-Pin, F/M, 2-Wire Analog/HART, PVC/Blue, CSA, 250V, I/S, 14m, NCNR
2 - 8 weeks
P-RKG 4T-950-6RSG 4T
TURCK eurofast Drop Cordset, 4-Pin, F/M, 2-Wire Analog/HART, PVC/Blue, CSA, 250V, I/S, 6m, NCNR
Out of Stock
P-RKG 5.34T-1727-1M
TURCK M12 eurofast Cordset, 5-Pin, Female, PVC /Blue, 250V, 1m, NCNR
2 - 8 weeks
P-RKG 5.34T-1727-75M
TURCK M12 eurofast Cordset, 5-Pin, Female, PVC /Blue, 250V, 75m, NCNR
2 - 8 weeks
P-RKG 5.3T-1095XL-6M
TURCK M12 eurofast Drop Cordset, 5-Pin, Female, Extremelife/Black, 250V, 6m, NCNR View More
  • Process Cordset:
    • Analog and Discrete Circuits
  • Connector:
    • "eurofast" Series
    • Female Single Ended
    • Nickel Plated Brass
    • 5 Contacts / 4 x #22 AWG Wires
  • Wires:
    • (4) x # 22 AWG Circuits
    • (1) x # 22 Drain/Foil Shield
    • Black ExtremeLife Jacket
  • Length of Cordset:
    • 6 Meters
  • Protection Class:
    • NEMA 1,3,4,6P, IEC IP68, IP69K
  • Approvals:
    • UL: ITC-ER, PLTC-ER, 105°C, -60°C Cold Bend
    • CSA: CIC, 90°C, 300V
2 - 8 weeks
P-RKG 5.64T-1877-2M
TURCK M12 eurofast Cordset, 5-Pin, Female, TPU/Black, 250V, 2m, NCNR View More
  • Materials of Construction:
    • Molded Head: Black TPU
    • Coupling Nut: Nickel Plated Brass
    • Contact: Gold Plated Brass
    • Jacket: Black PVC
  • Single-Ended 5-Pin Female
  • 5x22 AWG
  • 24 AWG Drain/Foil, Braided Shield
  • -40°C to +105°C (-40°F to +221°F)
  • Length: 2 m
  • NEMA 1, 3, 4, 6P, IEC IP68, IP69K, CSA: CMX Outdoor, CMG/AWM, 250V
2 - 8 weeks
P-WKE 5.3T-1095XL-4M
TURCK M12 eurofast Drop Cordset, 5-Pin, Right Angle Female, Extremelife/Black, 250V, 4m, NCNR
Out of Stock
P-WKE 5.3T-1095XL-8M
TURCK M12 eurofast Drop Cordset, 5-Pin, Right Angle Female, Extremelife/Black, 250V, 8m, NCNR View More
  • Process Cordset:
    • Analog and Discrete Circuits
  • Connector:
    • "eurofast" Series
    • Right Angle Female Single Ended
    • Nickel Plated Brass
    • 5 Contacts / 4 x #22 AWG Wires
  • Wires:
    • (4) x # 22 AWG Circuits
    • (1) x # 22 Drain/Foil Shield
    • Black ExtremeLife Jacket
  • Length of Cordset:
    • 8 Meters
  • Protection Class:
    • NEMA 1,3,4,6P, IEC IP68, IP69K
  • Approvals:
    • UL: ITC-ER, PLTC-ER, 105°C, -60°C Cold Bend
    • CSA: CIC, 90°C, 300V
2 - 8 weeks

Specifications

Brand

Approvals & Certifications

  • CSA
  • UL

Connection Material

  • Nickel-Plated Brass
  • Stainless Steel

Connection Pin-Out

  • 4-Pin
  • 5-Pin

Connection Style

  • eurofast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1, 3, 4, 6P / IP10, 54, 66
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 3-Wire
  • 4T-188: 3 x 18 AWG GN/YE, BN, BU
  • 4T-950: 3 x 18 AWG BU, BN, GN/YE, ITC/PLTC PVC
  • 4-Wire
  • 5.31T-840: 4 x 18 AWG WH, BK, RD, GN
  • 5.34-1727: 4 x 18 AWG WH, BK, BU, BN
  • 5.64T-1877: 5 x 22 AWG BN, WH, BU, BK, GY
  • 5-Wire
