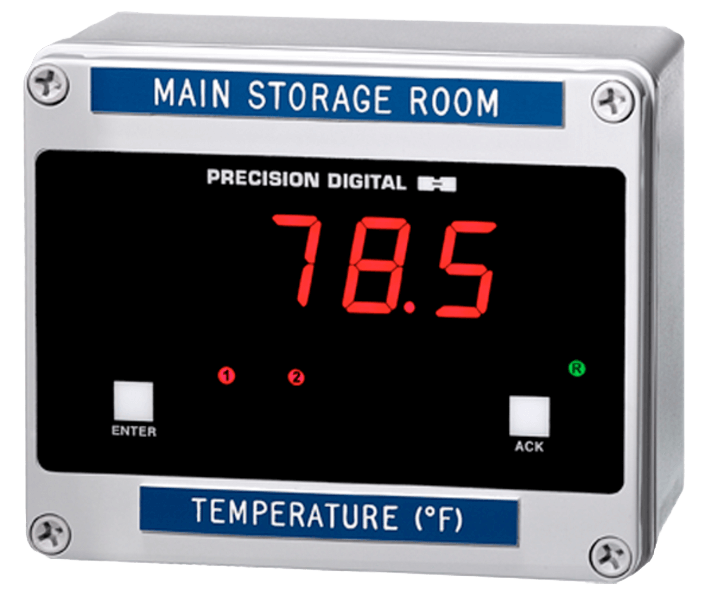

PD655 Process Meter

Brand: Precision Digital Corporation
The PD655 is a large display, analog input process meter with flow rate/totalizer and batch control capabilities housed in a rugged, impact-resistant, glass-filled, polycarbonate NEMA 4X enclosure.

Each accepts the common process signals such as 4-20 mA, 0-5 VDC, 1-5 VDC and 0-10 VDC and displays these signals in engineering units on a large, high efficiency, 4 1/2 digit LED display.

The meter also provide two isolated 24 V power supplies to drive both the input and output loops. Options include up to 4 relays for alarm or batch control and an isolated 4-20 mA transmitter output.
Features
• 4-20 mA, 1-5 V, 0-5 V, 0-10 V inputs
• 4½ digit + extra zero display for rate
• 6 digit display for total
• Programmable exponent for weirs & flumes
• Pump alternation control
• Two 24 VDc transmitter power supplies
• 200 ma transmitter power supply option
• 2 or 4 relays & 4-20 ma output options
• 115 Vac or 230 Vac power
• Operating temperature: -20 to 65°C
show more
The PD655 is a large display, analog input process meter with flow rate/totalizer and batch control capabilities housed in a rugged, impact-resistant, glass-filled, polycarbonate NEMA 4X enclosure.

Each accepts the common process signals such as 4-20 mA, 0-5 VDC, 1-5 VDC and 0-10 VDC and displays these signals in engineering units on a large, high efficiency, 4 1/2 digit LED display.

The meter also provide two isolated 24 V power supplies to drive both the input and output loops. Options include up to 4 relays for alarm or batch control and an isolated 4-20 mA transmitter output.
Features
• 4-20 mA, 1-5 V, 0-5 V, 0-10 V inputs
• 4½ digit + extra zero display for rate
• 6 digit display for total
• Programmable exponent for weirs & flumes
• Pump alternation control
• Two 24 VDc transmitter power supplies
• 200 ma transmitter power supply option
• 2 or 4 relays & 4-20 ma output options
• 115 Vac or 230 Vac power
• Operating temperature: -20 to 65°C

Specifications

Approvals & Certifications

  • UL

Conduit Connection

  • 1/2" Conduit

Deadband

  • 0 to 100% of Full Scale

Display

  • 1"
  • 4-1/2-Digits

Enclosure, Body Material

  • Impact-Resistant Glass-Filled Polycarbonate

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X

Humidity

  • 0 to 90% Non-Condensing

Input

  • 0-10 V
  • 0-20 mA
  • 0-5 V
  • 1-5 V
  • 4-20 mA

Input Impedance

  • > 300 KiloOhms
  • 100 ohms

Operating Temperature

  • -20° to 65° C (-4° to 149° F)

Operating Voltages

  • 50/60 Hz

Power Supply

  • 115 Vac
  • 22-28 Vdc
  • 230 Vac

Rating

  • 2 or 4 Form C (SPDT)

Storage Temperature

  • -40° to 85° C (-40° to 185° F)
