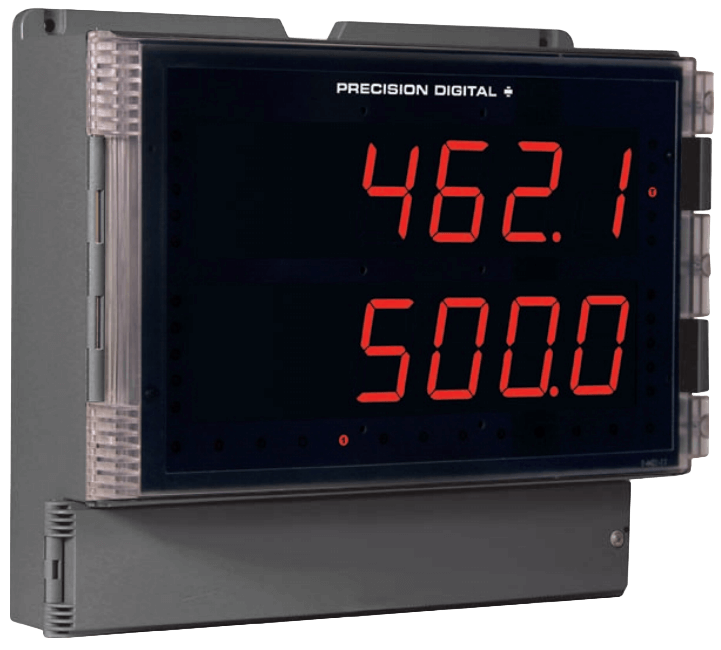

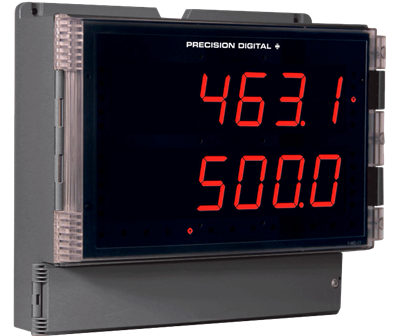

PD2-6210 Helios Analog Input Batch Controller

Brand: Precision Digital Corporation
Go with the Helios PD2-6210 when you need to do batch controlling using a 4-20 mA output flowmeter. The PD2-6210's huge display means operators don't have to be close up to the instrument to monitor the status of the batching application. Its NEMA 4X, IP65 rated field mountable enclosure allows the PD2-6210 to be mounted in wet, dusty, and dirty areas.

The PD2-6210 can handle single and multi-stage batching applications. Go with the Helios PD2-6310 when you need to do batch controlling using a pulse output flowmeter. The PD2-6310's huge display means operators don't have to be close up to the instrument to monitor the status of the batching application.

 Its NEMA 4X, IP65 rated field mountable enclosure allows the PD2-6310 to be mounted in wet, dusty, and dirty areas. The PD2-6310 can handle single and multi-stage batching applications.
Features
  • Large 1.80" digits
  • Dual-Line 6-digit display
  • Readable from up to 100 feet (30 meters) away
  • Superluminous sunlight readable display
  • Operating temperature range of -40° to 65° C (-40° to 150° F)
  • Universal 85 to 265 Vac, or 12/24 Vdc input power models
  • Isolated 24 Vdc transmitter power supply
  • On-Board digital input
  • 2 or 4 Relays + Isolated 4-20 mA output options
  • Onboard USB & RS-485 serial communications
  • Modbus RTU communication protocol standard
  • Program the meter from a PC with onboard USB and meterView Pro
show more
Images are representations only.
Go with the Helios PD2-6210 when you need to do batch controlling using a 4-20 mA output flowmeter. The PD2-6210's huge display means operators don't have to be close up to the instrument to monitor the status of the batching application. Its NEMA 4X, IP65 rated field mountable enclosure allows the PD2-6210 to be mounted in wet, dusty, and dirty areas.

The PD2-6210 can handle single and multi-stage batching applications. Go with the Helios PD2-6310 when you need to do batch controlling using a pulse output flowmeter. The PD2-6310's huge display means operators don't have to be close up to the instrument to monitor the status of the batching application.

 Its NEMA 4X, IP65 rated field mountable enclosure allows the PD2-6310 to be mounted in wet, dusty, and dirty areas. The PD2-6310 can handle single and multi-stage batching applications.
Features
  • Large 1.80" digits
  • Dual-Line 6-digit display
  • Readable from up to 100 feet (30 meters) away
  • Superluminous sunlight readable display
  • Operating temperature range of -40° to 65° C (-40° to 150° F)
  • Universal 85 to 265 Vac, or 12/24 Vdc input power models
  • Isolated 24 Vdc transmitter power supply
  • On-Board digital input
  • 2 or 4 Relays + Isolated 4-20 mA output options
  • Onboard USB & RS-485 serial communications
  • Modbus RTU communication protocol standard
  • Program the meter from a PC with onboard USB and meterView Pro
4 models matching criteria
PD2-6210-6H2
Power: 85-265 VAC, 90-265 VDC / Outputs: 2 Relays
Out of Stock
PD2-6210-6H7
Power: 85-265 VAC, 90-265 VDC / Outputs: 4 Relays & 4-20 mA Output
Out of Stock
PD2-6210-7H2
Power: 12-24 VDC/VAC / Outputs: 2 Relays
Out of Stock
PD2-6210-7H7
Power: 12-24 VDC/VAC / Outputs: 4 Relays & 4-20 mA Output
Out of Stock

Specifications

Display

  • Two lines with 1.8" (46 mm) high digits, red LEDs; 6 digits per line (-99999 to 999999), with lead zero blanking

Default Display Assignment

  • The upper display shows batch total. The lower display shows rate with alternating units, and can be switched to show grand total, batch count, or preset with the STOP key.

Custom Display Assignment

  • The upper and lower displays may be assigned to rate, total, grand total, batch count, preset, set points, units (lower display only), alternating R & T, R & GT, preset & rate, max & min, or a Modbus display register. Any rate/total/grand total display may be programmed to alternate with a custom unit or tag.

Alternating Display

  • Displays alternate every 10 seconds when display is selected or the batch is paused.

Display Intensity

  • Eight user selectable intensity levels

Display Update Rate

  • 5/second (200 ms)

Overrange

  • Display flashes 999999

Underrange

  • Display flashes -99999

Operating Methods

  • Three programmable front panel buttons (default START, BATCH, STOP), digital inputs, PC and MeterView Pro software, and Modbus registers

Programming Methods

  • Four SafeTouch through-glass buttons when cover is installed. Four internal pushbuttons when cover is removed.

F4 Digital Input Contacts

  • 3.3 VDC on contact. Connect normally open contacts across F4 to COM

F4 Digital Input Logic Levels

  • Logic High: 3 to 5 VDC
  • Logic Low: 0 to 1.25 VDC

Noise Filter

  • Programmable from 2 to 199 (0 will disable filter)

Filter Bypass

  • Programmable from 0.1 to 99.9% of calibrated span.

Recalibration

  • Recommended at least every 12 months

Max/Min Display

  • Max (Peak) / min (Valley) readings reached by the process are stored until reset by the user or until power is cycled

Password

  • Three programmable passwords restrict modification of programmed settings and two prevent resetting the totals

Non-Volatile Memory

  • All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost

Power Options

  • Powered over USB for configuration only
  • 12-24 VDC ± 10%, 15 W max
  • 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max

Isolated Transmitter Power Supply

  • Terminals P+ & P-: 24 VDC ± 10%. 12-24 VDC powered models selectable for 24, 10, or 5 VDC supply (internal P+/P- switch). 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply

Fuse

  • Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 controllers may share one 5 A fuse

Normal Rejection Mode

  • Greater than 60 dB at 50/60 Hz

Isolation

  • 4 kV input/output-to-power line. 500 V input-to-output or output-to-P+ supply

Overvoltage Category

  • Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

  • T6 Class Operating Temperature Range Ta = -40 to 60° C
  • T5 Class Operating Temperature Range Ta = -40 to 65° C

Max Power Dissipation

  • Maximum power dissipation limited to 15.1 W

Connections

  • Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters

Enclosure

  • UL Type 4X, IP65 rated. Polycarbonate & glass blended plastic case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, black nylon threaded hole plugs with backing nuts

Wall Mounting

  • Four (4) mounting holes provided for mounting meter to wall. Pipe Mounting: Optional pipe mounting kit (PDA6260) allows for pipe mounting. Sold separately

Dimensions

  • 10.63" x 12.59" x 4.77" (270 mm x 319.7 mm x 121.2 mm) (H x W x D)

Weight

  • 6.10 lbs (2.76 kg)

UL File Number

  • UL & C-UL Listed. E160849; 508 Industrial Control Equipment.

Warranty

  • 3 years parts & labor

USB Connection

  • Compatibility: USB 2.0 Standard, Compliant
  • Connector Type: Micro-B receptacle
  • Cable: USB A Male to Micro-B Cable
  • Driver: Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows 7 32/64-Bit, Windows 10 32/64-Bit
  • Power: USB Port
