PDA2700 Series Enclosure

Brand: Precision Digital Corporation
Request Information
Favorite

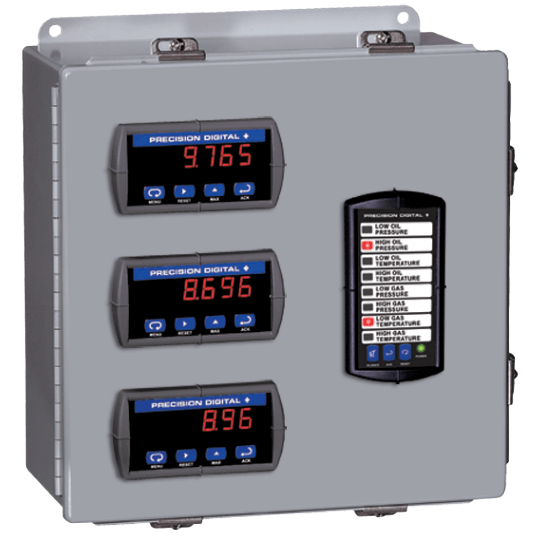

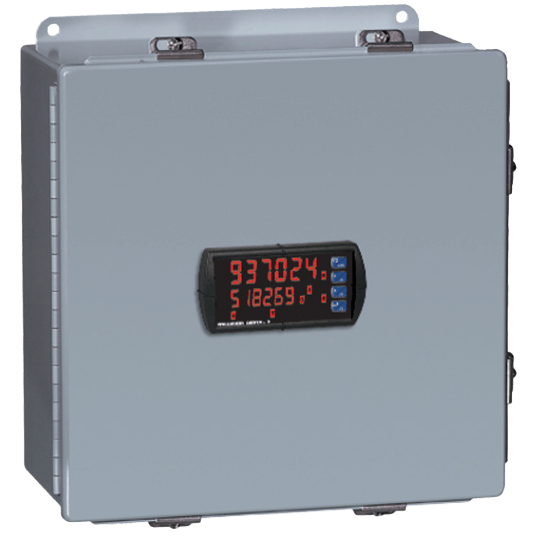

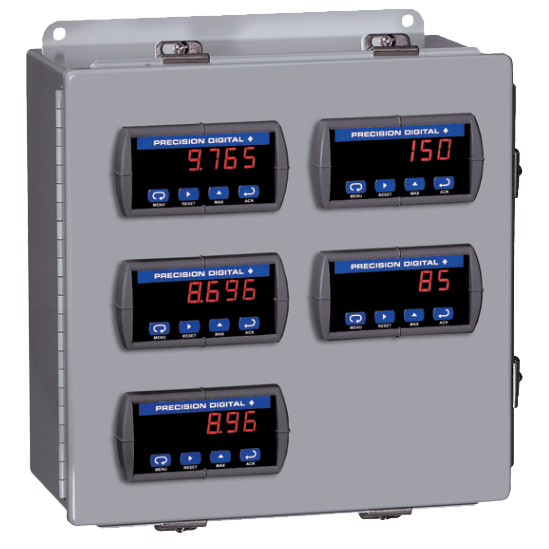

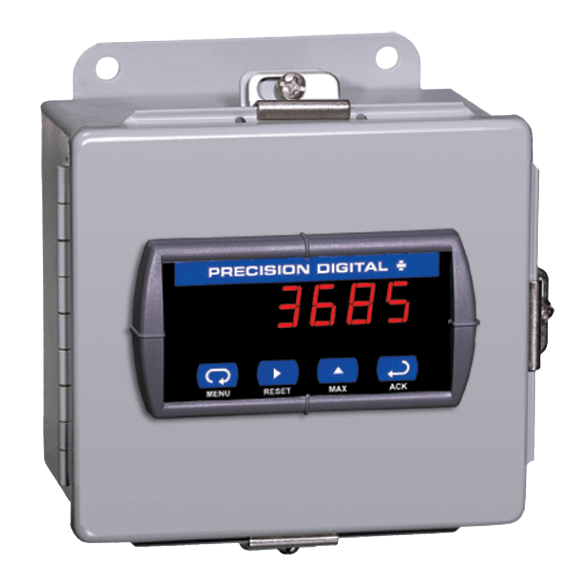

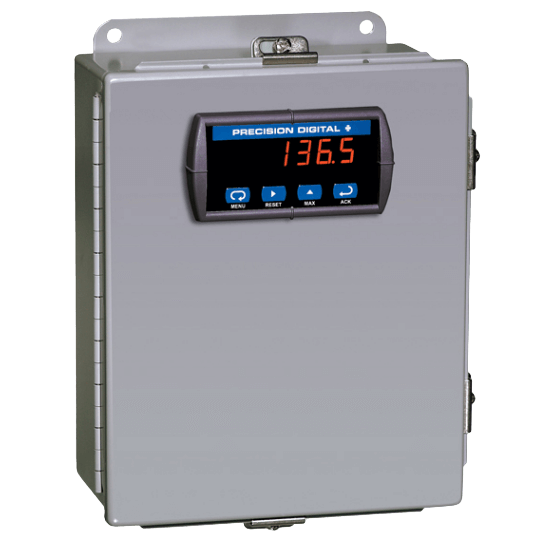

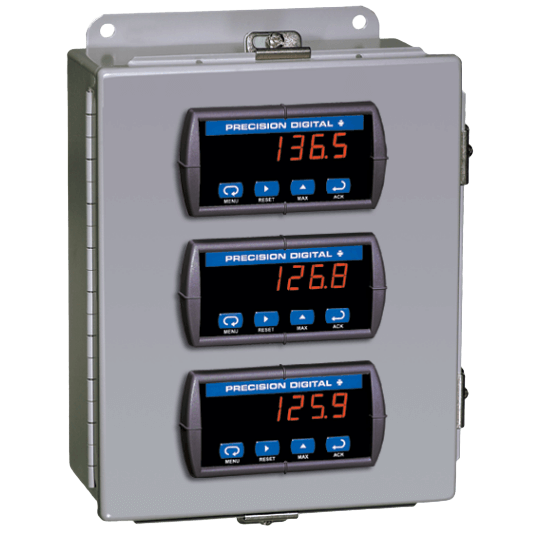

The PDA2700 series of steel NEMA 4X enclosures for 1/8 DIN Digital Panel Meters provide a convenient way to mount up to six Precision Digital meters to walls and other vertical structures.

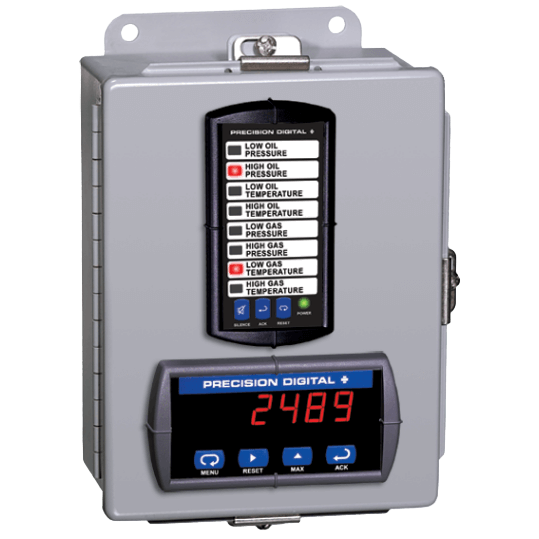

Many of these enclosures also have room for additional devices like a light / horn and a 24 V transmitter power supply.

These enclosures come pre-cut with horizontal or vertical 1/8 DIN cutouts or they can be ordered with no cutouts. The meters are mounted in the door of the enclosure thus allowing for programming and operation of the meter.

No additional mounting hardware other than screws is needed. The door is hinged and secured with latches. Enclosures, meters and accessories are ordered and packaged separately.
Features
  • House up to 6 Meters
  • 16-Gauge Type 304 Steel
  • 14-Gauge Type 304 Steel
  • 1/8 DIN Cutout(s) Pre-Cut
  • Horizontal, Vertical, or No Cutouts
  • NEMA 4, 12 and 13
  • Cover Secured with Screwed Latches
  • Hinged Door
  • Meter Mounted in Cover
  • Sub-Panels Available
  • Mounting Holes Integral to Enclosure
  • PDA1024-01 24 VDC Power Supply Available
  • UL Listed, CSA Certified
  • Light / Horn & Reset Button
show more
The PDA2700 series of steel NEMA 4X enclosures for 1/8 DIN Digital Panel Meters provide a convenient way to mount up to six Precision Digital meters to walls and other vertical structures.

Many of these enclosures also have room for additional devices like a light / horn and a 24 V transmitter power supply.

These enclosures come pre-cut with horizontal or vertical 1/8 DIN cutouts or they can be ordered with no cutouts. The meters are mounted in the door of the enclosure thus allowing for programming and operation of the meter.

No additional mounting hardware other than screws is needed. The door is hinged and secured with latches. Enclosures, meters and accessories are ordered and packaged separately.
Features
  • House up to 6 Meters
  • 16-Gauge Type 304 Steel
  • 14-Gauge Type 304 Steel
  • 1/8 DIN Cutout(s) Pre-Cut
  • Horizontal, Vertical, or No Cutouts
  • NEMA 4, 12 and 13
  • Cover Secured with Screwed Latches
  • Hinged Door
  • Meter Mounted in Cover
  • Sub-Panels Available
  • Mounting Holes Integral to Enclosure
  • PDA1024-01 24 VDC Power Supply Available
  • UL Listed, CSA Certified
  • Light / Horn & Reset Button
Close
Close

Specifications

Brand

Approvals & Certifications

  • CSA
  • UL

Enclosure, Body Material

  • PDA2701: 16-gauge steel
  • PDA2702-2706: 14-gauge steel

Environmental Protection

  • IP52
  • IP54
  • IP66
  • NEMA 12
  • NEMA 13
  • NEMA 4

Color

  • Gray

Meters

  • Houses up to 6 meters

Meter Mounting Method

  • Through cover

Cover Mounting Method

  • Hinge / latch

Warranty

  • 1 year
