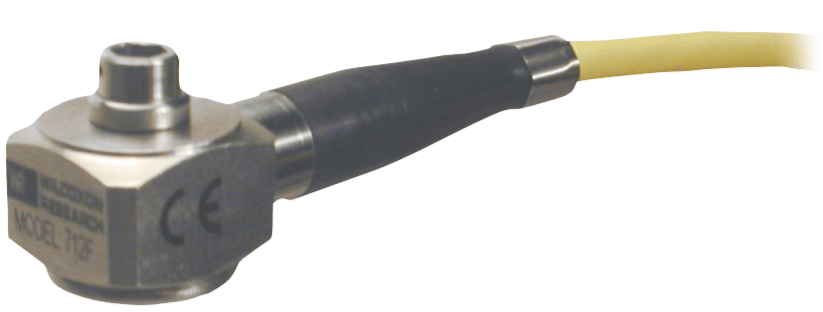

Model 712F-M4 High Frequency, Integral Cable Accelerometer

Brand: Wilcoxon Sensing Technologies
Request a Quote
Favorite
Side exit, high frequency, 16' J9T2A integral cable, case isolated, 100 mV/g, M4 mounting thread.
Features
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection
  • Reverse wiring protection
  • EMI/RFI protection
    • show more
    Images are representations only.
    Side exit, high frequency, 16' J9T2A integral cable, case isolated, 100 mV/g, M4 mounting thread.
    Features
  • Corrosion resistant
  • Hermetically sealed
  • Ground isolated
  • ESD protection
  • Reverse wiring protection
  • EMI/RFI protection
    • Close

    Specifications

    Brand

    Approvals & Certifications

    • CE

    Circuit Protection

    • ESD Protection
    • Reverse Wiring Protection

    Electrical Connectors

    • Integral Cabling (J9T2A, 16 feet, Blunt Cut)

    Enclosure, Body Material

    • 316L Stainless Steel

    Environmental Protection

    • Corrosion-Proof

    Frequency

    • Frequency Response (± 10%): 6 to 20,000 Hz
    • Frequency Response (± 3 dB): 3 to 25,000 Hz
    • Frequency Response (± 5%): 9 to 15,000 Hz
    • Resonance Frequency, Mounted: > 45 kHz

    Mounting

    • M4 Captive Screw with 0.047" Diameter Safety Wire Hole

    Noise

    • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 1,000 µg
    • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 25 µg/√Hz
    • Electrical Noise, Equivalent G, Nominal (Spectral: 100 Hz): 10 µg/√Hz
    • Electrical Noise, Equivalent G, Nominal (Spectral: 100 Hz): 8 µg/√Hz

    Non-Linearity

    • Amplitude Non-Linearity: 1%

    Output Impedence

    • Maximum

    Power Requirement

    • 18-30 Vdc
    • Current Regulating Diode: 2-10 mA

    Range

    • Acceleration Range: 60 G Peak

    RFI/EMI Protection

    • Yes

    Seal Type

    • Hermetic

    Sensitivity

    • Base Strain Sensitivity, Maximum
    • Sensitivity, ± 10%, 25° C (77° F): 100 mV/g
    • Transverse Sensitivity, Maximum

    Shock

    • Shock Limit, Maximum

    Temperature Range

    • -50° to 120° C (-58° to 248° F)

    Vibration

    • Vibration Limit: ± 1,000 G

    Voltage

    • Bias Output Voltage, Nominal: 12 Vdc
    Close

    Review this product and let us know your experiences

    Write a Review
    Close

    Similar Products

    Model 712F High Frequency, Integral Cable Accelerometer
    Model 712F High Frequency, Integral Cable Accelerometer
    Wilcoxon Sensing Technologies

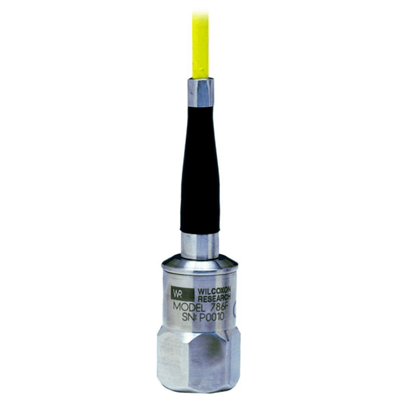

    Model 786F General Purpose Integral Cable Accelerometer
    Model 786F General Purpose Integral Cable Accelerometer
    Wilcoxon Sensing Technologies

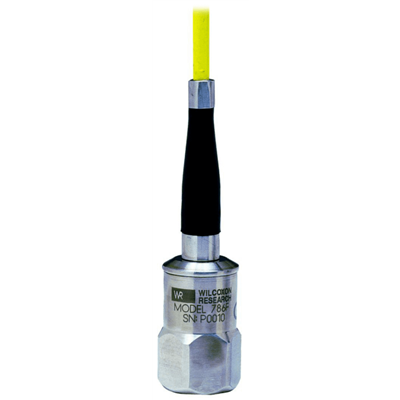

    Model 786F-D2 Class I Division 2 Certified Integral Cable Accelerometer
    Model 786F-D2 Class I Division 2 Certified Integral Cable Accelerometer
    Wilcoxon Sensing Technologies

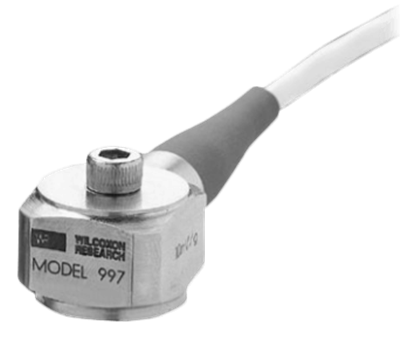

    Model 997 Series High Frequency Integral Cable Accelerometer
    Model 997 Series High Frequency Integral Cable Accelerometer
    Wilcoxon Sensing Technologies

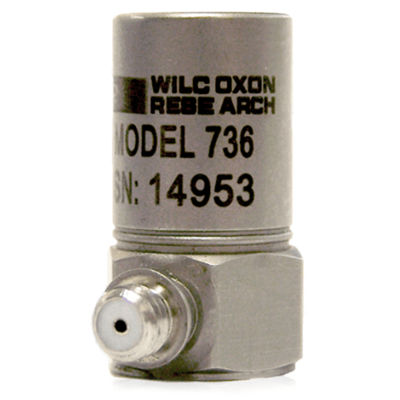

    Model 736/736T Compact High Sensitivity High Frequency Accelerometer
    Model 736/736T Compact High Sensitivity High Frequency Accelerometer
    Wilcoxon Sensing Technologies

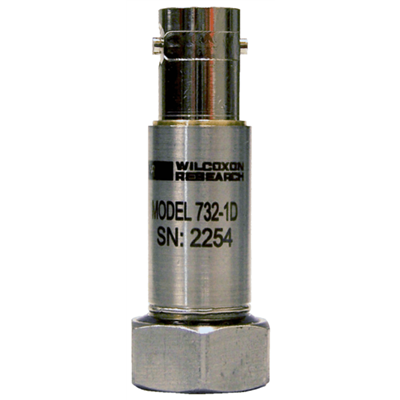

    Model 732-1D High Frequency Accelerometer
    Model 732-1D High Frequency Accelerometer
    Wilcoxon Sensing Technologies

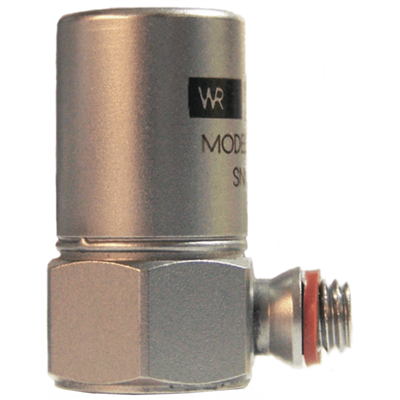

    Model 732A/732AT High Frequency Accelerometer
