Description
The ConsoliDator PD900 is an easy-to-use, multi-channel controller that accepts up to eight (8) 4-20 mA inputs, four (4) flowmeter pulse inputs, and up to eight (8) digital inputs, then displays them on a large, backlit, graphical LCD screen.
It is available in four models:
- PD940 (4 input, wall mount),
- PD941 (4 input, panel mount),

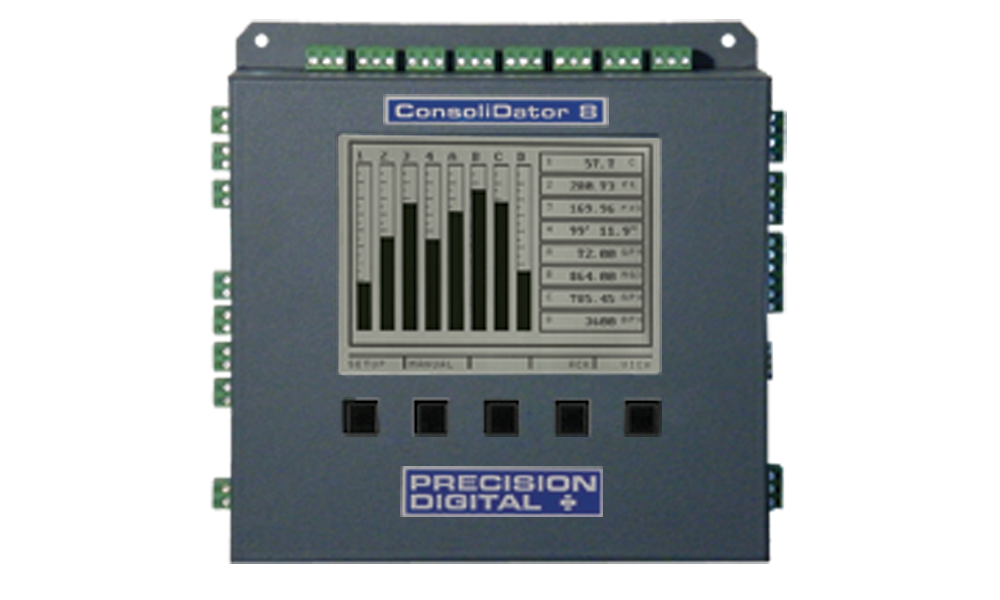

- PD980 (8 input, wall mount),

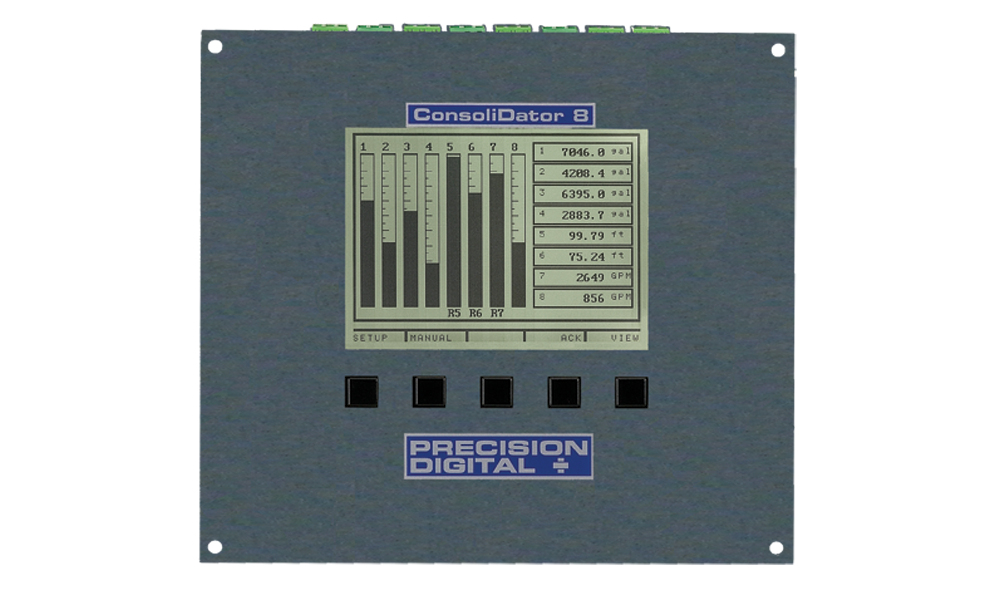

- PD981 (8 input, panel mount).
The ConsoliDator is suitable for all safe area monitoring and controlling applications such as flow, level, pressure, temperature, and vibration.
The availability of Modbus RTU serial communications makes it ideal for SCADA applications.
Features- Easy to Read Backlit LCD
- Readable in Direct Sunlight
- Bar graphs & Numeric Screens
- Easy to Set up & Configure
- Set up with Front Panel Keys
- Intuitive Menus
- Detailed Individual Screens
- Input Simulation Feature
- RS-232 Modbus® RTU
- Direct Modbus PV Inputs
- Power from AC or DC
- Wall Mount or Panel Mount
- 32-Point Linearization
- Sum & Difference Functions
- Free Programming & Data Logging Software
- A Good Match for Wireless
Inventory
Displaying prices & availability for United States in USD. Change location or currency
PRECISION DIGITAL Consolidator 4 Multi-Channel Controller, 4-20 mA, 4 Input/4 Output, Wall Mount
View More
- ConsoliDator 4 Multi-Channel Controller
- Display:
- Backlit LCD
- 4.75" x 3.50" (121 mm x 89 mm)
- Performance:
- Sum and Difference Functions
- 32-Point Linearization
- Programming: Free Programming & Data Logging Software
- Communications: RS-232 Modbus RTU
- Inputs:
- Analog: Eight 4-20 mA
- Pulse: Four 100 mVp-p to 15 Vp-p; 1 Hz to 10 kHz
- Digital: Four
- Modbus PV: Up to Four
- Outputs: Two 4-20 mA Analog
- Power: Power from AC or DC
- Operating Temperature: 0°C to +50°C (+32°F to +122°F)
- Enclosure Materials: Powder-coated steel
- Mounting: Panel
- Environmental Protection: NEMA 1
- Agency Approvals: UL
2 - 4 weeks
$1,712.08USD
$19.20 Shipping
PRECISION DIGITAL Consolidator 4 Multi-Channel Controller, 4-20 mA, 4 Input/4 Output, Wall Mount
View More
- Product Type: Multi-Channel Controller
- Input: Current (4-20 mA), Pulse, Multiple Inputs
- Output Options: (9) Relays & (2) 4-20 mA Output
- Display Category: LCD, Sunlight Readable, Bargraph
- Mounting Style: Wall Mounted
- Number of Inputs: (8) 4-20 mA, (4) Pulse
- Serial Comms: RS-232 Modbus
- Backlight: Standard
- Product Series: ConsoliDator
- Product Family:
- Product Application: Level, Pressure, Flow Rate Totalizer, Process, Pump Control
1 - 3 weeks
$2,078.27USD
$19.20 Shipping
PRECISION DIGITAL ConsoliDator+ Multivariable Controller, 4-20mA, RS-485 Modbus RTU, Panel Mount
View More
- Product Type: ConsoliDator+ Multivariable Controller
- Inputs: (4) 4-20 mA
- Display: Color (320 x 240) 5.7" (145 mm)
- Backlight: Standard
- Power: 90-264 VAC, 113-370 VDC, or 24 VDC
- Outputs: (5) Analog Outputs, (10) Relays, (4) Digital Outputs
- Transmitter Power: Isolated 24 VDC @ 200 mA/input (max 1,600 mA)
- Digital Inputs: 5
- Serial Communication: RS-485 Modbus RTU
- Mounting Style: Panel Mount
- Approvals: None
- Warranty: 3 Years
2 - 4 weeks
$3,466.97USD
$19.20 Shipping
Specifications
Specifications
Enclosure, Body Material
- Steel
Environmental Protection
- NEMA 4X
- NEMA 1
- IP66
- IP10
Power Supply
- 90-264 Vac
- 8-30 Vdc
Display
- LCD Display
- 4.75” x 3.50”
Operating Temperature
- 0° to 50° C (32° to 122° F)
K-Factor
- May be Programmed from 0.00001 to 999,999 Pulses/Unit
Update Time
- 2 seconds
Humidity
- 0 to 90 % Non-Condensing
Input
- 4-20 mA
Approvals & Certifications
- UL
Communication
- RS-232
- Modbus
Mounting
- Wall Mounted
- Panel Mounted
Storage Temperature
- -40° to 60° C (-40° to 140° F)
