PD6200 ProVu Analog Input Flow Rate/Totalizer

Brand: Precision Digital Corporation

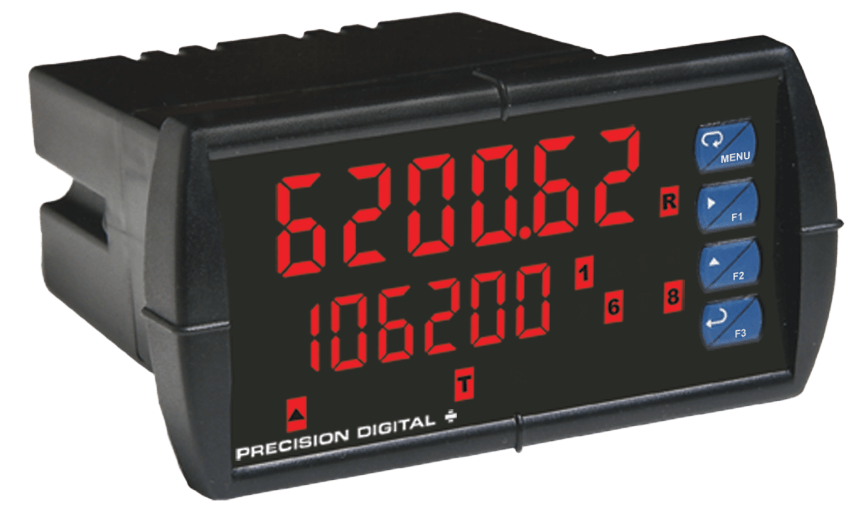

The PD6200 is a member of the ProVu series of 1/8 DIN digital panel meters that is specifically designed to display flow rate and total from an analog output (4-20 mA, 0-5 V, 1-5 V, etc.) flowmeter.

It displays that signal on a dual-line, 6-digit display that is available with optional Sunbright® sunlight readable LEDs.

Flow rate is typically displayed on the upper line and the cumulative total is displayed on the lower line.

The total overflow feature allows up to a 9-digit total and grand total to be displayed. Like all ProVu meters, the PD6200 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options.

ProVu meters can be equipped with up to four internal relays, a 4-20 mA output, and Modbus® RTU serial communications.

The PD6200 includes a 24 VDC power supply to drive the flowmeter and can be programmed via the front panel pushbuttons or free MeterView® Pro software.
Features
  • 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
  • Isolated 24 VDC @ 200 mA Transmitter Power Supply
  • Open Channel Flow with Programmable Exponent
  • Square Root Extraction
  • 32-Point Linearization
  • 5, 10 or 24 VDC Flowmeter Power Supply
  • Internal Scaling or External Calibration
  • Optional SunBright Display Models for Outdoor Applications
  • Onboard USB and MeterView® Pro Programming Software
show more
The PD6200 is a member of the ProVu series of 1/8 DIN digital panel meters that is specifically designed to display flow rate and total from an analog output (4-20 mA, 0-5 V, 1-5 V, etc.) flowmeter.

It displays that signal on a dual-line, 6-digit display that is available with optional Sunbright® sunlight readable LEDs.

Flow rate is typically displayed on the upper line and the cumulative total is displayed on the lower line.

The total overflow feature allows up to a 9-digit total and grand total to be displayed. Like all ProVu meters, the PD6200 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options.

ProVu meters can be equipped with up to four internal relays, a 4-20 mA output, and Modbus® RTU serial communications.

The PD6200 includes a 24 VDC power supply to drive the flowmeter and can be programmed via the front panel pushbuttons or free MeterView® Pro software.
Features
  • 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
  • Isolated 24 VDC @ 200 mA Transmitter Power Supply
  • Open Channel Flow with Programmable Exponent
  • Square Root Extraction
  • 32-Point Linearization
  • 5, 10 or 24 VDC Flowmeter Power Supply
  • Internal Scaling or External Calibration
  • Optional SunBright Display Models for Outdoor Applications
  • Onboard USB and MeterView® Pro Programming Software
PD6200-6R0
PRECISION DIGITAL ProVu Process Meter, 1/8 DIN Flow Rate, 85-265 VAC, No Options View More
  • Product Type: 1/8 DIN Flow Rate/Totalizer Digital Panel Meter
  • Inputs: Current (4-20 mA), Voltage (0-10 V)
  • Output Options: None
  • Power: 85-265 VAC, 90-265 VDC
  • Transmitter Power: 24 VDC @ 200 mA
  • Display Category: LED, Dual Line
  • Display: 0.6" High, Dual Line, 6 Digits, Red LED
  • Approvals: CE, UL/C-UL
  • Warranty: 3 years
1 - 3 weeks
$381.64 USD
$15.51 Shipping
PD6200-6R2
PRECISION DIGITAL ProVu Process Meter, 1/8 DIN Flow Rate, 85-265 VAC, 2 Relays View More
  • 1/8 DIN Flow Rate/Totalizer Digital Panel Meter
  • Display:
    • Dual Line, 6-Digit, red LEDs
    • 0.6" high
  • Inputs:
    • Current (4-20mA), Voltage (0-10V)
  • Outputs: 2 Relays
  • Power: 85-265 VAC 90-265 VDC
  • Transmitter Power:
    • 24 VDC @ 200mA
  • Serial Connections:
    • Requires external adaptor
  • DIN Size:
    • 1/8 DIN (Horizontal)
  • Agency Approvals:
    • CE
    • c-UL/C-UL
2 - 4 weeks
$433.61 USD
$15.51 Shipping

Specifications

Approvals & Certifications

  • UL

Communication

  • Modbus

Deadband

  • 0 to 100% of Span

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Humidity

  • 0 to 90% Non-Condensing

Isolation

  • 4 kV Input/Output-to-Power-Line
  • 500 V Input to Output or Output to P+ Supply

Mounting

  • 1/8" DIN

Operating Temperature

  • -40° to 65° C (-40° to 150° F)

Operating Voltages

  • 50/60 Hz

Output

  • 4-20 mA

Power

  • 20 W

Power Supply

  • 85-265 Vac
  • 90-265 Vdc

Relay Output

  • 2 or 4 SPDT
  • 4 SPST

Supply Voltage

  • 90-265 Vdc

Torque

  • 5 In/Lbs
