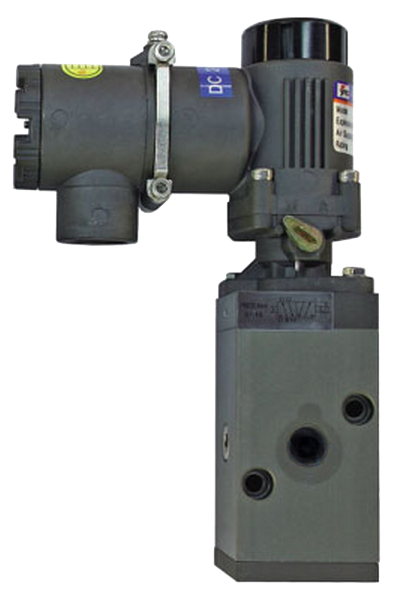

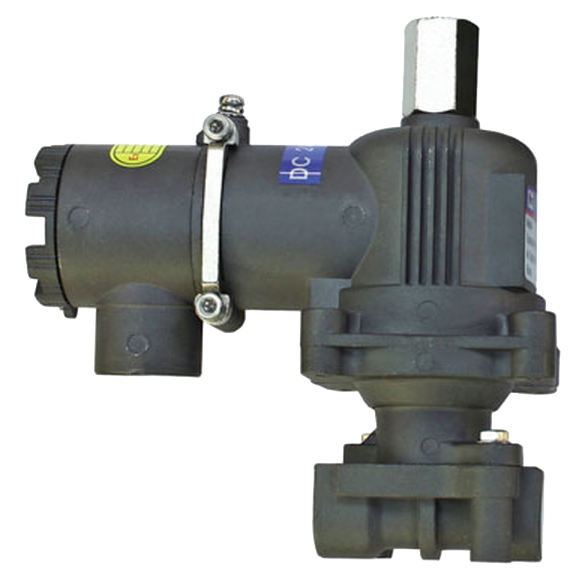

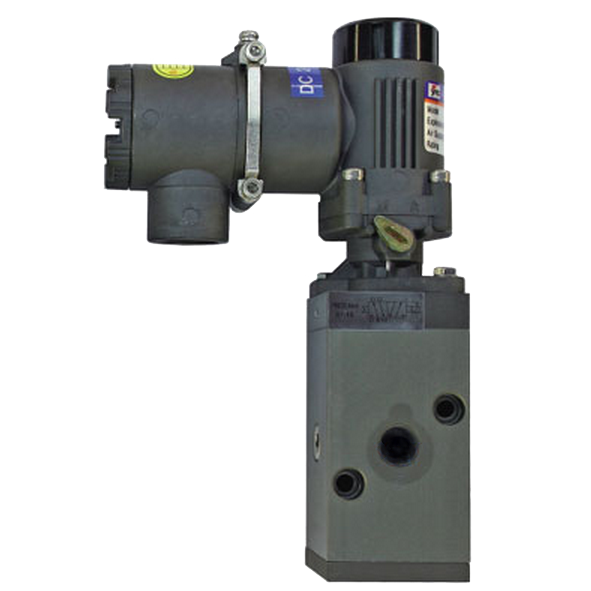

YT-700 Solenoid Valve

Brand: Young Tech Co., Ltd
The YT-700 Series is an explosion-proof, 3-way or 4-way solenoid valve which opens and shuts by electrical signal of AC or DC.

Features
  • O-Ring Shapes: Less lubrication required
  • Balance spool type: No backing spring required
  • Interchangable AC and DC coils
  • Manual override switch
show more
The YT-700 Series is an explosion-proof, 3-way or 4-way solenoid valve which opens and shuts by electrical signal of AC or DC.

Features
  • O-Ring Shapes: Less lubrication required
  • Balance spool type: No backing spring required
  • Interchangable AC and DC coils
  • Manual override switch

Specifications

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Approvals & Certifications

  • CE
  • KC
  • NEPSI

Flow Capacity

  • 0.084 Cv at 0.8 MPa (3-Way)
  • 0.2 Cv at 0.4 MPa (3-Way)
  • 0.75 Cv (4-Way)

Frequency

  • 50/60 Hz

NPT Connection

  • 1/4" NPT Female

Operating Voltages

  • 110 Vac
  • 220 Vac

PT/PF/PS (JIS) Connection

  • 1/4" PT Female

Supply Pressure - Maximum

  • 3-Way, MPa: 0 to 0.4 (0 to 58 psi, 0 to 400 kPa, 0 to 4 bar)
  • 3-Way, MPa: 0 to 0.7 (0 to 101.5 psi, 0 to 700 kPa, 0 to 7 bar)
  • 4-Way, MPa: .1 to 1 (14.5 to 145 psi, 100 to 1000 kPa, 1 to 10 bar)

Supply Voltage

  • 24 Vdc
