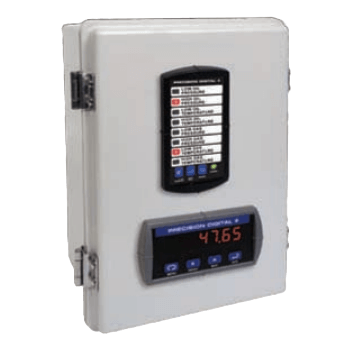

PDA2300 Series NEMA 4X Plastic Enclosures

Brand: Precision Digital Corporation
Request Information
Favorite

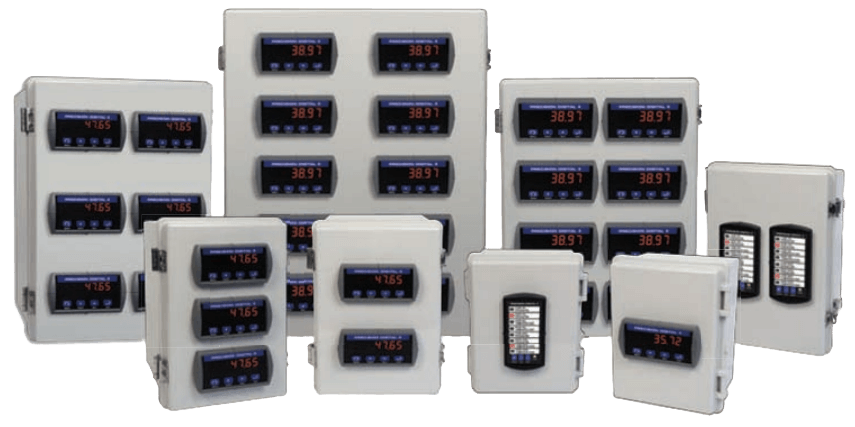

The PDA2300 series of economical plastic NEMA 4X enclosures for meters and controllers provides a convenient way to mount up to ten Precision Digital meters / controllers to walls and other vertical structures.

Many of these enclosures also have room for additional devices like a light / horn and a 24 V transmitter power supply.

Sub-panels are available to mount additional devices to the base of the enclosure.

These enclosures come pre-cut with horizontal or vertical 1/4, 1/8, or 1/16 DIN cutouts, or they can be ordered with no cutouts.

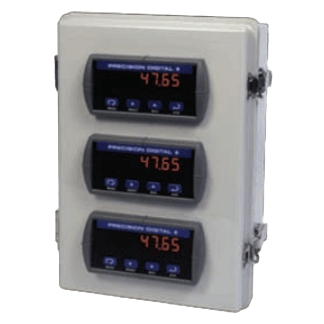

The instruments are mounted in the door of the enclosure thus allowing for programming and operation of the instrument.

Mounting hardware is provided.

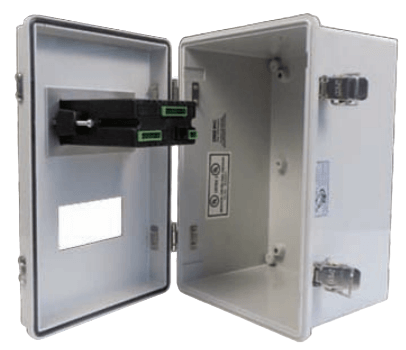

The door is hinged and secured with stainless steel latches.

Enclosures, meters/controllers and accessories are ordered and packaged separately.
Features
  • House up to 10 Meters
  • Plastic
  • Horizontal, Vertical or No Cutouts
  • 1/8 DIN Cutout(s) Pre-Cut
  • NEMA 4X
  • Hinged Door
  • Stainless Steel Cover Latches
  • Meter Mounted in Cover
  • Sub-Panels Available
  • Mounting Hardware Provided
  • PDA1024-01 24 VDC Power Supply Available
  • UL Listed
  • Light / Horn & Reset Button
show more
The PDA2300 series of economical plastic NEMA 4X enclosures for meters and controllers provides a convenient way to mount up to ten Precision Digital meters / controllers to walls and other vertical structures.

Many of these enclosures also have room for additional devices like a light / horn and a 24 V transmitter power supply.

Sub-panels are available to mount additional devices to the base of the enclosure.

These enclosures come pre-cut with horizontal or vertical 1/4, 1/8, or 1/16 DIN cutouts, or they can be ordered with no cutouts.

The instruments are mounted in the door of the enclosure thus allowing for programming and operation of the instrument.

Mounting hardware is provided.

The door is hinged and secured with stainless steel latches.

Enclosures, meters/controllers and accessories are ordered and packaged separately.
Features
  • House up to 10 Meters
  • Plastic
  • Horizontal, Vertical or No Cutouts
  • 1/8 DIN Cutout(s) Pre-Cut
  • NEMA 4X
  • Hinged Door
  • Stainless Steel Cover Latches
  • Meter Mounted in Cover
  • Sub-Panels Available
  • Mounting Hardware Provided
  • PDA1024-01 24 VDC Power Supply Available
  • UL Listed
  • Light / Horn & Reset Button
Close
Close

Specifications

Brand

Approvals & Certifications

  • C-UL
  • UL

Enclosure, Body Material

  • Thermoplastic Polyester

Environmental Protection

  • IP66
  • NEMA 4X

Material

  • Thermoplastic Polyester

Color

  • Gray

Meters

  • Houses up to 10 metres

Meter Mounting Method

  • Through cover

Cover Mounting Method

  • Hinge / Hasp

Operating Temperature

  • -40° to 120° C

Warranty

  • 1 Year
