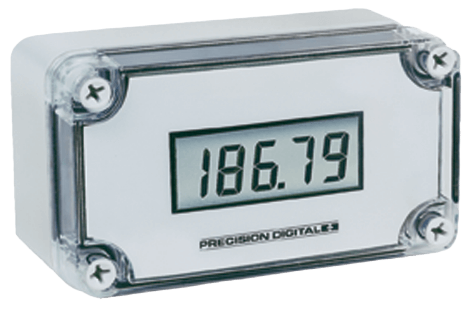

PD675 Loop-Powered NEMA 4X Nonincendive Digital Meter

Brand: Precision Digital Corporation
The PD675 meter is a 4 1/2 digit, loop-powered meter enclosed in an impact-resistant polycarbonate body, which can display numbers up to 19,999 with 1 count resolution.

Options include open collector high-level alarm output and square root extraction. The PD675 has a wide -20 to 65°C operating temperature range, is FM approved and CSA certified, and is approved Nonincendive.

Calibration is a quick two-step process involving the adjustment of only two non-interacting potentiometers.
Features
  • 4½ Digit 0.7" (17.8 mm) LCD, 19999
  • FM Approved & CSA Certified
  • Impact-resistant polycarbonate body
  • Operates from -20 to 65°C
  • Easy to Calibrate
show more
Images are representations only.
The PD675 meter is a 4 1/2 digit, loop-powered meter enclosed in an impact-resistant polycarbonate body, which can display numbers up to 19,999 with 1 count resolution.

Options include open collector high-level alarm output and square root extraction. The PD675 has a wide -20 to 65°C operating temperature range, is FM approved and CSA certified, and is approved Nonincendive.

Calibration is a quick two-step process involving the adjustment of only two non-interacting potentiometers.
Features
  • 4½ Digit 0.7" (17.8 mm) LCD, 19999
  • FM Approved & CSA Certified
  • Impact-resistant polycarbonate body
  • Operates from -20 to 65°C
  • Easy to Calibrate

PD675

Model

Specifications

Accuracy

  • ± 0.05%

Approvals & Certifications

  • CSA
  • FM

Display

  • 4-1/2-Digits

Enclosure, Body Material

  • Impact-Resistant PolyCarbonate Body

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X

Humidity

  • 0 to 90% Non-Condensing

Input

  • 4-20 mA at 24 Vdc, Maximum

Operating Temperature

  • -20° to 65° C (-4° to 149° F)

Storage Temperature

  • -40° to 80° C (-40° to 176° F)

Update Time

  • 2.5 seconds

Voltage Drop

  • 5.2 Vdc at 20 mA
