Helios PD2-6080 Modbus RTU Scanner

Brand: Precision Digital Corporation
Go with the Helios PD2-6080 when you have multiple, (up to 16), Modbus registers you want to display on a single large display meter. The PD2-6080 can also accept two 4-20 mA signals.

The PD2-6080 can be programmed as a Modbus RTU Master, Slave or Snooper allowing it to work in just about any Modbus application. Typically, the upper line displays the PV and the lower line displays the tag.
Features
  • Large 1.80" digits
  • Dual-line 6-digit display
  • Readable from up to 100 feet (30 meters) away
  • Superluminous sunlight readable display
  • NEMA 4X, IP65 rated field mountable enclosure
  • Operating temperature range of -40° to 65° C (-40° to 150° F)
  • Modbus RTU master, slave, or snooper mode
  • Poll and display up to 16 process variables
  • Addition, difference, average, multiplication, division, minimum, maximum, weighted average, ratio, concentration, & more
  • Universal 85 to 265 Vac, or 12 to 24 Vdc input power models
  • 2 or 4 relays + isolated 4-20 mA output options
  • Onboard USB & RS-485 serial communication options
  • Program the meter from a PC with onboard USB and scanview
show more

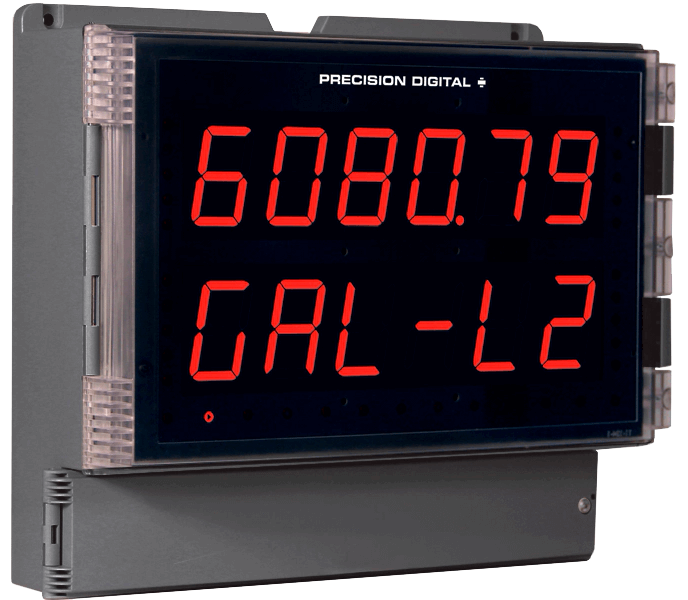

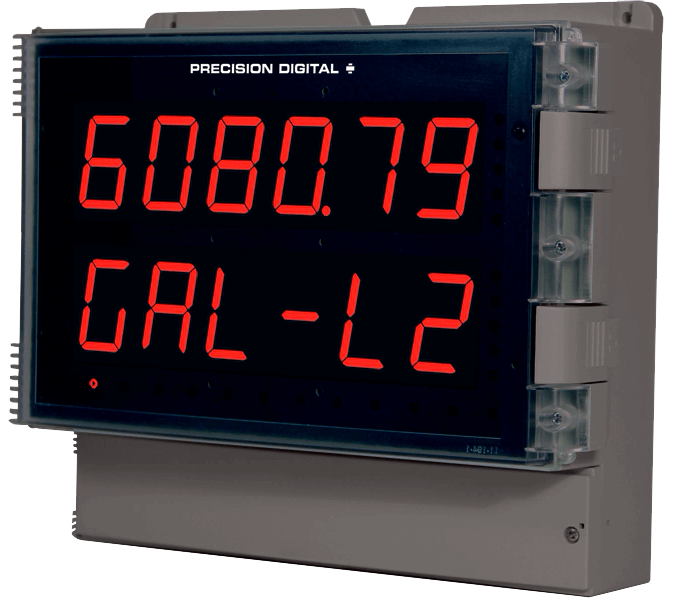

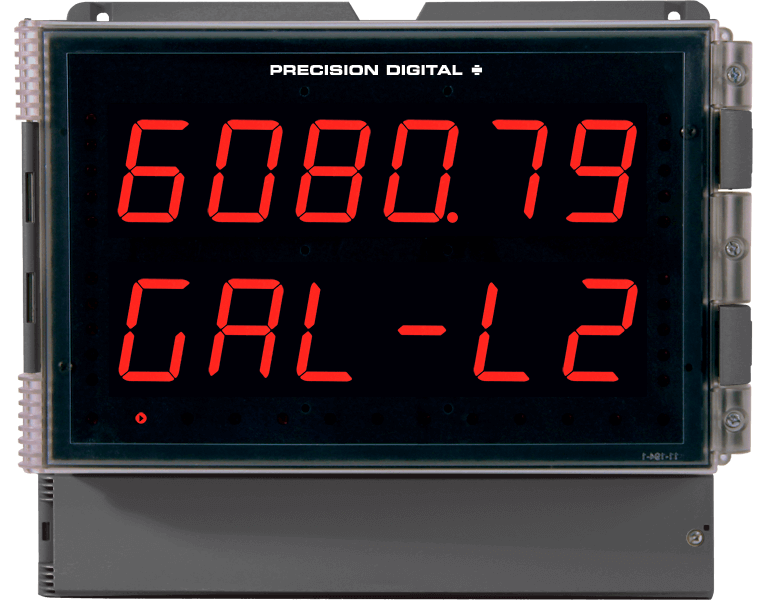

Images are representations only.
Go with the Helios PD2-6080 when you have multiple, (up to 16), Modbus registers you want to display on a single large display meter. The PD2-6080 can also accept two 4-20 mA signals.

The PD2-6080 can be programmed as a Modbus RTU Master, Slave or Snooper allowing it to work in just about any Modbus application. Typically, the upper line displays the PV and the lower line displays the tag.
Features
  • Large 1.80" digits
  • Dual-line 6-digit display
  • Readable from up to 100 feet (30 meters) away
  • Superluminous sunlight readable display
  • NEMA 4X, IP65 rated field mountable enclosure
  • Operating temperature range of -40° to 65° C (-40° to 150° F)
  • Modbus RTU master, slave, or snooper mode
  • Poll and display up to 16 process variables
  • Addition, difference, average, multiplication, division, minimum, maximum, weighted average, ratio, concentration, & more
  • Universal 85 to 265 Vac, or 12 to 24 Vdc input power models
  • 2 or 4 relays + isolated 4-20 mA output options
  • Onboard USB & RS-485 serial communication options
  • Program the meter from a PC with onboard USB and scanview
PD2-6080-7H0
PRECISION DIGITAL Helios Modbus Scanner with Dual Analog Inputs, 12-24 VDC, NEMA 4X
1 - 3 weeks
$1,682.55USD
$8.22 Shipping

Specifications

Input/Output

  • Modbus RTU over RS-485, Two analog inputs (4-20 mA, ±10 V)

Display

  • Two lines with 1.8" (46 mm) high digits, red LEDs; 6 digits per line (-99999 to 999999), with lead zero blanking

Display Intensity

  • Eight user selectable intensity levels

Display Update Rate

  • 5/second (200 ms)

Overrange

  • Display flashes 999999

Underrange

  • Display flashes -99999

Programming Methods

  • Four programming buttons, digital inputs, PC and ScanView software, or Modbus registers

Max/Min Display

  • Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off

Password restrict modifications

  • Pass 2: Allows use of function keys, digital inputs and editing set/reset points
  • Pass 3: Restricts all programming, function keys, and digital inputs
  • Pass 1: Allows use of function keys and digital inputs

Power Options

  • 12-24 VDC ± 10%, 15 W max
  • 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
  • Powered over USB for configuration only

Isolated Transmitter Power Supply

  • Terminals P+ & P-: 24 VDC ± 10%. 12-24 VDC powered models selectable for 24, 10, or 5 VDC supply (internal P+/P- switch). 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply.

Non-Volatile Memory

  • All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.

Fuse

  • Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse

Isolation

  • 4 kV input/output-to-power line, 500 V input-to-output or output-to-P+ supply

Overvoltage Category

  • Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

  • Operating Temperature Range: -40 to 150° F (-40 to 65° C)
  • Storage Temperature Range: -40 to 185° F (-40 to 85° C)
  • Relative humidity: 0 to 90% non-condensing

Connections

  • Removable and integrated screw terminal blocks accept 12 to 22 AWG wire

Enclosure

  • UL Type 4X, IP65 rated. Polycarbonate & glass blended plastic case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, black nylon threaded hole plugs with backing nuts.

Wall Mounting

  • Four (4) mounting holes provided for mounting meter to wall

Pipe Mounting

  • Optional pipe mounting kit (PDA6260) allows for pipe mounting. Sold separately.

Tightening Torque: Removable Screw Terminals

  • Digital I/O and RS485 Terminals: 2.2 lb-in (0.25 Nm)
  • Removable Screw Terminals: 5 lb-in (0.56 Nm)

Overall Dimensions

  • 10.63" x 12.59" x 4.77" (270 mm x 319.7 mm x 121.2 mm) (H x W x D) Weight: 6.10 Lbs (2.76 kg)

UL File Number

  • UL & C-UL Listed. E160849; 508 Industrial Control Equipment.

Warranty

  • 3 years parts & labor

USB Connection

  • Compatibility: USB 2.0 Standard, Compliant Connector Type: Micro-B receptacle
  • USB Port
  • Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows 7 32/64-Bit, Windows 10 32/64-Bit
  • USB A Male to Micro-B Cable
