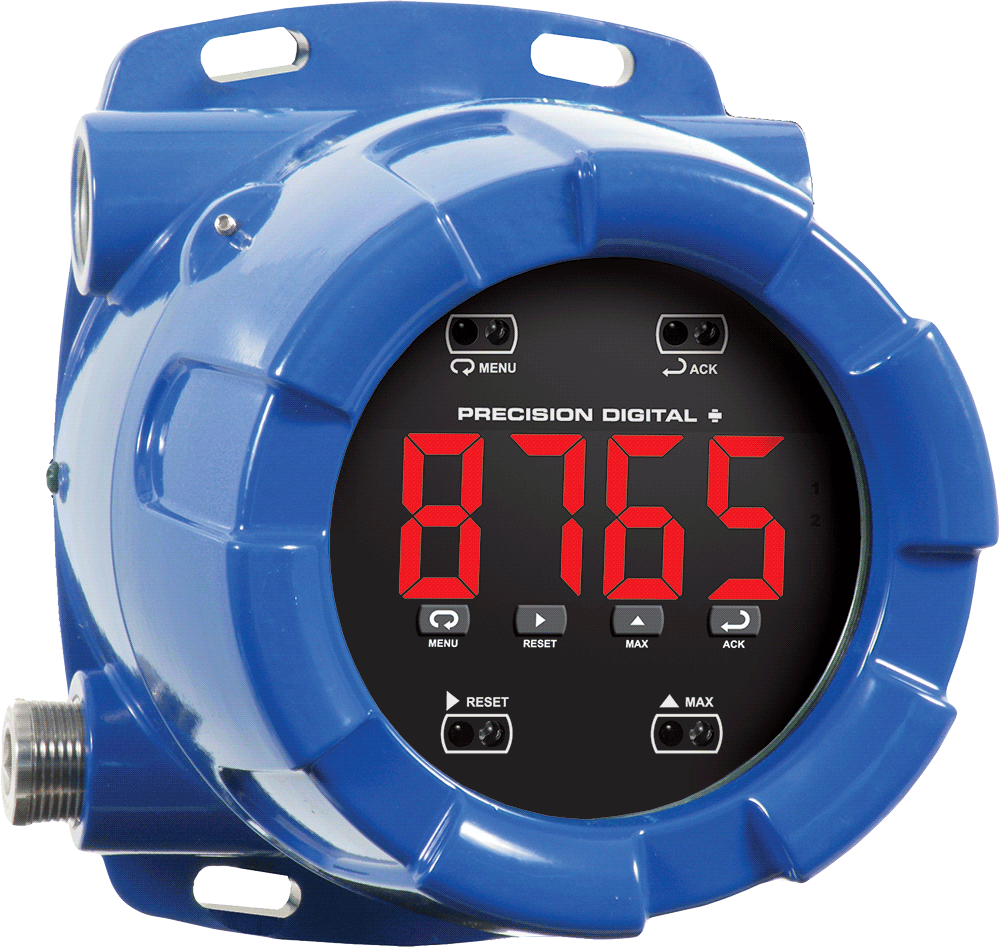

PD8-765 ProtEX-MAX Explosion-Proof Process & Temperature Meter

Brand: Precision Digital Corporation
Request a Quote
Favorite
The PD8-765 ProtEX-MAX is an explosion-proof version of the popular Trident X2 process and temperature meter. It can satisfy a wide variety of process applications.

The PD8-765 can be field programmed to accept process voltage (0-5 V, 1-5 V, etc) and current (4-20 mA) inputs, 100 Ohm RTDs, and the four most common thermocouples. It is housed in an IP68 NEMA 4X rated explosion-proof die cast aluminum enclosure and is a fully approved product carrying FM, CSA, ATEX, and IECEx approvals.

There are two power options for the ProtEX-MAX: 85 to 265 VAC or 12-36 VDC and the AC powered version can provide 24 VDC to power the transmitter if needed. Programming and setup can be performed with the four SafeTouch™ through- glass buttons, free MeterView™ software, or using the Copy function.
Features
  • Modern, Sleek and Practical Enclosure
  • Display Mountable at 0°, 90°, 180°, & 270° Degrees
  • Explosion-proof, IP68, NEMA 4X Enclosure
  • Large 1.2" 4-Digit Display
  • SafeTouch® Through-Glass Button Programming
  • Linear or Square Root with Low-Flow Cutoff
  • Operating temperature range of between -40°C and 65°C
  • Max/Min Display
  • Universal Power Supply 85-265 Vac
  • 12-36 Vdc/12-24 Vac Power Option
  • 2 Relays + 4-20 mA Output Option
  • 24 Vdc @ 200 mA Transmitter Power Supply Options
  • USB, RS-232, & RS-485 Serial Communication Options
  • Free Modbus® RTU & LabVIEW™ Driver
  • Free MeterView® Software - Configuration & Data Acquisition
  • Sunlight Readable Display
show more
The PD8-765 ProtEX-MAX is an explosion-proof version of the popular Trident X2 process and temperature meter. It can satisfy a wide variety of process applications.

The PD8-765 can be field programmed to accept process voltage (0-5 V, 1-5 V, etc) and current (4-20 mA) inputs, 100 Ohm RTDs, and the four most common thermocouples. It is housed in an IP68 NEMA 4X rated explosion-proof die cast aluminum enclosure and is a fully approved product carrying FM, CSA, ATEX, and IECEx approvals.

There are two power options for the ProtEX-MAX: 85 to 265 VAC or 12-36 VDC and the AC powered version can provide 24 VDC to power the transmitter if needed. Programming and setup can be performed with the four SafeTouch™ through- glass buttons, free MeterView™ software, or using the Copy function.
Features
  • Modern, Sleek and Practical Enclosure
  • Display Mountable at 0°, 90°, 180°, & 270° Degrees
  • Explosion-proof, IP68, NEMA 4X Enclosure
  • Large 1.2" 4-Digit Display
  • SafeTouch® Through-Glass Button Programming
  • Linear or Square Root with Low-Flow Cutoff
  • Operating temperature range of between -40°C and 65°C
  • Max/Min Display
  • Universal Power Supply 85-265 Vac
  • 12-36 Vdc/12-24 Vac Power Option
  • 2 Relays + 4-20 mA Output Option
  • 24 Vdc @ 200 mA Transmitter Power Supply Options
  • USB, RS-232, & RS-485 Serial Communication Options
  • Free Modbus® RTU & LabVIEW™ Driver
  • Free MeterView® Software - Configuration & Data Acquisition
  • Sunlight Readable Display
Close

Displaying prices & availability for Virginia, United States in USD. Change location or currency.

5 models matching criteria
PD8-765-6X0-00
PRECISION DIGITAL XP Panel Meter, 85-265 VAC Powered LED 4-Digit, 1.2" Display, 4-20 In-Put, CSA
1 - 3 weeks
$1,749.37USD
$7.95 Shipping
PD8-765-6X3-00
PRECISION DIGITAL XP Process Meter, 0-10 V, Red LED 4-Digit, 1.2" Display, 4-20 mA, CSA, FM
Out of Stock
$1,860.80USD
$7.95 Shipping
PD8-765-7X3-00
PRECISION DIGITAL XP Process Meter, 0-10 V, Red LED 4-Digit, 1.2" Display, 4-20 mA, CSA, FM
Out of Stock
$1,897.41USD
$7.95 Shipping
PD8-765-7X0-00
PRECISION DIGITAL XP Panel Meter, 12-36 VDC Powerd LED 4-Digit, 1.2" Display, 4-20 In-Put, CSA
1 - 3 weeks
$1,934.82USD
$7.95 Shipping
PD8-765-7X5-00
PRECISION DIGITAL XP Process Meter, 0-10 V, Red LED 4-Digit, 1.2" Display, 2 Relays, 4-20 mA, CSA, FM
Out of Stock
$2,051.81USD
$7.95 Shipping
Close
Close

Specifications

Brand

Accuracy

  • ± 0.05%

Approvals & Certifications

  • ATEX, II 2 GD Ex D IIC T* Gb Ex Tb IIIC T90° C Db
  • CSA Class I, Division 1, Groups B, C, D, Class II, Division 1, Groups E, F, G Class III, Division 1, Class I, Zone 1 Ex D IIC Zone 21 Ex Tb IIIC T90° C
  • FM Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Class III, Division 1, T5/T6 Class I, Zone 1, AEx D, IIC Gb T5/T6 Zone 21, AEx Tb IIIC T90° C
  • IEC Ex D IIC T* Gb Ex Tb IIIC T90° C Db

Communication

  • Modbus

Display

  • 4-Digit LED

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X
  • NEMA 7
  • NEMA 9

Input

  • ± 10 VCD
  • 0-20 mA
  • 4-20 mA

Operating Temperature

  • -40° to 65° C (-40° to 150° F)

Power Supply

  • 12-36 Vdc
  • 85-265 Vac

Resolution

  • 1°
