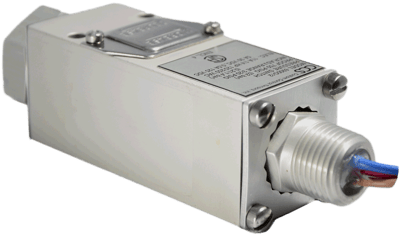

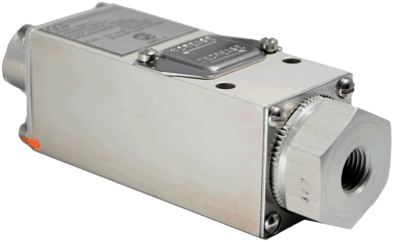

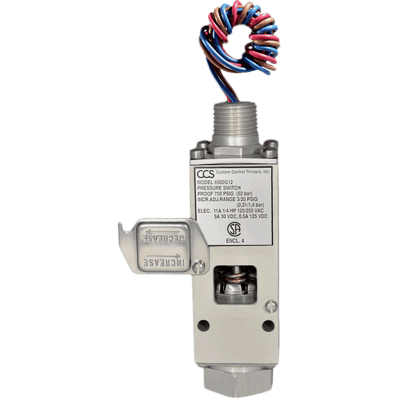

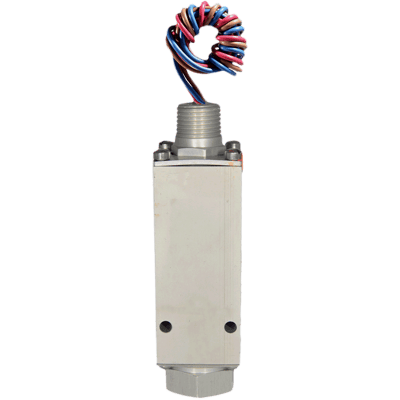

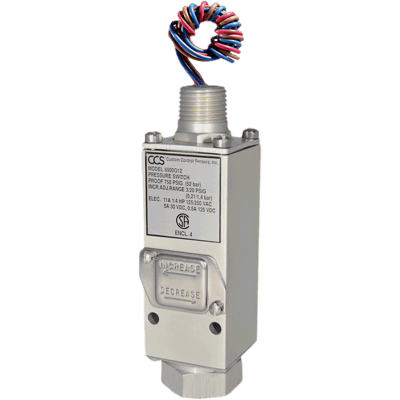

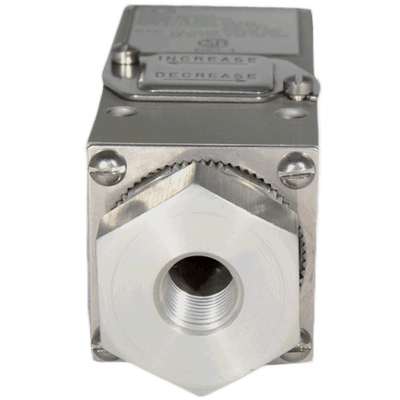

Images are representations only.

6900G24

Series: 6900G Series Pressure Switch Brand: Custom Control Sensors, LLC

CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N

Price
Request a Quote
Stock
Limited Stock
Does not ship to OH, United States
Request Information
Description
  • Adjustable Set Point Range
    • Increasing
      • psig  1800 - 3400
      • kPa   12,410.6 - 23,442.15
      • bar    124 - 234
    • Decreasing
      • psig  1580 - 3180
      • kPa   10,480.0 - 21,511.6
      • bar    109 - 219
  • Deadband - Approximate: 220 psi, 1516 kPa, 15.2 bar
  • System Pressure - Maximum: 5000 psig, 34,473.75 kPa, 345 bar
  • Proof Pressure: 7500 psig, 51,710.63 kPa, 517 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • CSA, CRN, CE Mark, General Purpose
  • Adjustable Set Point Range
    • Increasing
      • psig  1800 - 3400
      • kPa   12,410.6 - 23,442.15
      • bar    124 - 234
    • Decreasing
      • psig  1580 - 3180
      • kPa   10,480.0 - 21,511.6
      • bar    109 - 219
  • Deadband - Approximate: 220 psi, 1516 kPa, 15.2 bar
  • System Pressure - Maximum: 5000 psig, 34,473.75 kPa, 345 bar
  • Proof Pressure: 7500 psig, 51,710.63 kPa, 517 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • CSA, CRN, CE Mark, General Purpose
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN - Canadian Registration Number
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • LVD
  • PED
  • RoHS

Deadband, Approximate

  • bar: 0.14 to 15.2
  • kPa: 13.8 to 1,517
  • psi: 2 to 220

Diaphragm Material

  • Hastelloy C-276
  • Monel
  • Polyimide
  • Stainless Steel

Electrical - Free Leads

  • 18" (45 cm) Free Leads
  • 18" (45 cm) Teflon Leadwire

Electrical Certification

  • CSA Listed by Canadian Standard Association (CSA) Testing Laboratories (File LR22665) for Enclosure

Electrical Connectors

  • 1/2" NPT Male
  • Electrical Connector with 4-Blades, Conforms to DIN-43650
  • Electrical Connector with Gold Contacts & Blades, Conforms to DIN-43650

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

NPT Connection

  • 1/2" NPT Female Welded Diaphragm - Internal with Port Cavity
  • 1/4" NPT Female

O-Ring Material

  • Buna-N
  • Ethylene Propylene (EPR)
  • None
  • Viton

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

Process Connection Material

  • 316 Stainless Steel
  • Aluminum
  • Hastelloy C-276
  • Monel

Proof Pressure

  • bar: 51.7 to 310
  • kPa: 5,171 to 31,026
  • psig: 750 to 4,500

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.07 to 219
  • kPa: 6.9 to 21,925
  • psig: 1 to 3,180

Set Point - Increasing

  • bar: 0.21 to 234
  • kPa: 20.7 to 23,442
  • psig: 3 to 3,400

Standard Features

  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 34.5 to 207
  • kPa: 3,447 to 20,684
  • psig: 500 to 3,000
Close
