Images are representations only.

PT-500B-5-PSI-G-L1-E0-P1-15-N0-AC2

Series: PT-500 Pressure Transmitter Brand: Automation Products Group - APG

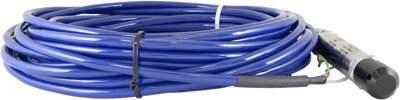

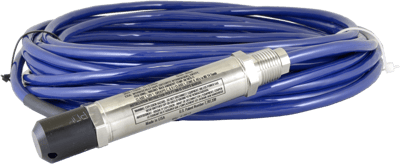

APG PT-500 Submersible Transducer, 0-5 psi, 15-ft Cable, 1/2" MNPT with Delrin Cap, 4-20 mA

Price
$788.19USD
Stock
2 In Stock
  • PT-500: Submersible Liquid Level Transducer

    • B: Cable Type: Hytrel .31” Ø - Black (with vent tube)

  • 5-PSIG: Pressure Range: 0 to 5 PSI, Gauge Pressure
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P1: Process Connection: 1/2” NPTM with removable plastic nose cone
  • 15: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Cable: Hytrel
    • Protective Cone: Delrin

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group II
  • PT-500: Submersible Liquid Level Transducer

    • B: Cable Type: Hytrel .31” Ø - Black (with vent tube)

  • 5-PSIG: Pressure Range: 0 to 5 PSI, Gauge Pressure
  • L1: Output: 4-20 mA
  • E0: 1/2” NPTM fitting for conduit, with pigtail
  • P1: Process Connection: 1/2” NPTM with removable plastic nose cone
  • 15: Cable Length in Feet
  • N0: ±0.25% Accuracy
  • AC2: Gore Patch Filter
  • Supply Voltage: 10-28 VDC
  • Temperature Range: Compensated: -17°C to +54°C (+0°F to +130°F)
  • Materials of Construction:
    • Housing: 316L Stainless Steel
    • Cable: Hytrel
    • Protective Cone: Delrin

  • CSA Exia Class I, Division I; Groups C,D T4. Class I, Zone 0, Group II

Specifications

Accuracy

  • ≤ 0.5 % BFSL

Approvals & Certifications

  • CSA Class I, Division 1, Groups C, D

Compensated Temperature

  • -17° to 54° C (0° to 130° F)

Display

  • None

Electrical Connectors

  • Waterproof Pigtail with Overmolded Cable

Enclosure, Body Material

  • Delrin Cone

Input Power

  • Vdc: 10-28

Maximum System Pressure

  • Submersible up to 450 feet (137 m)

NPT Connection

  • 1/2" NPT Male

Output

  • 0-10 Vdc
  • 0-5 Vdc
  • 4-20 mA

Pressure Range

  • bar: 0.07 to 20.68
  • kPa: 6.7 to 2,068
  • psi: 1 to 300

Reverse Polarity Protection

  • Protected Against Reverse Polarity, Surge, Per IEC 61000-4-5

Span & Zero Effect

  • ≤ 0.025 % of Full Scale Output/°F at 21° C (70° F)

Tri-Clamp Connection

  • 1-1/2" Tri-Clamp

Wetted Materials

  • 316L Stainless Steel
