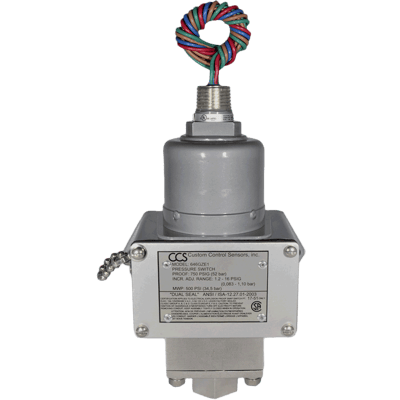

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, 2m Leads
Price
$1,924.22USD
Stock
5 - 7 weeks
Does not ship to United States
Description
- Adjustable Set Point Range:
- Increasing: 1.2 to 16 psig, 8.2 to 110.3 kPa, 0.08 to 1.1 bar
- Decreasing: 0.4 to 15.2 psig, 2.8 to 103.4 kPa, 0.03 to 1.04 bar
- Deadband: Approximately 1.0 psi, 6.98 kPa, 0.7 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 35 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 52 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- Leads: 2 Meter Free Leads
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
Description
- Adjustable Set Point Range:
- Increasing: 1.2 to 16 psig, 8.2 to 110.3 kPa, 0.08 to 1.1 bar
- Decreasing: 0.4 to 15.2 psig, 2.8 to 103.4 kPa, 0.03 to 1.04 bar
- Deadband: Approximately 1.0 psi, 6.98 kPa, 0.7 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 35 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 52 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- Leads: 2 Meter Free Leads
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
Product Series Specifications
Specifications
Adjustment Type
- Field Adjustable
Approvals & Certifications
- ATEX
- CE
- CRN
- CRN - Alberta
- CRN - British Columbia
- CRN - Manitoba
- CRN - N.W. Territories
- CRN - Saskatchewan
- CSA
- cUL
- Dual Seal
- EMC
- LVD
- PED
- RoHS
- RTN
- UL
Deadband, Approximate
- bar: 0.07 to 33.1
- kPa: 6.9 to 3,309
- psig: 1 to 480
Diaphragm Material
- Stainless Steel
Electrical - Free Leads
- 18” (45 cm) Free Leads
- 18” (45 cm) Teflon Leadwire
Electrical Assembly
- Hermetic Seal
Electrical Certification
- ATEX - Baseefa Certified for Potentially Explosive Atmospheres. Models 646**Y, II 2 GD Ex d IIC, Ex Tb IIIC, Baseefa 05-ATEX-0011X. (Option Y)
- c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 17-51 (17-73 for M Model Option), Listed by Both Underwriter’s Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA)Testing Laboratories (File No. L
Electrical Connectors
- 1/2” NPT Male
Electrical Contacts
- Gold
- Silver
Electrical Rating
- 1 A at 125 Vac, 50/60 Hz
- 11 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc
- 15 A at 125/250/480 Vac Resistive, 0.2 A at 250 Vdc
Enclosure, Body Material
- Aluminum
Environmental Protection
- Hazardous Area
- IP54
- IP66
- NEMA 13
- NEMA 4, 7, 9, 13 / IP54, 66
- NEMA 7
- NEMA 9
NACE & NIST
- NACE MR-0175: 2003
NPT Connection
- 1/2” NPT Female
O-Ring Material
- Ethylene Propylene (EPR)
- Viton
Operating Temperature
- -40° to 86° C (-40° to 187° F)
Process Connection Material
- 316 Stainless Steel
Proof Pressure
- bar: 51.7 to 517
- kPa: 5,171 to 51,711
- psig: 750 to 7,500
Service
- Sour (Oil & Gas)
Set Point - Decreasing
- bar: 0.03 to 312
- kPa: 2.8 to 31,164
- psig: 0.4 to 4,520
Set Point - Increasing
- bar: 0.09 to 345
- kPa: 9.7 to 34,473.7
- psig: 1.4 to 5,000
Switch Type
- DPDT
- SPDT
System Pressure
- bar: 34.5 to 345
- kPa: 3,447 to 34,474
- psig: 500 to 5,000
