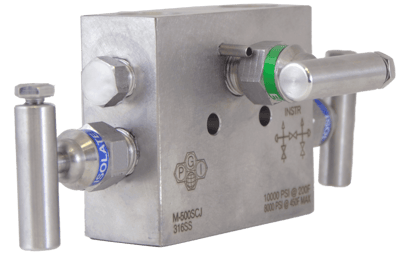

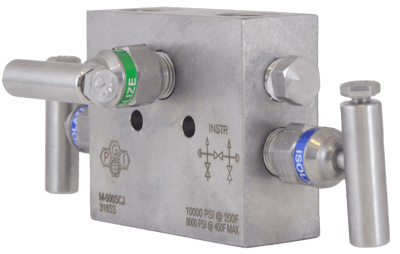

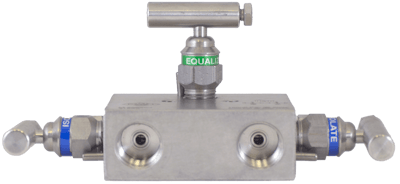

Images are representations only.

M-675-SDJ

Series: M-500 Three-Valve Manifold Brand: Parker PGI

PGI 5-Valve Manifold, 1/2" FNPT x Flange, NACE, Wide Body

Price
$797.39USD
Stock
Out of Stock
Request Information
  • M: Manifold Style
  • 675: Wide Pattern Five Valve Differential Pressure Manifold,
    • 1/2" NPT Female (Process) x Flange (Instrument) x 1/4" NPT Female (Vent)

  • S: ASTM A276-316 Body & Bonnet
    • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36

  • D: Acetal Resin (Standard) Seat Material
  • J: Low-Temp Pressure-Core™ Stem Seal
  • Standard Features:
    • Teflon Packing/Seal
    • Max Pressure 6000 psi @ +200°F (+93°C)

  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating

  • M: Manifold Style
  • 675: Wide Pattern Five Valve Differential Pressure Manifold,
    • 1/2" NPT Female (Process) x Flange (Instrument) x 1/4" NPT Female (Vent)

  • S: ASTM A276-316 Body & Bonnet
    • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36

  • D: Acetal Resin (Standard) Seat Material
  • J: Low-Temp Pressure-Core™ Stem Seal
  • Standard Features:
    • Teflon Packing/Seal
    • Max Pressure 6000 psi @ +200°F (+93°C)

  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating

Close

Specifications

Brand

Enclosure, Body Material

  • ASTM A479-316 Stainless Steel

Handle Assembly Material

  • ASTM A581 18-8 300 Stainless Steel

Maximum Cv Ratings

  • Cv 0.53 on 0.187” Orifice

NACE & NIST

  • NACE MR-0175, ISO 15156-36

NPT Inlet

  • 1/2” NPT Female

NPT Outlet

  • 1/2” NPT Female

Orifice Size

  • 0.187”

Packing Material

  • Teflon
  • Teflon Pressure-Core Stem Seal for Low Temperatures -45.5° C (-50° F)

Pressure Rating

  • psi: 10,000 at 93° C (200° F)
  • psi: 8,000 at 232° C (450° F)

Process Temperature

  • -45° to 232° C (-50° to 450° F)

Seal Retainer

  • ASTM A479-316 Stainless Steel

Seat / Seal Material

  • Carbide

Stem Material

  • ASTM A479-316 Stainless Steel

Valves

  • Three
Close
